FANUC Series 16i/18i-MB, 18i-MB5
TILTED WORKING PLANE COMMAND
Enhancement in tool axis direction control Specification
A
-79310E
2004.1.21
8
/
12
(3) The case that the table moving angle is smaller and the movement range is
specified (1):
(PRM19608#5=0, PRM19741=355.0, PRM19742=5.0, PRM19743=0,
PRM19744=0)
"Output angles": (Tool rotation axis 330.0, Table rotation axis 90.0)
The computed angle of table rotation axis that is nearest to the
current angle is adopted first. Then, among the computed angles
of tool rotation axis that are paired with that angle, one that is
nearest to the current angle within the specified range is adopted.
0
360
0
360

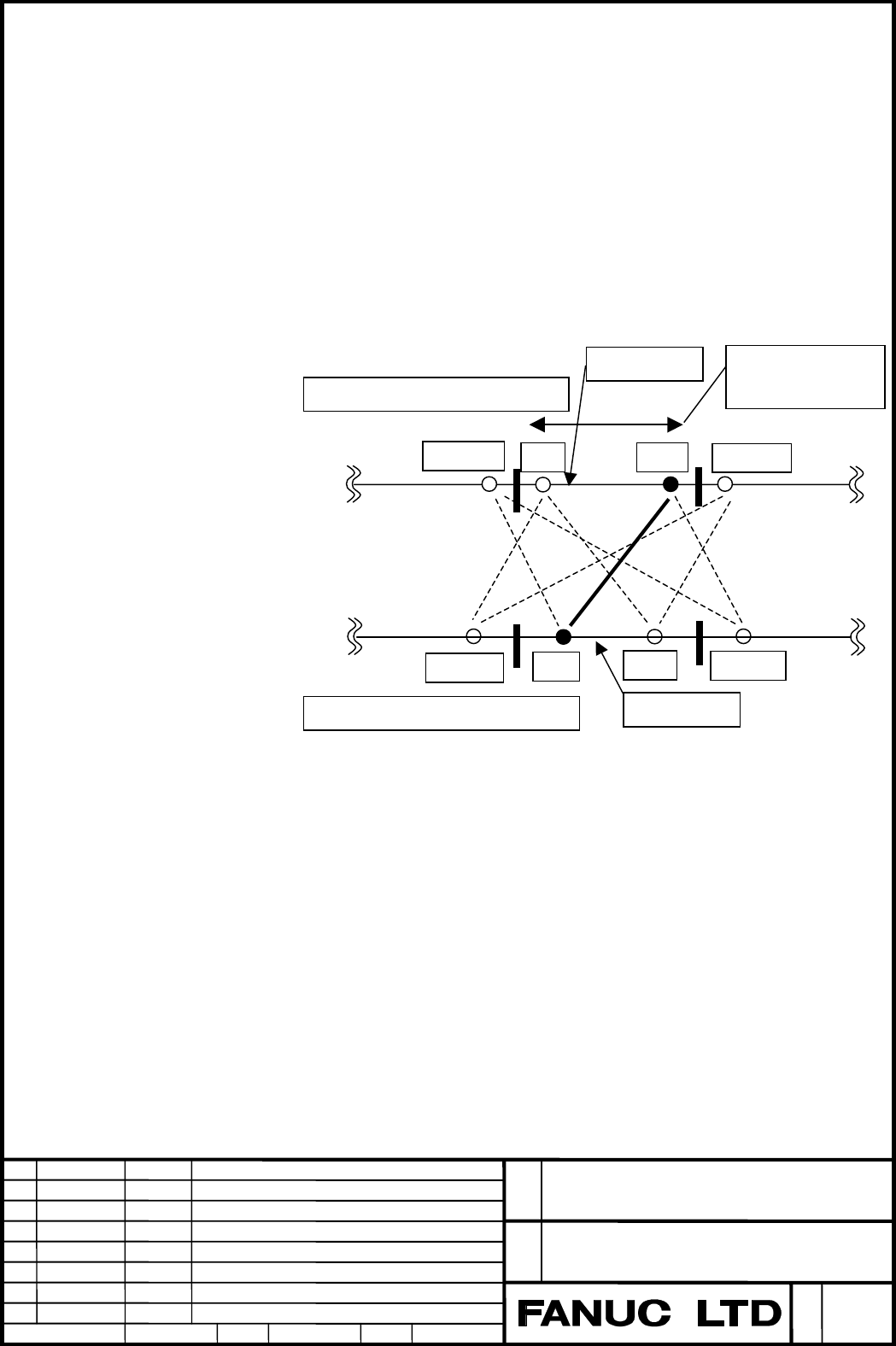

The computed angle
within this range
is adopted.
Computed angles of tool rotation axis
Computed angles of table rotation axis
Current angle
Current angle
330-360
30 330
30+360
90
270
270-360
90+360
