B-63322EN-2/01 12. CUSTOMER'S BOARD MANIPULATION
- 59 -
12.2.1 Monitor Function
•
••
• Overview
The monitor function displays the following data:
• Input/output signals (G180 to G187/F180 to F187)
• Diagnostic data
• Data transfer control flag
Monitor function display and manipulation
To display the CUSTOMER'S BOARD (MONITOR) screen, press the
function menu key, and then press the [CUSTOM BOARD] soft key.
Next, press the Chapter key and then the [MONITOR] soft key.

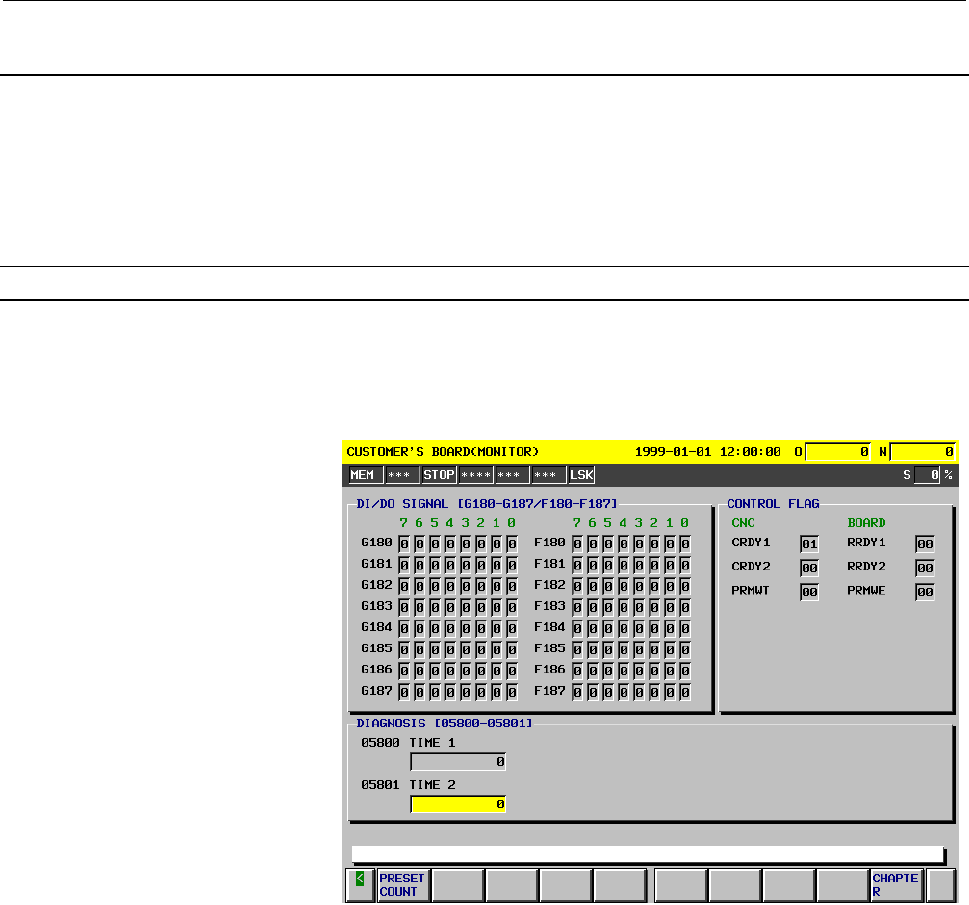

Fig. 12.2.1 (a) CUSTOMER'S BOARD (MONITOR) screen
•
••
• DI/DO SIGNAL
These boxes display the input/output signals (G180 to G187/F180 to
F187) dedicated to the customer's board.
•
••
• DIAGNOSIS
These boxes display diagnostic data values.
TIME 1 displays the processing time for task No. 2 (in
µ
s units).
TIME 2 displays the peak processing time for task No. 2 (in
µ
s units).
TIME 2 can be preset by pressing soft key [COUNTER PRESET].
