  2. Series 30i-MODEL A, Tool management function oversize tools support Specifications

Series 30i-MODEL A, Tool management function oversize tools support Specifications Additional Manual Page 16

Additional Manual
A-79346E
Title
Draw
No.
Ed. Date Design Description
Date
Jan.06.’04 Design. Apprv.
14/22
page
FANUC Series 30i-MODEL A
Tool management function oversize
tools su
pp
ort

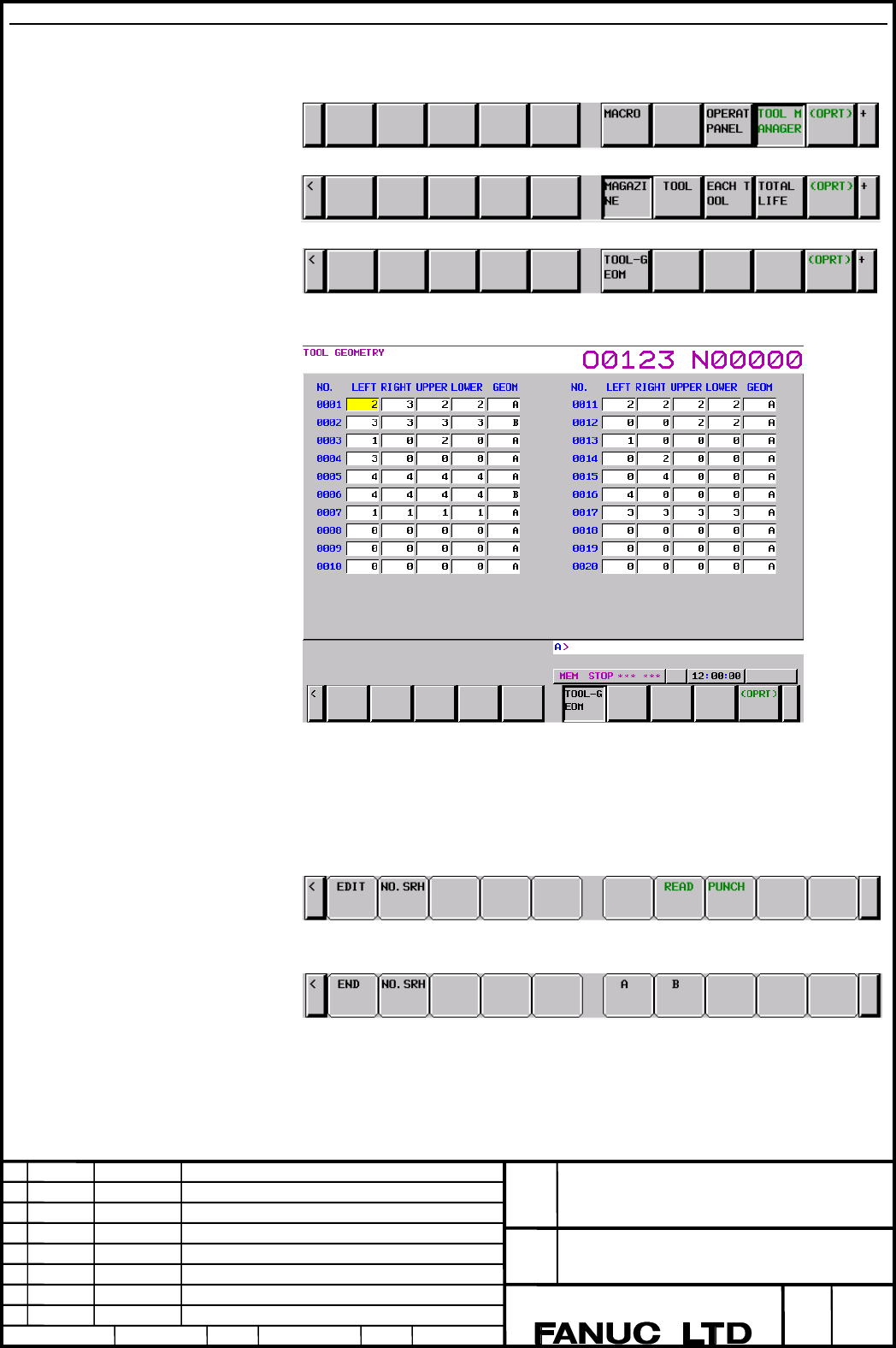

Screen configuration
Tool figure setting screen
Press the function key OFFSET/SETTING then select the [TOOL MANAGER] soft key.
Press the [+] soft key.
Press the [TOOL-GEOM] soft key.
The following screen is displayed:
・Before data can be edited, the [EDIT] soft key must be selected to switch to the edit mode.
In the edit mode, the word "EDITING" is displayed in the lower-right corner of the screen.
・When moving the cursor to the data of a desired tool figure number, input the tool figure
number into the key-in buffer then press the [No. SRH] soft key.
・With the [READ] or [PUNCH] soft key, tool figure data can be read or punched.
・When the cursor is placed on the figure edit box, the following soft keys are displayed:
