Series 16i / 18i Additional Manual Page 3
Additional Manual
Z0→[MEASUR]
The value of workpiece origin offset for Z-axis is calculated so that absolute
coordinate value of a tool tip is set to “0” by considering actual tool length offset.
Therefore, the workpiece origin offset(G54(Z)) and absolute position(Z) becomes the
following results.
Actual workpiece origin offset(G54(Z))
= 60.0 (Machine position of tool origin point)
-30.0 (Actual tool length offset value)
-0.0 (Absolute position of input value)
= 30.0
Actual position : Absolute(Z)＝0.0 (When parameter DAL(No.3104#6)=1.)
Machine(Z)=60.0

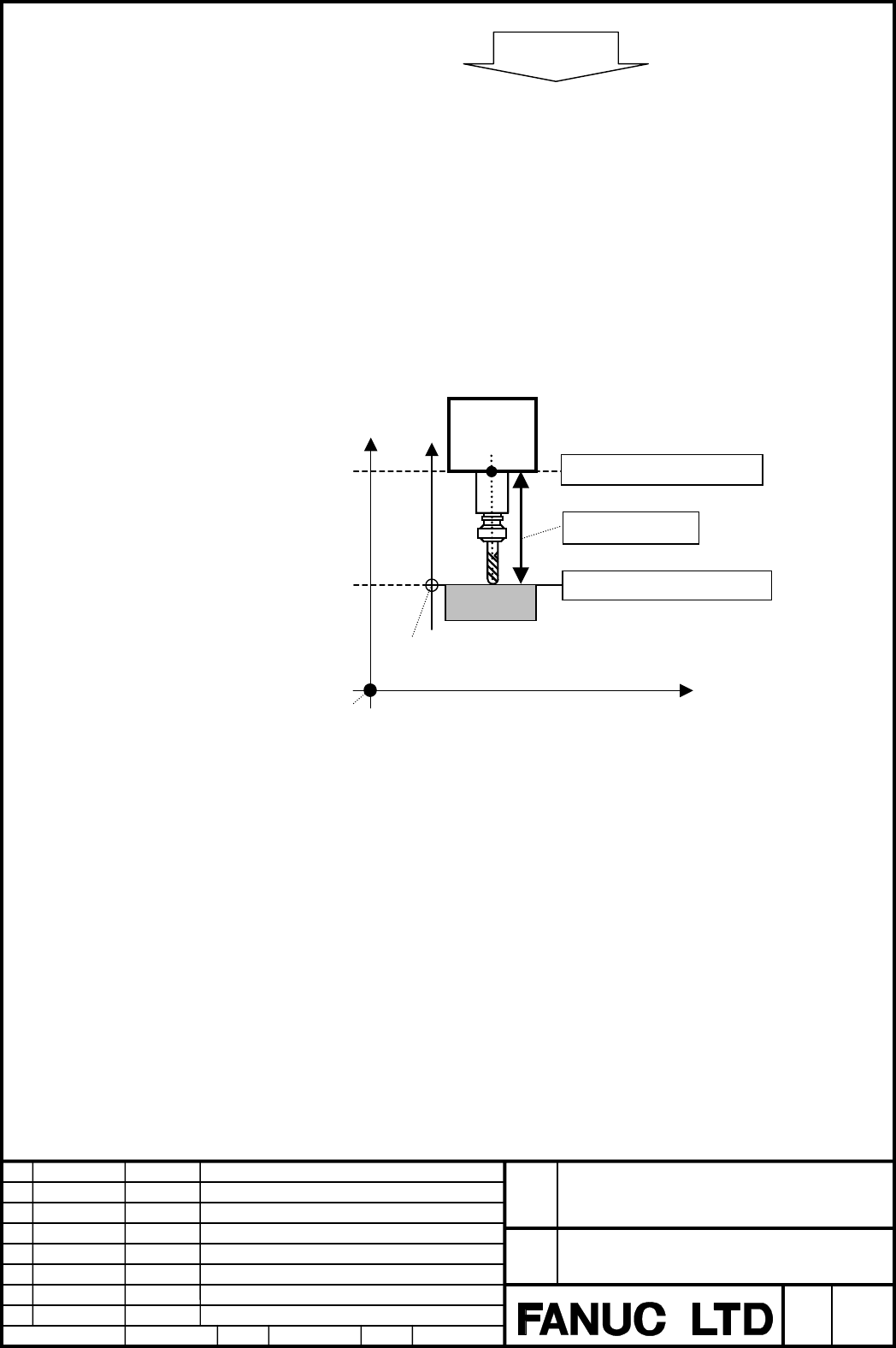

Machine
ori
g
in
G54 of after direct input of
measured workpiece origin offsets
Tool length = 30.0
Z30
Z0
Z60
Z-
p
osition of tool ti
p
p
oint
Z30
Workpiece
Z0
Z-position of tool origin point
Edit
Apprv. Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FS 16i/18i– MB, 18i– MB5, 21i– MB
Improvement of Direct input of measured
workpiece origin offsets Specification
June.16.2004
02 2004/07/29 T.Mochida 2) part is added E.Genma
T.Mochida
E.Genma
3/5
A-79632EN
