Series 21i/210i - MB Operators manual Page 459

Operators manual
OPERATION
B–63614EN/01
2. OPERATIONAL DEVICES
435

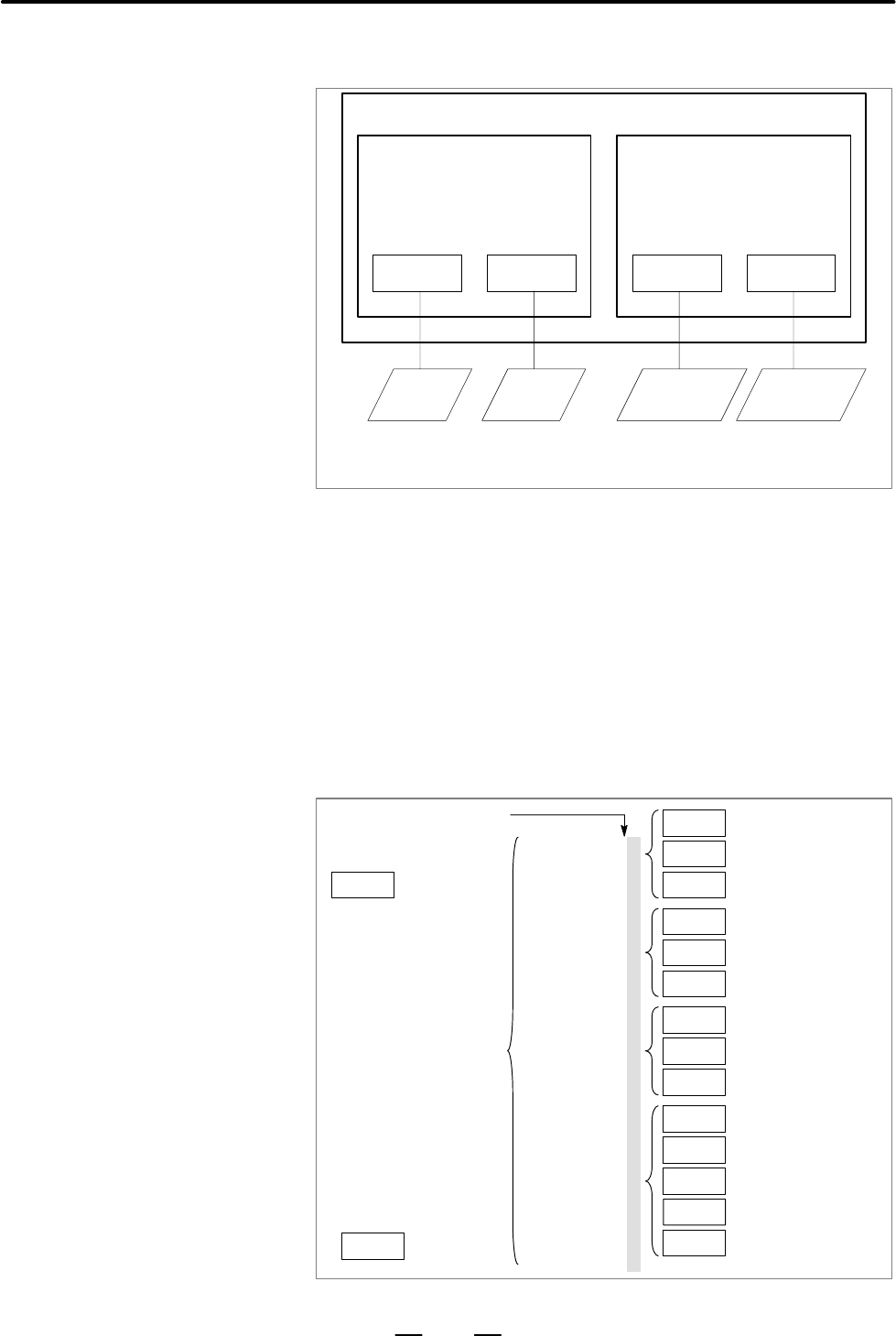

Before an external input/output device can be used, parameters must be
set as follows.
CNC
MOTHER BOARD OPTION–1 BOARD
Channel 1 Channel 2 Channel 3
JD5A JD5B
RS–422RS–232–CRS–232–C
JD5C JD6A
RS–232–C
Reader/
puncher
Host
computer
Host
computer
Reader/
puncher
I/O CHANNEL=0
or
I/O CHANNEL=1
I/O CHANNEL=2
I/O CHANNEL=3 I/O CHANNEL=3
CNC has three channels of reader/punch interfaces. This CNC has three
channels of interfaces (reader/punch and remote buffer interfaces). It also
has a memory card interface. The input/output device to be used is
specified by setting the channel (interface) connected to that device in
setting parameter I/O CHANNEL.
The specified data, such as a baud rate and the number of stop bits, of an
input/output device connected to a specific channel must be set in
parameters for that channel in advance. (This is not necessary for the
memory card interface.)
For channel 1, two combinations of parameters to specify the input/output
device data are provided.
The following shows the interrelation between the reader/punch interface
parameters for the channels.
0020
I/O CHANNEL
Specify a channel for an
input/output device.
I/O CHANNEL
= 0 : Channel 1
= 1 : Channel 1
= 2 : Channel 2
= 3 : Channel 3
I/O CHANNEL=0
(channel 1)
0101
Stop bit and other data
0102
Number specified for
the input/output device
0103
Baud rate
I/O CHANNEL=1
(channel 1)
0111
Stop bit and other data
0112
Number specified for
the input/output device
0113
Baud rate
I/O CHANNEL=2
(channel 2)
0121
0122
0123
I/O CHANNEL=3
(channel 3)
0131
0132
0133
0134
Selection of protocol
0135
Selection of RS–422
or RS–232C, and
other data
Input/output channel
number (parameter
0020)
Parameter
Number
Stop bit and other data
Number specified for
the input/output device
Baud rate
Stop bit and other data
Number specified for
the input/output device
Baud rate
Memory card
interface=4
Parameter
