MAINTENANCE1. METHOD OF REPLACING BATTERY

B–63614EN/01

734

The battery is connected in either of 2 ways as follows.

Method 1: Attach the lithium battery to the SVM.

Use the battery: A06B–6073–K001.

Method 2: Use the battery case (A06B–6050–K060).

Use the battery: A06B–6050–K061 or D–size alkaline battery.

Method Item Ordering specification

Method 1 Battery (Lithium battery) A06B–6073–K001

Method 2 Battery (4 pieces of D–size alkaline

battery)

A06B–6050–K061

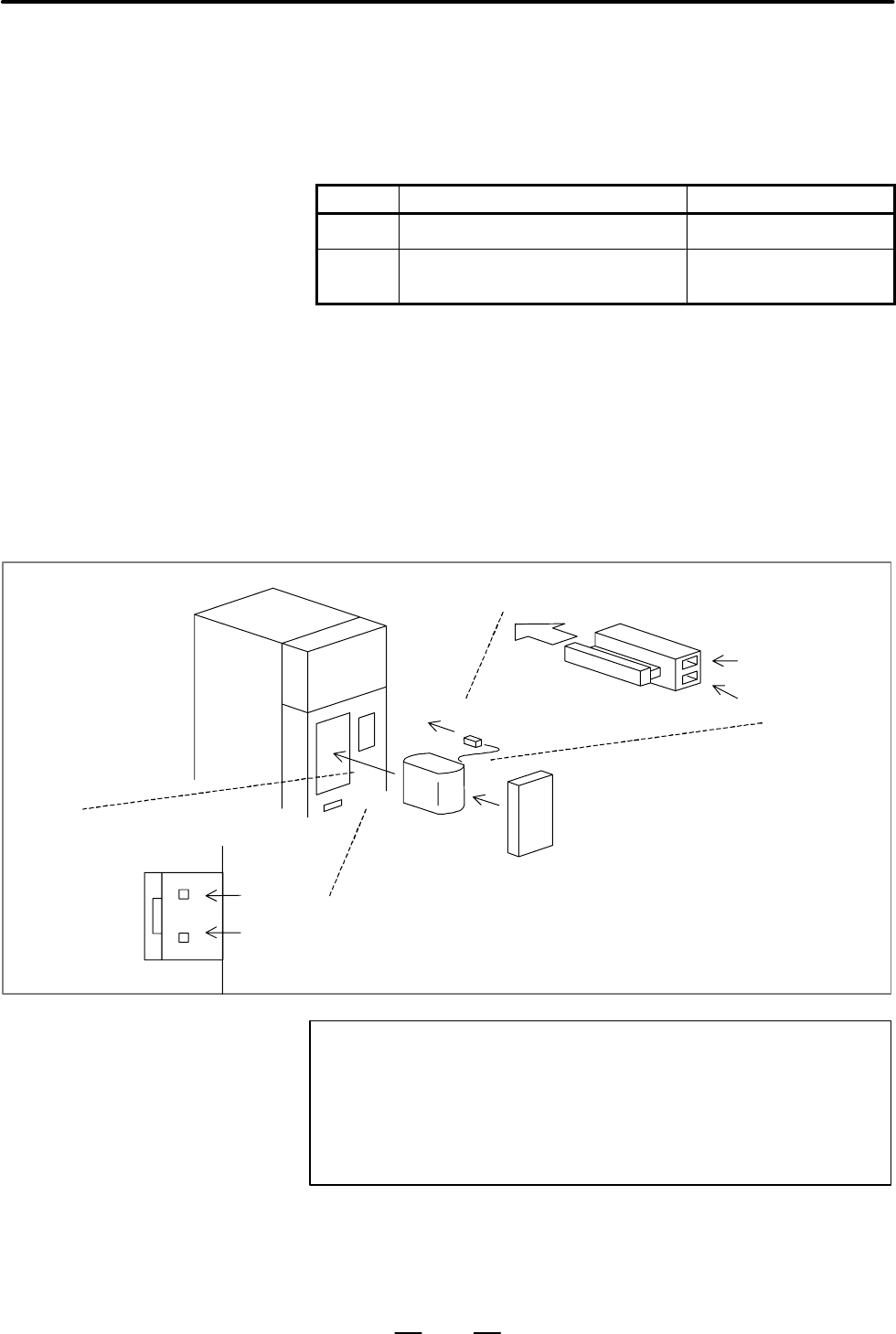

D Attach the lithium battery to the SVM. (Method 1)

Built the lithium (A06B–6073–K001) battery in the SVM.

[Attachment procedure]

(1)Check the item 1 to 4 of ”Replacement procedure”.

(2)Remove a battery cover from SVM.

(3)Attach the battery as shown below.

(4)Re–attach the cover.

(5)Connect the connector of battery with CX5X or CX5Y of SVM.

Battery

SVM

Battery cover

Inserting way

Red: +6V

Black: 0V

CX5X, CX5Y

+6V

Connector

Cable side

CAUTIONS

D The connector of the battery can be connected with either

of CX5X and CX5Y.

D Pay attention that the battery cable doesn’t have a stretch

condition. If this cable is connected on a stretch condition,

a bad conductivity may be occurred.

D Replacement of batteries in the battery case. (Method 2)

Replace four D–size alkaline batteries in the battery case installed in

the machine.

SERVO AMPLIFIER a

series (SVM)
