1.1.1 Speed control based on changes to acceleration for each axis
Vibration or shocks may occur to the machine in portions
where there is a large change to acceleration, for example, a
portion where the shape specified by the machining program
changes from a straight line to a curved line.
To reduce machining error that may result from vibration or
shocks to the machine when the acceleration changes, speed
control based on changes to acceleration for each axis reduces
the tool speed at acceleration/deceleration before
interpolation by obtaining a feed rate that can keep
acceleration changes from exceeding the permissible
acceleration change level set in parameters for each axis.

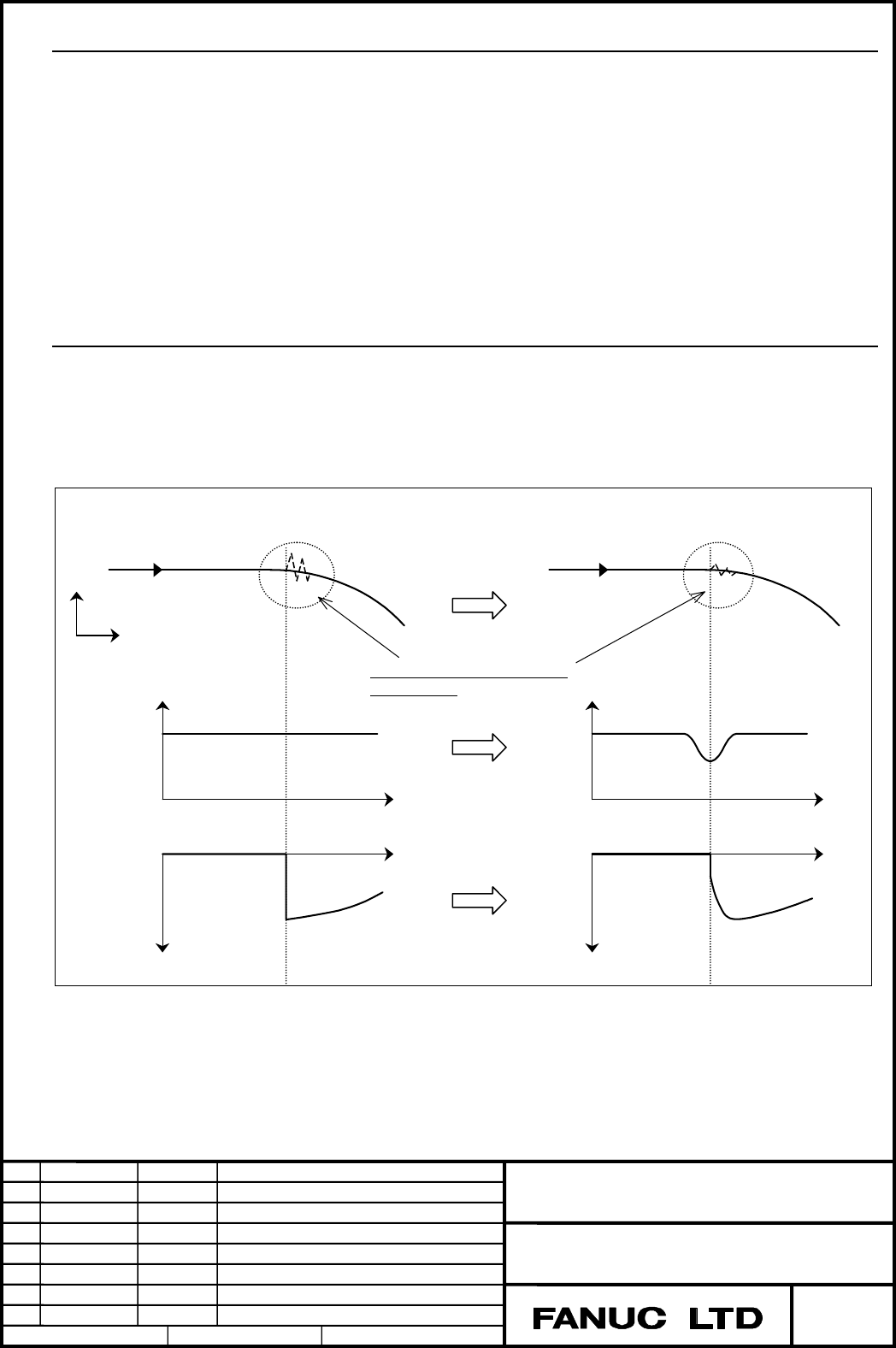

Example
The following example performs deceleration at a point of
tangency between linear interpolation and circular
interpolation because there is a large changes to acceleration
along the Y-axis.
Linear interpolation (N1) → circular interpolation (N2)
Y
X
Vibration due to changes to
acceleration
N1
N2
Tangential
speed
Y-axis
acceleration
Speed
Time
N1
N2
Time
Speed
A
cceleration
Time
A
cceleration
Time
Setting a permissible acceleration change level
Parameter No. 1788 (AICC or AI nanoCC) or No.19522
(AI-HPCC or AI-nanoHPCC) is used to set a permissible
acceleration change level for each axis. The permissible
acceleration change level is a rate per ms. If a parameter
Previous page
Next page
