FS 16i Additional Manual Page 8

Additional Manual
2002/03/20 T.Horie
A-78672EN
FANUC Series 16i-MB
Jerk Control Specifications
Title
Drawing No.
Page
Descri
p
tionDate Edit
7/15

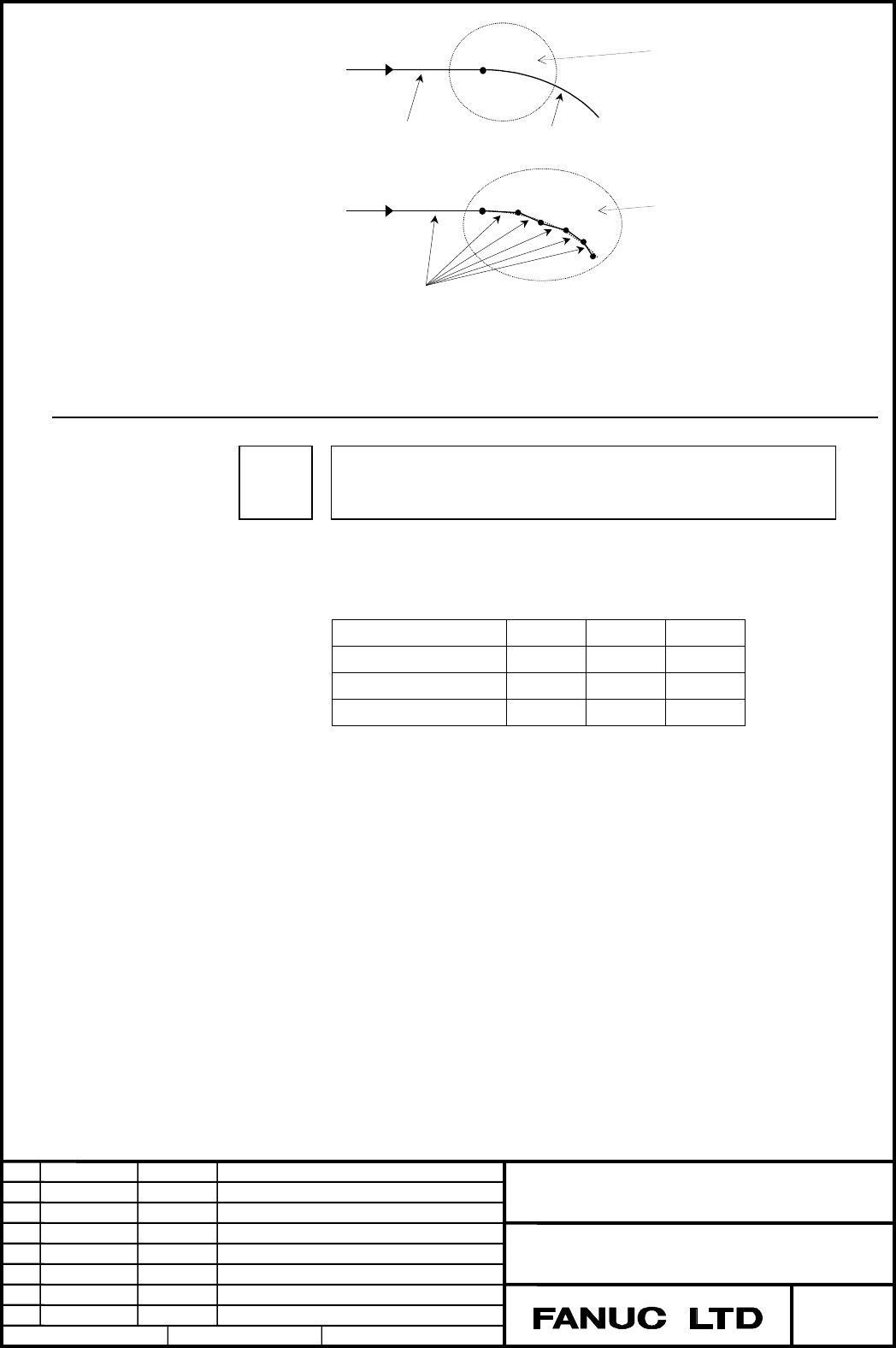

In transition of linear interpolation R
circular interpolation, speed control
is performed based on a permissible
acceleration change level set in
parameter No. 1788 (AICC or AI
nanoCC) or No.19522 (AI-HPCC or
A
I-nanoHPCC)is effective.) .
Linear
interpolation
Circular
interpolation
If linear interpolation is repeated,
speed control is performed based on
a permissible acceleration change
level set in parameter No. 1789
(AICC or AI nanoCC) or No.19523
(AI-HPCC or AI-nanoHPCC).
Linear
interpolation
Parameter
1788 Permissible acceleration change level for each axis in speed control based
on acceleration changes for jerk control in AI contouring control (AICC) or AI
nano contouring control (AI nanoCC)
[Input type] Parameter input
[Data type] 2 word axis
[Unit of data]
Increment system IS-B IS-C 単位
Millimeter –machine 0.001 0.0001
2
/ smm
Inch-machine 0.0001 0.00001
2
/ sinch
Rotation axis 0.001 0.0001
2
deg/ s
[Valid data range] 0 to 99999999
Specify a permissible acceleration change level per ms for
each axis in speed control based on acceleration changes
under jerk control for AI contouring control (AICC) or AI
nano contouring control (AI nanoCC).
For an axis for which this parameter is 0, speed control based
on acceleration changes is ineffective.
If the parameter is 0 for all axes, speed control based on
acceleration changes is not performed at all.
