Constant-acceleration-time Acceleration/Deceleration for Interpolation-type Positioning Additional Manual Page 2
Additional Manual
Edit
A-77436E
FANUC Series 16
i
/18
i
/21
i
Constant-acceleration-time-manner
Acceleration/deceleration for Interpolation-type
2/4
Title
Drawin
g
No.
Pa
g
e
Data Si
g
nature Descri
p
tion
1998/10/2
1. Outline
This function enables acceleration/deceleration for interpolation-type positioning
(parameter No. 1401#1 LPOS = 1) in constant-acceleration-time manner.
As a result, positioning is performed more exactly along the programmed path.
2. Specification
When positioning from the point A to B in interpolation-type setting (parameter No.
1401#1 LPOS = 1), the command pulses distribution to each axis vary as follows
depending on the acceleration/deceleration manners. (constant-acceleration-rate, which
is conventional VS constant-acceleration-time)

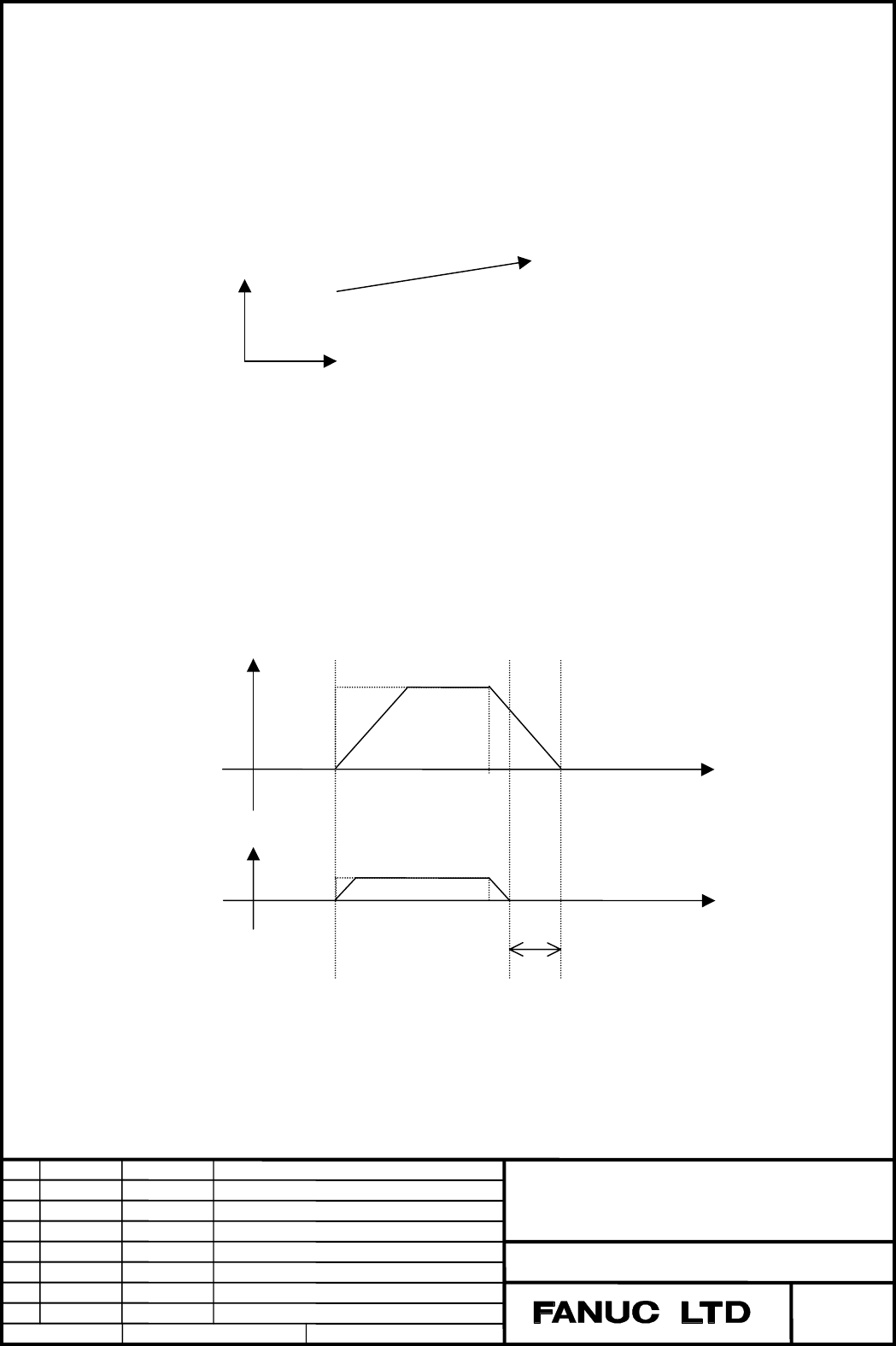

i) Constant-acceleration-rate:
In the case that the acceleration rates for X and Y axes are the same.
Command pulses distribution for each axis is finished with the deviation time of “b”
while it should be at the same time.
This results in a big deviation of actual positioning path from the programmed path by
constant-acceleration-rate acceleration/deceleration after interpolation.
A
B
X
Y
Feedrate
b
X-axis
Y
-axis
Tim
Tim
