When the tool posture can be near Singular posture in a block, the rotary axes
positions at the block end, which are calculated by the tool posture at the block
end with I,J,K, are changed as follows :
Tool side rotary axis : Reversed from the singular angle.
Ex. : When the axis position was 60deg at the
block end and the singular angle(positon)
was 20deg, the axis position at the block
end is changed to -20deg(=2*20 -60).
Work-piece side rotary axis :Same with the rotary axis at the start of the
block
Ex. : When the axis position was 30deg at the
block end and -150deg at the block start,
the axis position at the block end is changed
to -150deg.
As the result, the tool posture passes the singular posture during the block.
If the following difference between the position before the change and the
position after the change of Work-piece side rotary axis is larger than the
parameter No.19739, the change is not done.
|<Position before the change> - <Position after the change +/-180deg>|
And, in accordance with the parameter NPC (No.19696#3), the program is done
without the change or the alarm P/S5421 occurs.

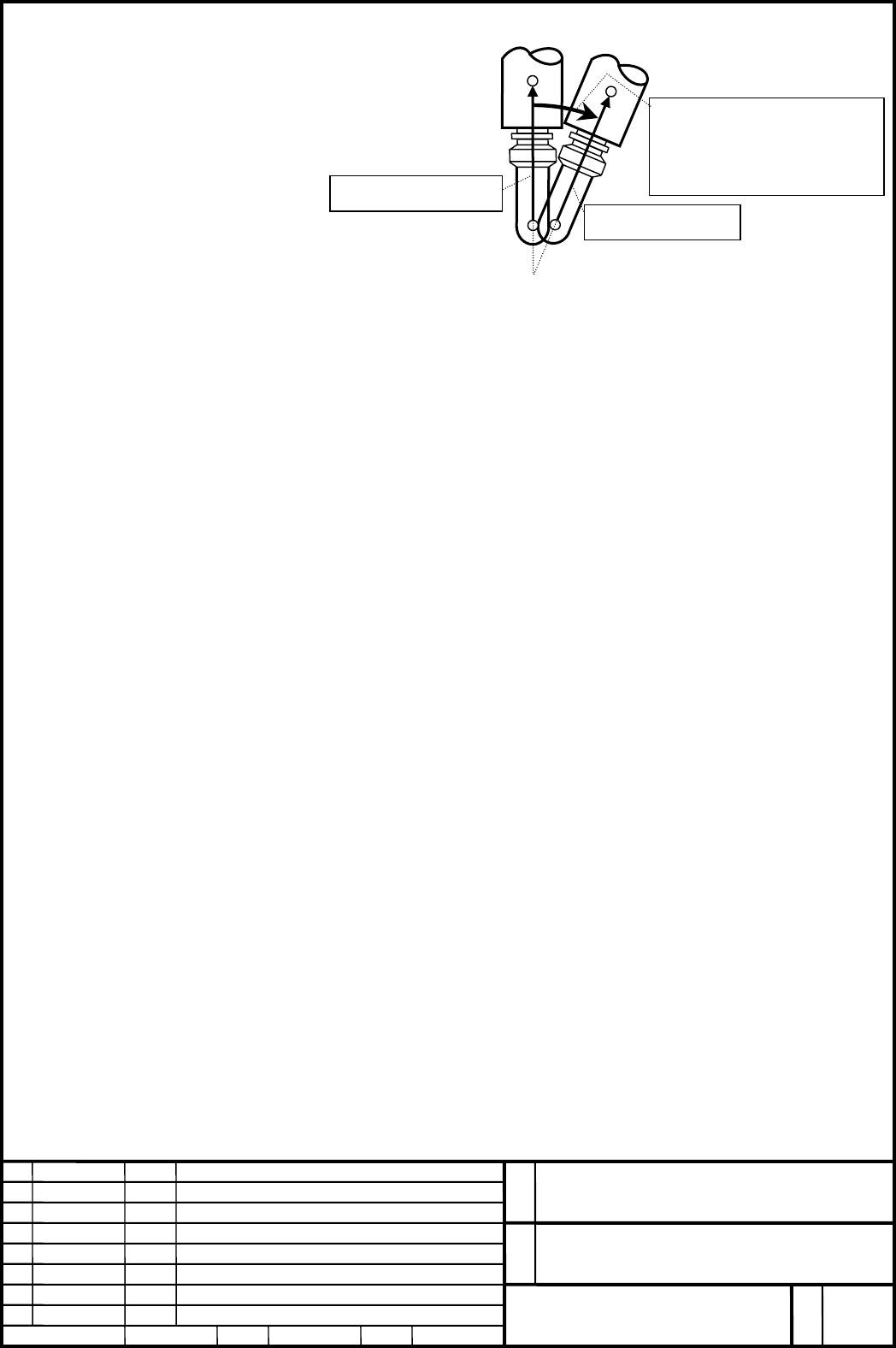

When this angle is less than
Parameter No.19738, Tool
posture is regarded as ‘near
Singular posture’.
Tool posture
Singular posture
Fig.6 : Tool posture near Singular posture
