SERIES 15-150 MODEL B Connection manual Page 125

Connection manual
B–62073E/04
5. POWER SUPPLY UNIT AND INPUT
UNIT CONNECTION
118

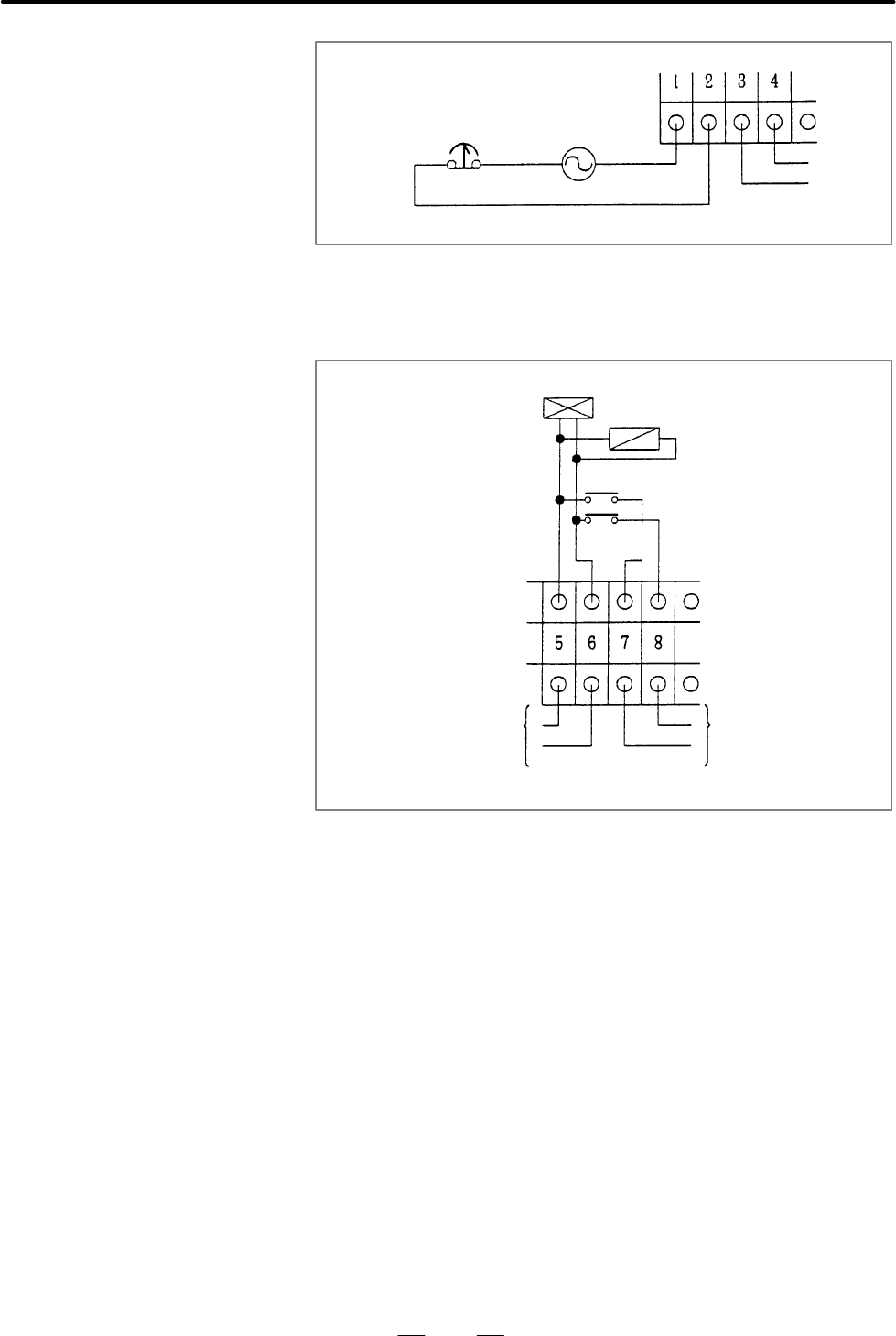

EMERGENCY stop
Contactor
AC100 V
(b)Terminal 5 to 8
These terminals are for ON/OFF–controlled single–phase 200 JAC
input, used for controlling the electromagnetic contactors for the
cabinet fan and servo amplifier power. Connections are as follows:
These terminals receive 200
VAC from the previous
cabinet, etc. Depending on
the previous cabinet, the
connection differs as
follows:
These terminals supply
200 VAC to the next
cabinet. These
connections are made
at the factory.
N
1 c 2
LC2
a. When the previous cabinet is an additional cabinet:
These connections are made at the factory.
b. When the previous cabinet is standalone cabinet A and the
timing control cable (A02B–0163–J101) is specified:
These connections are made at the factory.
c. When the previous cabinet is standalone cabinet B and the
timing control cable (A02B–0164–J101) is specified:
These connections are made at the factory.
