SERIES 15-150 MODEL B Connection manual Page 243

Connection manual
B–62073E/04
7. CONNECTION TO CNC PERIPHERALS
246

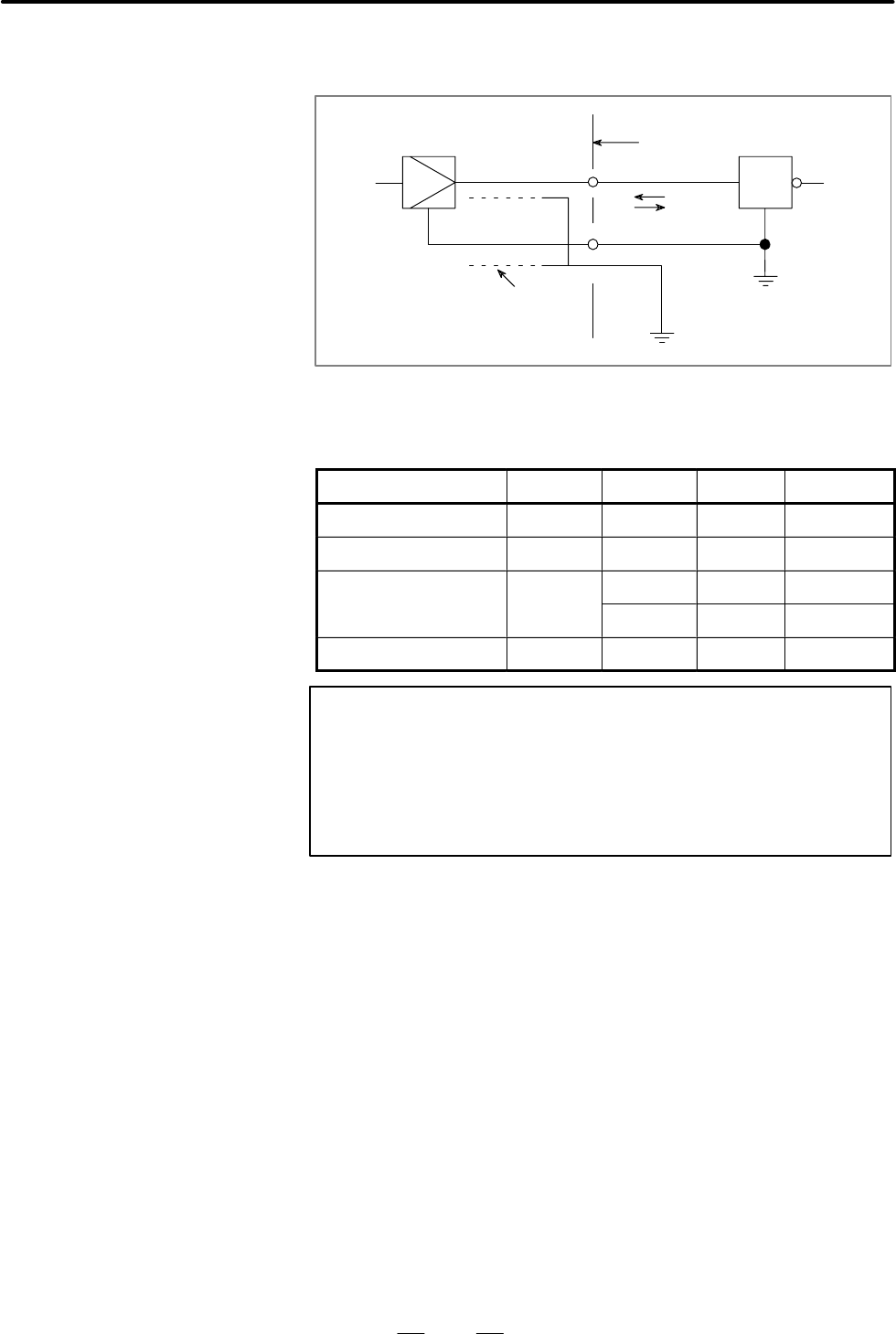

High–speed DI Signal Receiver Input Signal Standard
Circuit configuration
Shield
I
ih
/I
il
VH/VL
NC
Receiver
Driver
Absolute maximum rating
Input voltage range Vin: –3.6 V to +13.6 V
Input characteristics
Item Symbol Standard Unit Description
High–level input voltage VH 3.6 to 11.6 V
Low–level input voltage VL 0 to 1.0 V
High level in
p
ut current
Iih
0.5 max. mA V
in
=5 V
Hi
g
h
–
l
eve
l
i
npu
t
curren
t
Iih
9.3 max. mA V
in
=10 V
Low–level input current Iil –8.0 max. mA V
in
=0 V
NOTE
1 Symbols lih and lil shows the signal flow direction, + signals
flow into the receiver, and – signals flow out of the receiver.
2 When the input voltage is low level, high–speed skip signals
are regarded as logic “1”, and when the input voltage is high
level, the signals are regarded as logic “0”.
