FANUC Series 15i/16i/18i/21i
Remote Diagnostic Function
Host Software (for Windows)
A
-63555EN
Drawing No.
Title
Page
3 1999.7.05 Y.Wakinotani 15i is added T.Ohtsuki
2 1999.3.09 N.Hatanaka Overall revision T.Kurokawa

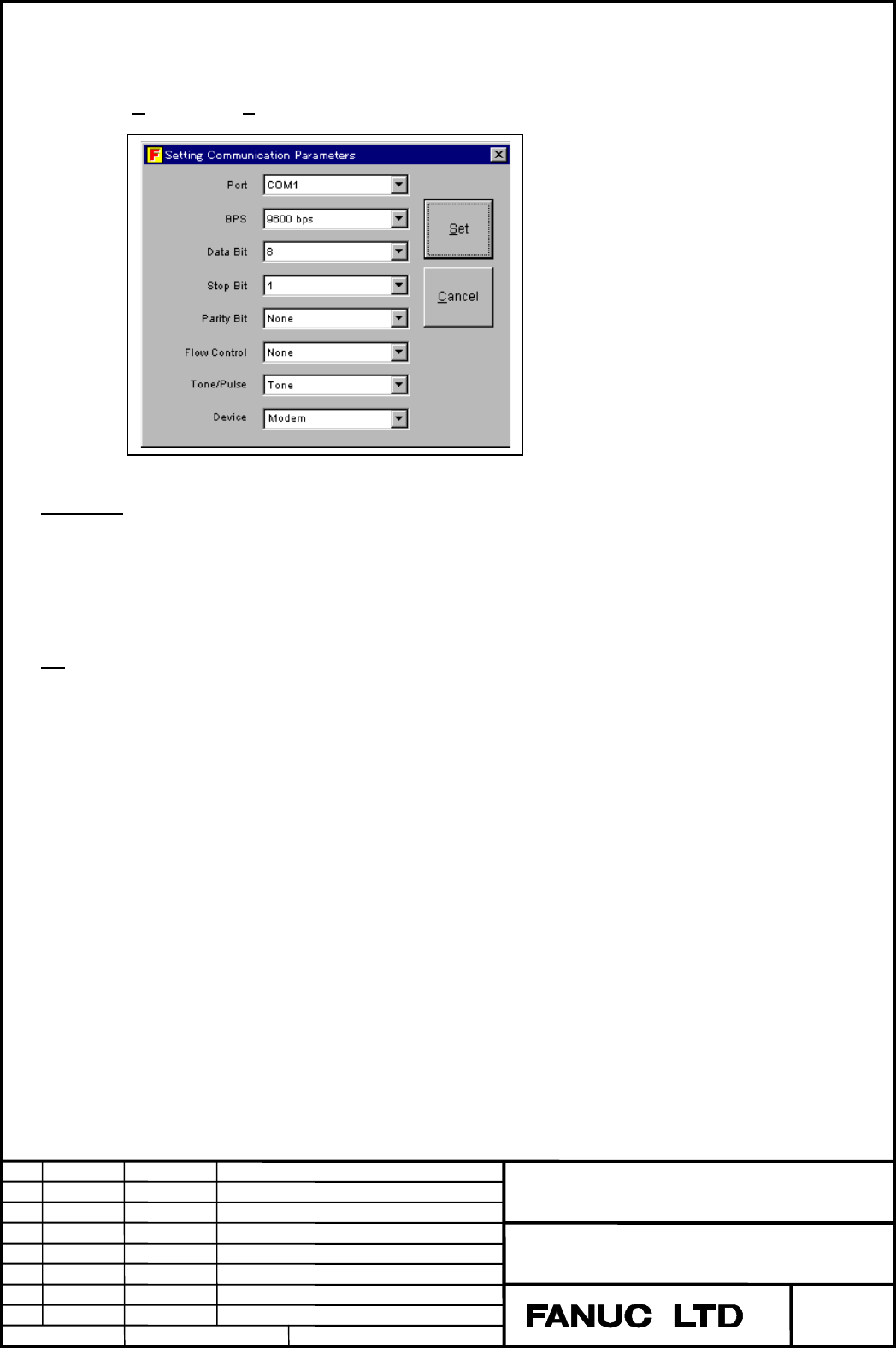

3.4 PC Setting
Select “Others” then “S
etting comm”. And set up the communication condition.
16i/18i/21i
Each condition should be specified to fit the PC, telephone line and the related
CNC parameters.
(Refer to: 4.9.1 Setting Comm)
15i
Setting of Data Bit, Parity Bit and Flow Control must be set as follows:
Data Bit = 8
Parity Bit = None
Flow Control = Xon/Xoff
Other condition should be specified in accordance with the PC, telephone line and the related
CNC parameters.
(Refer to: 4.9.1 Setting Comm)
