Servo Amplifier Unit Alpha Series Descriptions Page 45

Descriptions
B–65192EN/02
5. POWER SUPPLY
29
Use a power transformer for an export when this servo amplifier unit is
used at a site where the line voltage is other than 200/220/230 VAC.

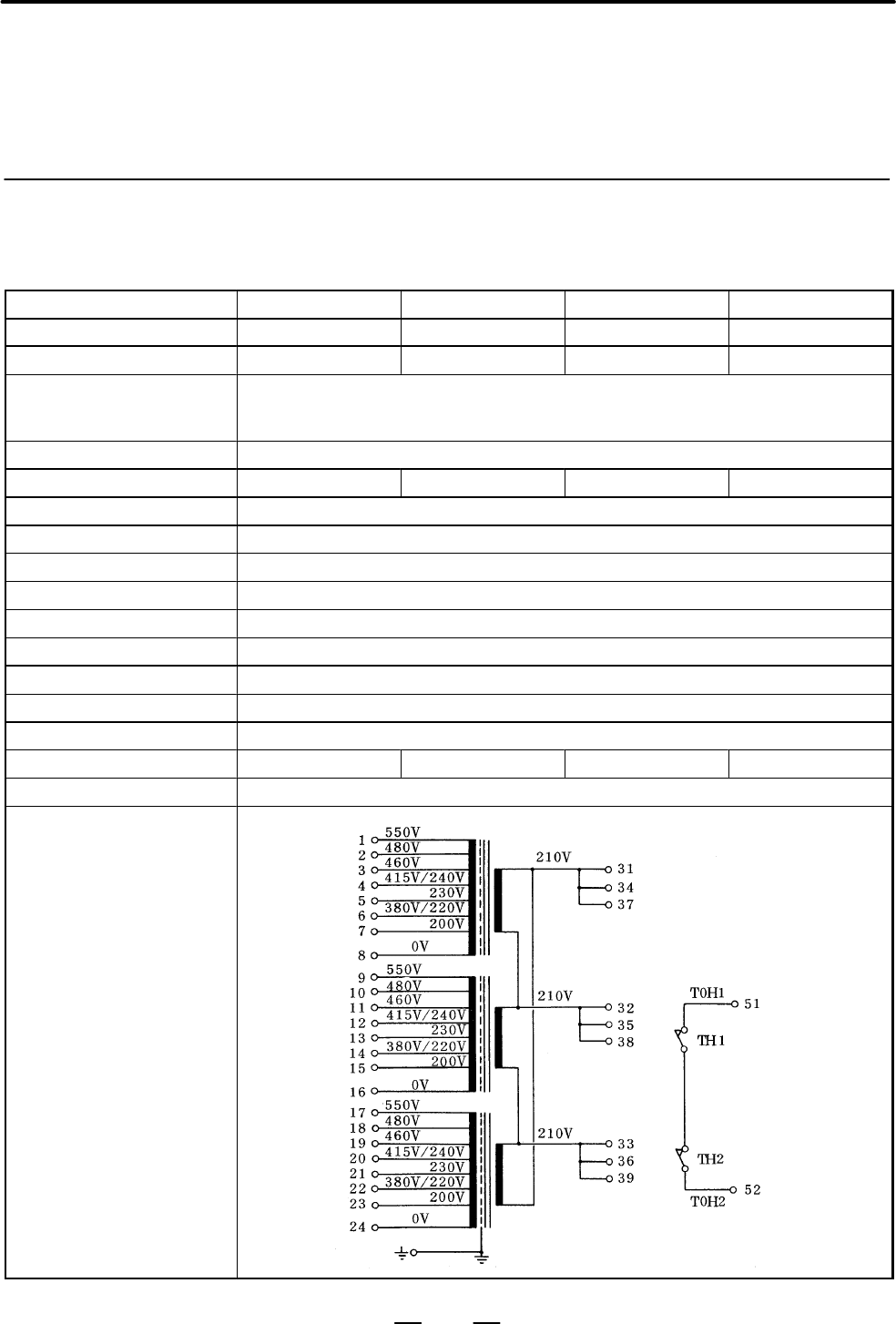

Table 5.3.1 Specification of power trasformers
Designation A80L–0022–0005 A80L–0024–0006 A80L–0026–0003 A80L–0028–0001
Model SAE SBE SCE SDE
Rated capacity 2.2 kVA 3.5 kVA 5.0 kVA 7.5 kVA
Rated primary voltage 200/220/230/240VAC (delta connection)
380/415/460/480/550VAC (star connection)
+10%; –15%, 50/60Hz "2Hz, 3f
rated secondary voltage 210VAC
Rated secondary current 6.1 A 9.6 A 13.7 A 20.6 A
Secondary voltage reguration 5 %
Secondary voltage deviation "2 %
Connection delta–delta–connection or star–delta connection
Insulation Class B (Max. temperature 130_C)
Ambient temp. –20 to 55 _C
Allowable temperaturerise 135 _C
Humidity Max. 95%RH
Type dry–type, self–cooling
Dielectric voltage 2300VAC, 1 minute
Wight Max. 21kg Max. 27kg Max. 36kg Max. 42kg
External dimensions See section 8.1.3
Connection
5.3
POWER
TRANSFORMERS
FOR EXPORTS
5.3.1
Specification
Previous page
Next page
