(3) When, in the same block, the reference point establishment operation is executed for
some target axes, and it is not executed for other target axes.
For instance, when the reference point of X axis has been established, and the reference
points of Y and Z axis have not been established yet, and “G00XxxYyyZzz;" is commanded,
the behavior is shown in the figure below.
X axis, which the reference point of has been established, moves to the end point in
"Phase1" in figure. And Y and Z axes, which the reference point of has not been
established, perform the reference point establishment operation. At this time, the axes
move by the non linear interpolation type regardless of parameter 1401#1(LRP)
In "Phase2", Y and Z axis are positioned to the end point. The tool path of Y and Z axis
depend on parameter 1401#1(LRP). X axis does not move in “Phase2” because it has
already been positioned to the end point in “Phase1”.
"Phase2" is not begun until "Phase1" of all axes is completed.

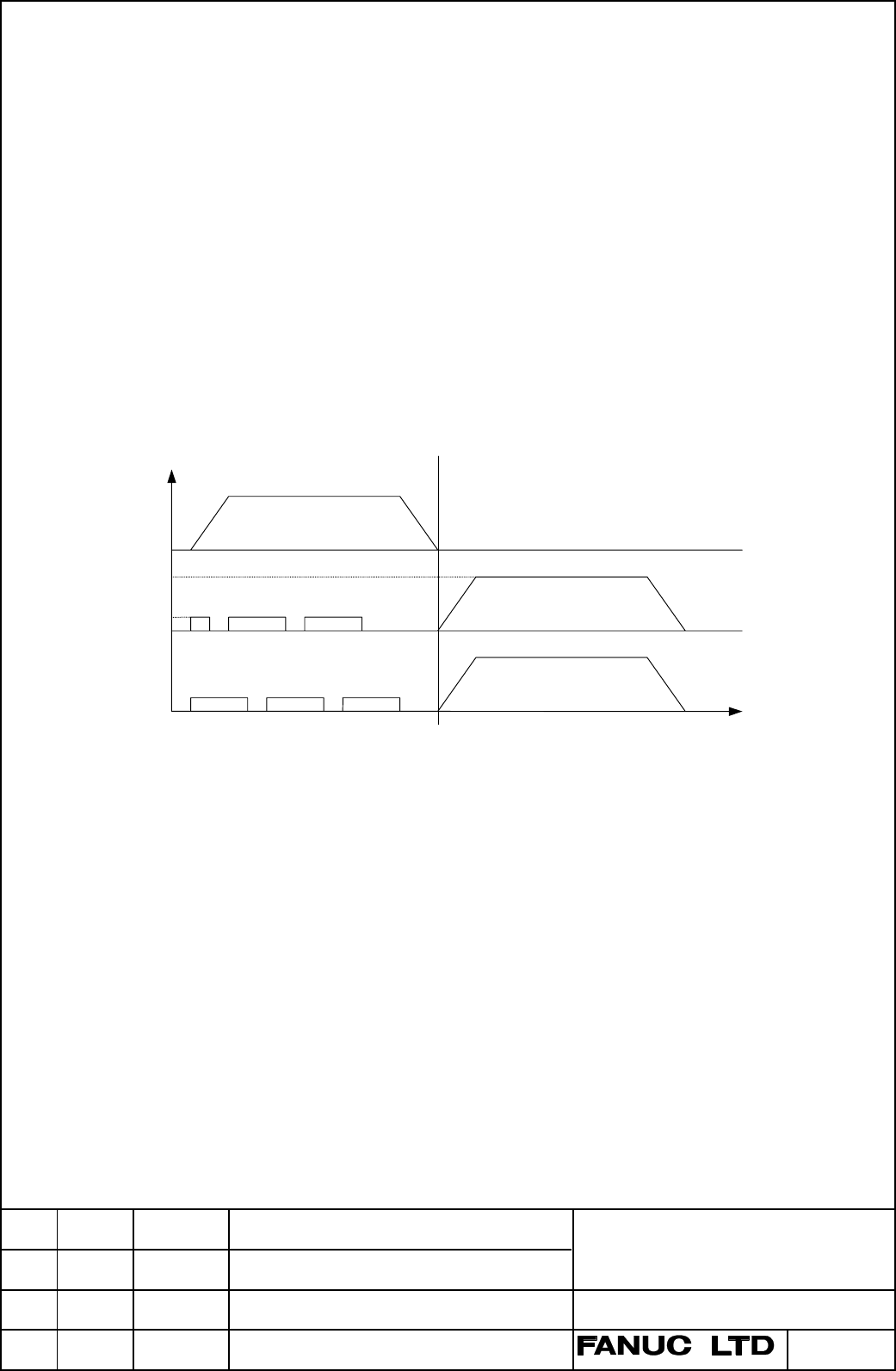

Fig.4 When, in the same block, the reference point establishment operation is
executed for some target axes, and it is not executed for other target axes.
FL speed
Rapid feedrate
X axis
Y axis
Time
Z axis
Phase1 Phase2
No motion
