FANUC Series 30i-MODEL A
Start lock, Interlock signal
for each axis and direction
1.1 START LOCK/INTERLOCK
General
These signals disable machine movement along axes. When any of these
signals is activated during movement, tool movement along the affected axis
(or axes) is decelerated, then stopped.
Signal
Start lock signal STLK<G007#1>
[Classification] Input signal
[Function] This signal disables machine movement along all axes subject to
automatic operation (memory,DNC or MDI operation).
[Operation] When the STLK signal turns to “1”, the axis movement is decelerated
and stopped.
In automatic operation, blocks containing M, S, T, or B commands or 2
nd
auxiliary function
are executed consecutively until a block containing an axis move command is encountered;
the movement then stops and the CNC is placed in automatic operation mode (STL is “1”,
SPL is “0”). When the STLK signal turns to “0”, operation restarts. (Figs. 2.5 (a), (b)).

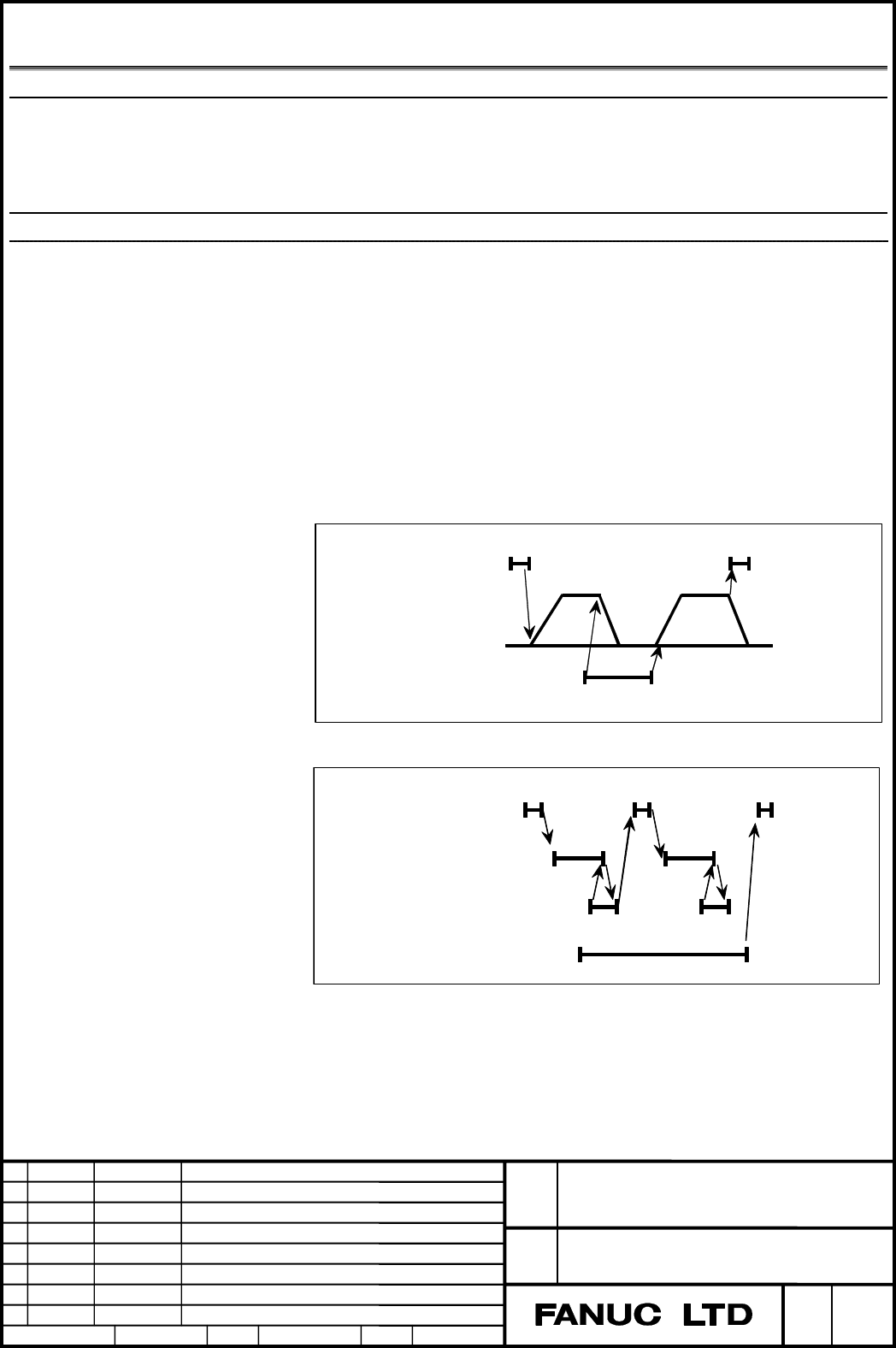

Command read
Axis move
STLK
Fig. 2.5 (a) Block containing axis move commands only
Command read
MF/SF/TF/BF
FIN
STLK
Fig. 2.5 (b) Block containing only auxiliary functions only
