To Meet the Requirement of the EMC Directive Additional Manual Page 21

Additional Manual
A-72937EN/11
To meet the requirement of the EMC Directive
TMN06007E_A-72937EN_11.DOC
- 19 -

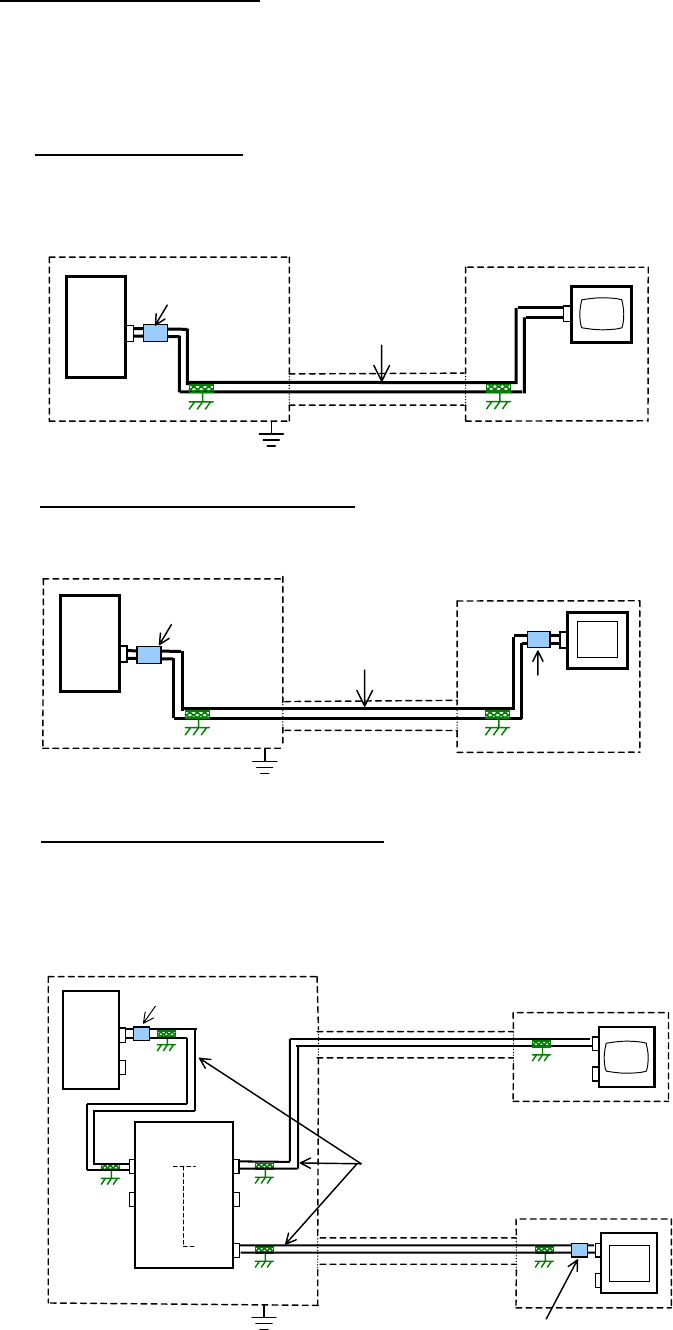

[In case of metal cable]
Use COAXIAL OVERALL SHIELD CABLE such as
“A66L-0001-0371” we informed in our TECHNICAL REPORT
(TMN 94/184) in 1994. Grounding at both ends close to the inlets
is required.
[NC – CRT display]
Mounting of a ferrite core such as one introduced in Section 4.2
is also needed at one end near the NC.
[NC – display except CRT]
Mounting of ferrite cores at both ends is also needed.
[Distribution Board – NC/display]
Mount a ferrite core at one end near the NC. Unless the
display is CRT, also mount a ferrite core at the other end near
the display.
CRT
Ferrite core
see sec. 4.2.
NC cabinet (Metallic)
COAXIAL OVERALL
SHIELD CABLE
NC
CRT
Operator’s panel
(Metallic, enclosed)
Metal duct
Ferrite core
see sec. 4.2.
e.g.
LCD
Ferrite core
see sec. 4.2.
NC cabinet (Metal)
COAXIAL OVERALL
SHIELD CABLE
Operator’s panel
(
Metallic
,
enclosed
)
Metal duct
NC
CRT
Ferrite core
see sec. 4.2.
Ferrite core
see sec. 4.2.
NC cabinet (Metallic)
Operator’s panel
(Metallic, enclosed)
COAXIAL OVERALL
SHIELD CABLE
e.g.
LCD
e.g.
CRT
Distribution
Board
M3S M3A
M3B
NC
CRT
+24V
Metal duct
Metal duct
Operator’s panel
(Metallic, enclosed)
