To Meet the Requirement of the EMC Directive Additional Manual Page 36

Additional Manual
A-72937EN/11
To meet the requirement of the EMC Directive
TMN06007E_A-72937EN_11.DOC
- 34 -
Firstly, connect the shield stranded wires to the connector-block for the
motor using a shield clamp with its clamp ring inside. Treat the shield
wires and then fix the cable by a cable clamp as illustrated above.
These shield clamp adapter, used between the connector-block and the
cable clamp, are available with connectors certified by TÜV from JAE
(Japan Aviation Electronics Industry Ltd.), Hirose Electric Co. Ltd. or DDK
Ltd. The shield clamp adapter, the connector-block and the cable clamp
should be in combination of the same manufacturer’s products.
connectors with a shield clamp adapter 20-29SW
Japan Aviation Electronics Industry Ltd. (JAE)
(FANUC’s spec. number)
JL04V-2022SC
(A63L-0001-0716#2022J)
Hirose Electric Co. Ltd.
(FANUC’s spec. number)
H/MS2022-SC
(A63L-0001-0716#2022H)
DDK Ltd.
(FANUC’s spec. number)
CE-12AD
(A63L-0001-0716#2022D)
Secondly, connect the feedback connector and the power
connector by a bridge wire. Use screws that fix the connectors of
the motors for this connection purpose. When there is a concern
about the environment where the wire is exposed to cutting
liquid and so on, using a plated metal could be a solution for that.
“FG mesh: FGM-50-M3” which is manufactured by Kitagawa
Industries Co., Ltd. is available for this case.
b) Power cable
Use shield cable. Solder the shield wire and the earth wire to the ground
contact directly together. The drain wire or thinned out shield wire is
available for this case. The ground contact is connected directly to the
connector case and is also connected to the motor body by wiring.
3) β series servo motors (Model β0.5)
a) Feed back cable
Use double layered shield cable. Leave the both inner and outer shield
open in the motor end.

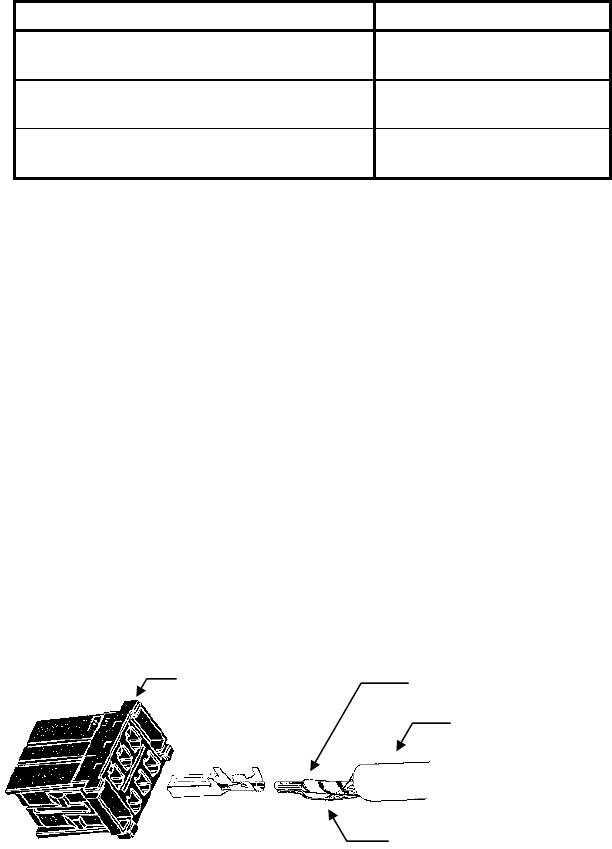

b) Power cable (Refer to the above figure)
Use shield cable. Clamp the shield wire and the earth wire together to
the contact.
Power connector
Shield cable
Earth wire
Shield wire
