Laser C1000/C2000/C4000/C5000/C6000-Model E Europe Operators manual Page 79

Operators manual
B-70314EN/02 3.INSTALLATION
- 71 -
(e) Tightening torque for terminal
Tightening torque of mounting screws is as follows.
OSC Torque
C1000-E 5.5 to 7.5N⋅m
C2000-E 15N⋅m
C4000-E 15N⋅m
C5000-E 8 to 13N⋅m
C6000-E 10 to 15N⋅m
(2) Ground cable
There are two grounding locations.
One of the locations is for calss-1 grounding.
The other location is for protective grounding. Install a
grounding wire to the location marked "PE".
(3) Interface connection cable
a) I/O signals
16i-L
Connect an optical fiber cable to COP1B on the interface
PCB.
b) Emergency stop signals (ESP1 and ESP2)
These signals are not used. Strap the corresponding points.
c) OFF interlock signals (OFI1 and OFI2)
Making the power supply for the oscillator ready to be
switched off turns off these signals. Connect them in
parallel with an CNC OFF switch.
Contact current-carrying capacity : 3 A on 250 VAC or 5 A
on 30 VDC
d) Laser oscillator ON/OFF signal (ON, OFF)
Connect 200 VAC in synchronization with the CNC
ON/OFF switch to this signal.
Current-carrying capacity : 10 mA on 200 VAC

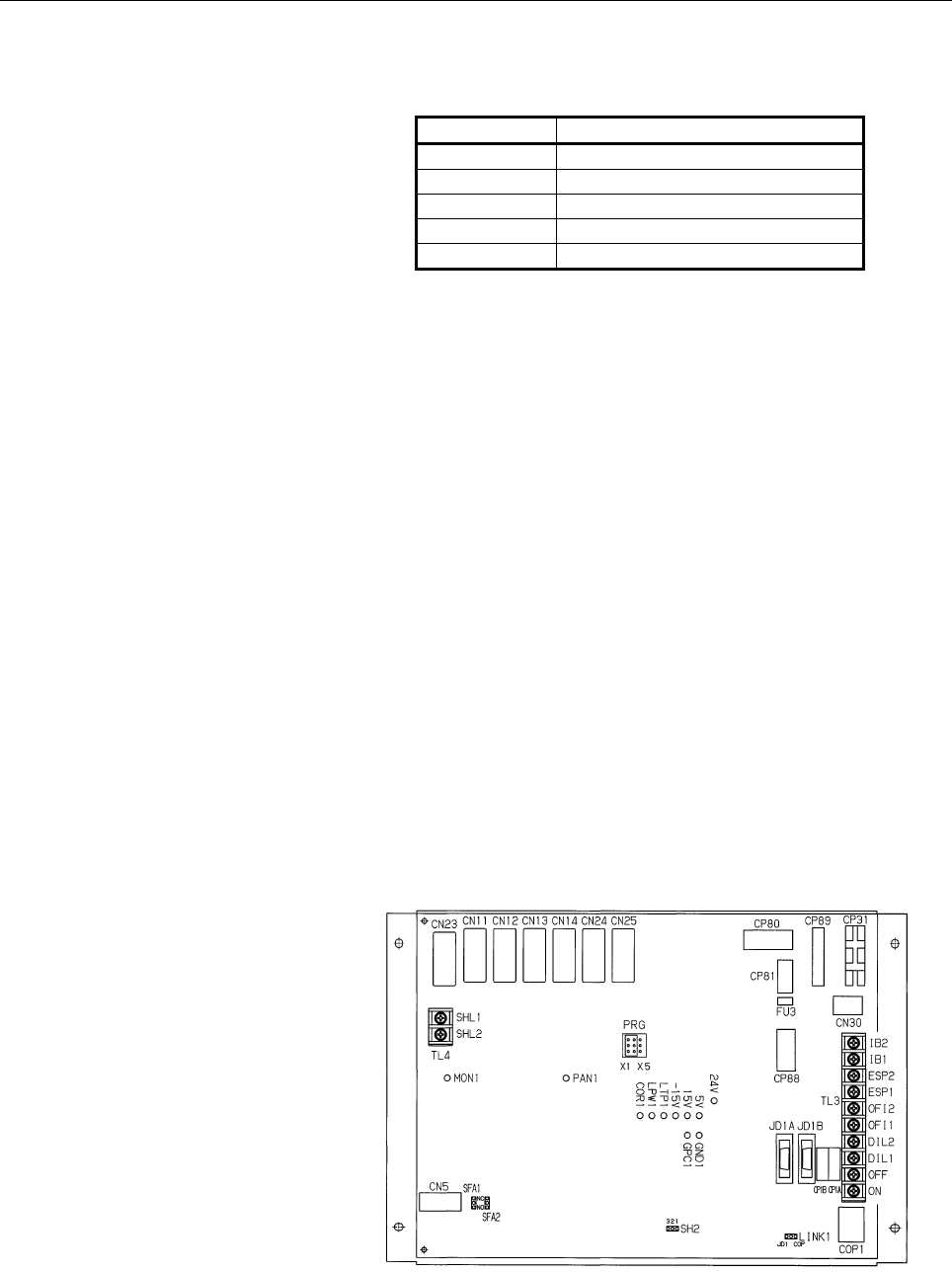

Fig.3.9.1(a) Layout of IF PCB
