2 Operation
2.1 Connection
Please input the feedback pulse from the position coder to the pulse module.
Please set parameter No.1905#7, (PM2), # 6(PM1), and parameter No.1936,1937
to make the feedback pulse input to the pulse module effective.
The spindle (position coder) and the servo motor come to be synchronized above.

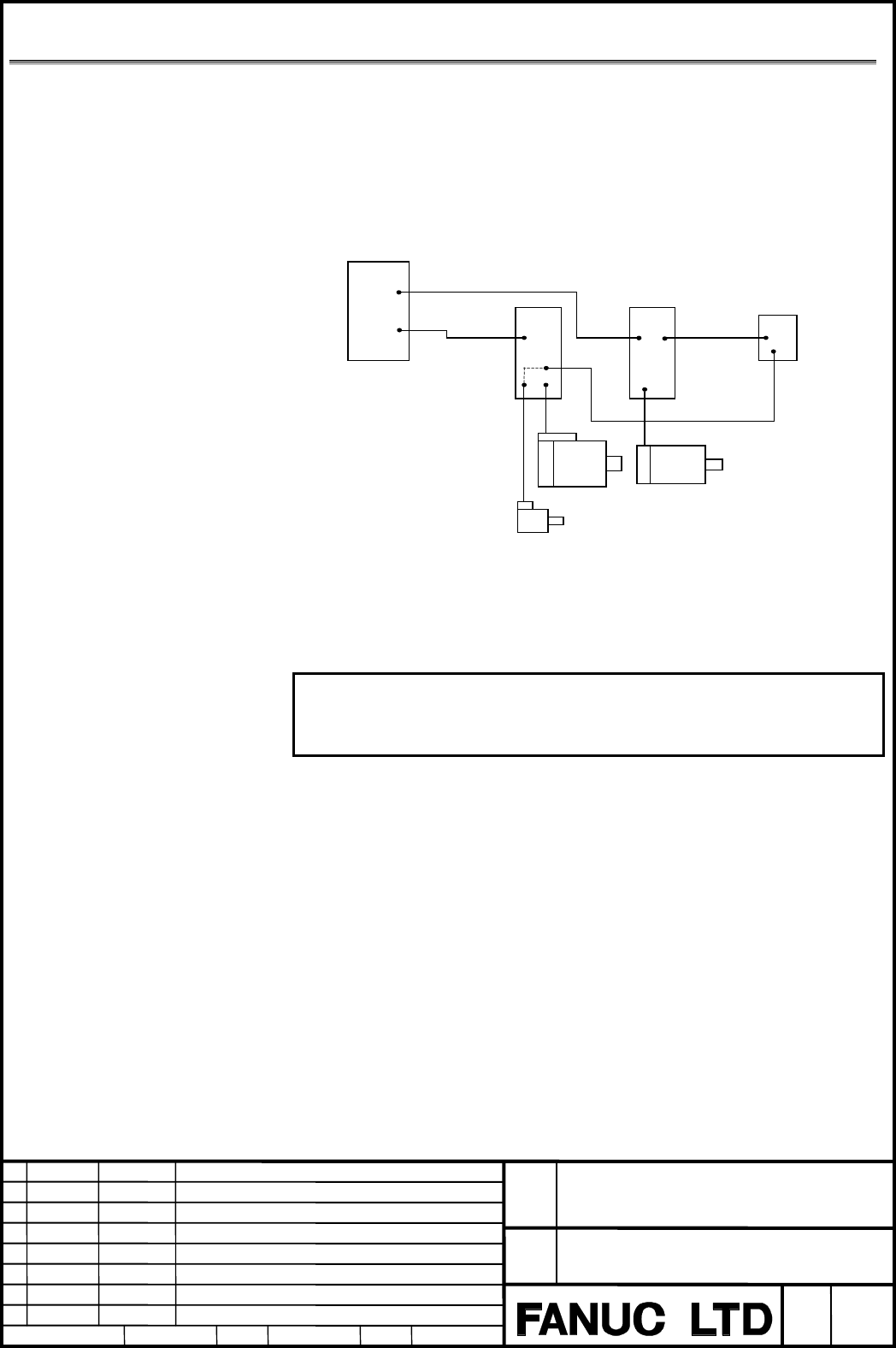

Example) Example of connection
Parameter No.1905#6(PM1) = 1 (The first pulse module is used)
No.1936 = 0 (Connector number of the first pulse module is
“1”(JF101) is used)
Servo
motor
SVM
COP10B COP10A
CNC
COP10A
JA41
SPM
JA7B
Spindle
motor
Position coder
JX4
Pulse module
COP10B
JF101
Note
The combination of synchronizing spindle and servo motor cannot be changed
while operating.
