Series 16i/160i-LA Operators manual Page 239

Operators manual

Page of 820

/ 820

PROGRAMMING

B–63194EN/02

12. COMPENSATION FUNCTION

219

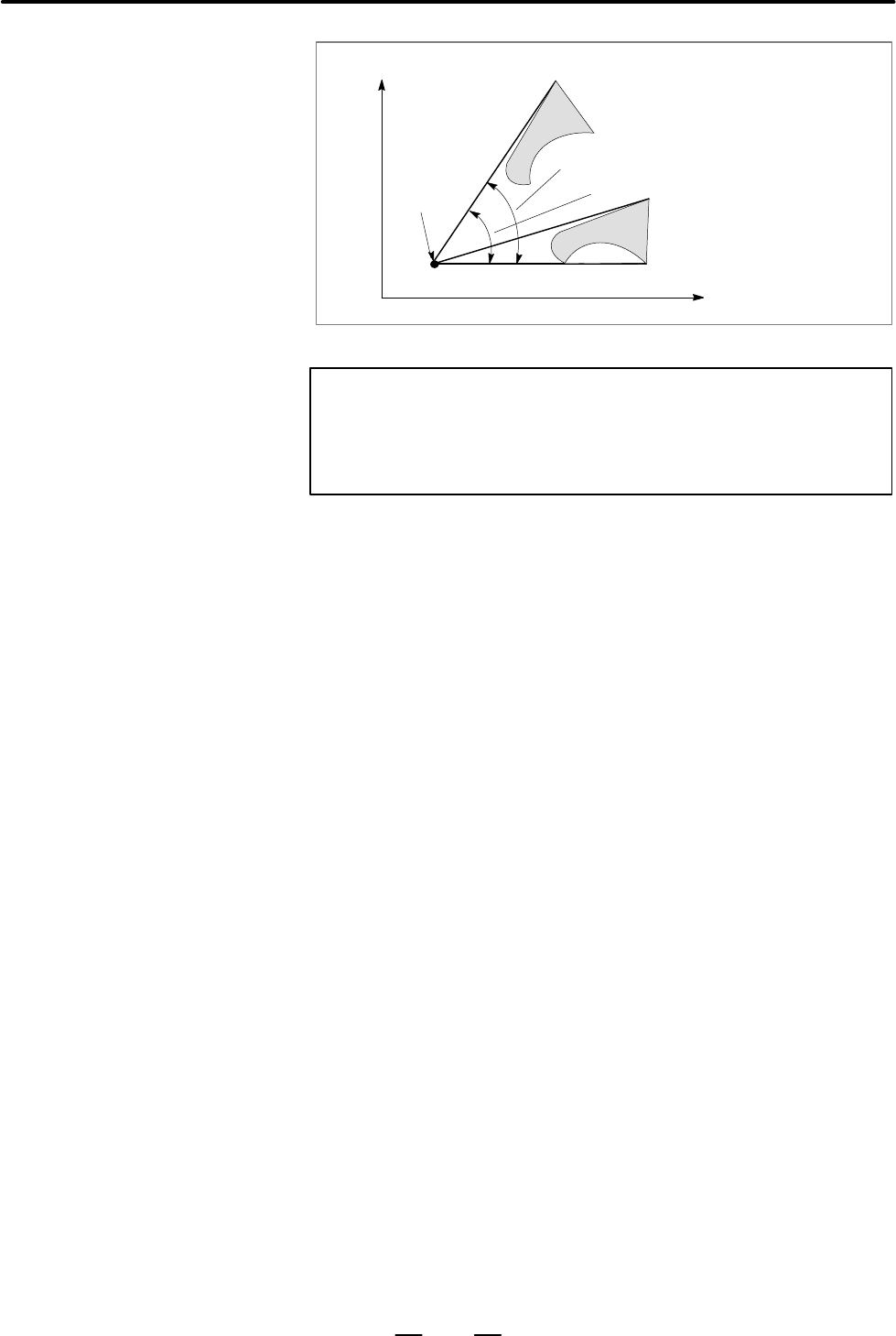

(α, β)

Center of

rotation

Angle of rotation R (incremental value)

Angle of rotation (absolute value)

Fig12.6 (b) Coordinate system rotation

NOTE

When a decimal fraction is used to specify angular

displacement (R_), the 1’s digit corresponds to degree

units.

The G code for selecting a plane (G17,G18,or G19) can be specified

before the block containing the G code for coordinate system rotation

(G68). G17, G18 or G19 must not be designated in the mode of coordinate

system rotation.

The center of rotation for an incremental command programmed after

G68 but before an absolute command is the nozzle position when G68 was

programmed (Fig. 12.7 (c)).

When α_β_ is not programmed, the nozzle position when G68 was

programmed is assumed as the center of rotation.

When R_ is not specified, the value specified in parameter 5410 is

assumed as the angular displacement.

The G code used to cancel coordinate system rotation (G69) may be

specified in a block in which another command is specified.

Cutter compensation, tool length compensation, tool offset, and other

compensation operations are executed after the coordinate system is

rotated.

As the G code for coordinate system rotation, G84 and G85 can be used

in addition to G68 and G69. If the three–dimensional coordinate

conversion option is added, G68 and G69 are the G codes for

three–dimensional coordinate conversion.

Explanations

D G code for selecting a

plane: G17,G18 or G19

D Incremental command in

coordinate system

rotation mode

D Center of rotation

D Angular displacement

D Coordinate system

rotation cancel

command

D Tool compensation

D Relationship with

three–dimensional

coordinate conversion

(G68, G69)
