Series 16i/160i-LA Operators manual Page 93

Operators manual

Page of 820

/ 820

PROGRAMMING

B–63194EN/02

5. FEED FUNCTIONS

When a corner is determined to be an inner corner, the feedrate is

overridden before and after the inner corner. The distances Ls and Le,

where the feedrate is overridden, are distances from points on the beam

center path to the corner (Fig. 5.4.2.1 (b), Fig. 5.4.2.1 (c), Fig. 5.4.2.1 (d)).

Ls and Le are set with parameter Nos. 1713 and 1714.

Programmed path

Beam center path

The feedrate is overridden from point a to point b.

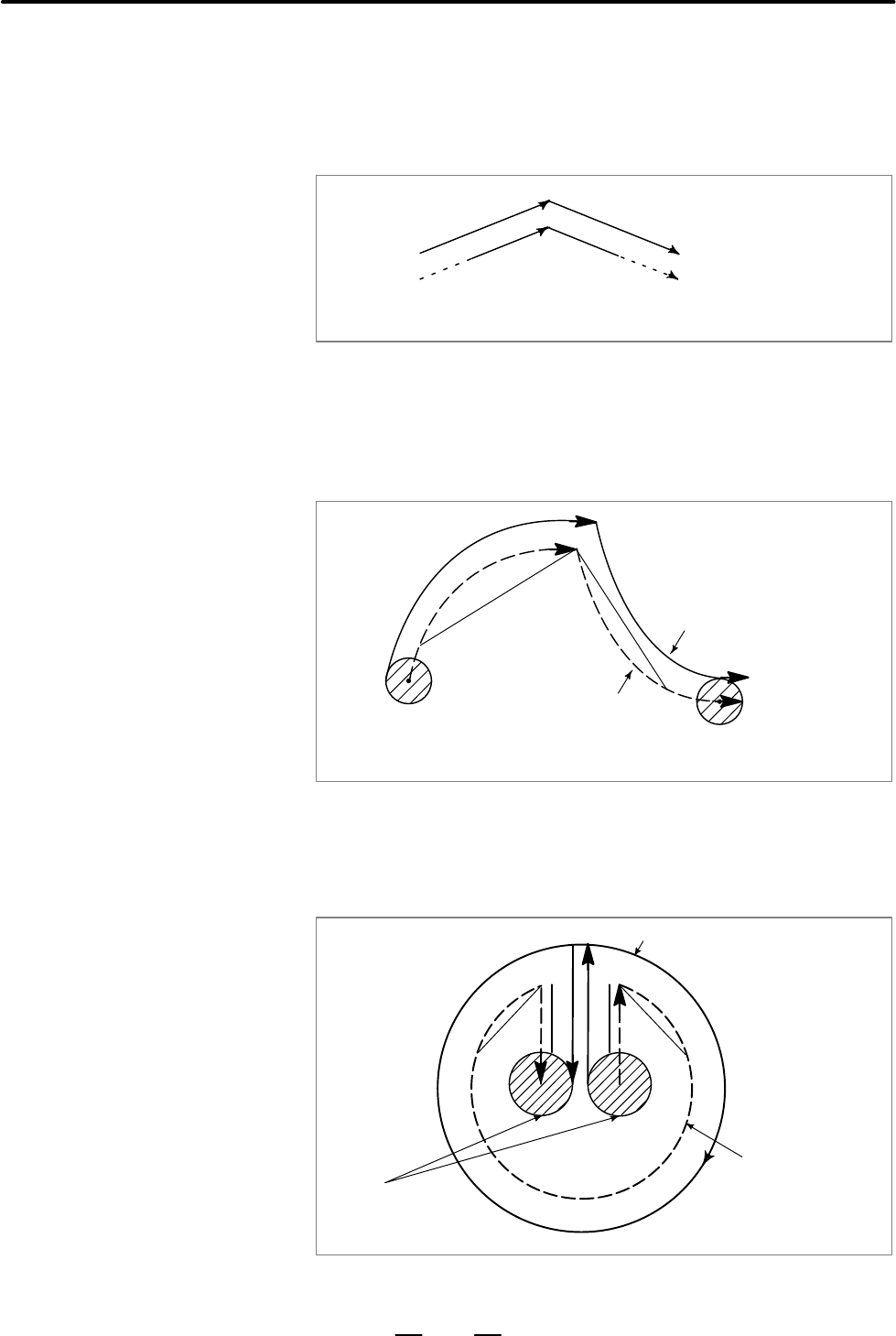

FIg. 5.4.2.1 (b) Override Range (Straight Line to Straight Line)

When a programmed path consists of two arcs, the feedrate is overridden

if the start and end points are in the same quadrant or in adjacent quadrants

(Fig. 5.4.2.1 (c)).

Programmed path

The feedrate is overridden from point a to b.

Beam center path

Fig. 5.4.2.1 (c) Override Range (Arc to Arc)

Regarding program (2) of an arc, the feedrate is overridden from point a

to point b and from point c to point d (Fig. 5.4.2.1 (d)).

d a

LsLe

Ls Le

(2)

Programmed path

Beam center path

Tool

Fig. 5.4.2.1 (d) Override Range (Straight Line to Arc, Arc to Straight Line)

Override range
