Series 0i Mate - TB Operators manual Page 668

Operators manual

Page of 756

/ 756

1.MANUAL GUIDE 0i MANUAL GUIDE 0i B-63854EN/03

- 644 -

#7 #6 #5 #4 #3 #2 #1 #0

9764 SNC

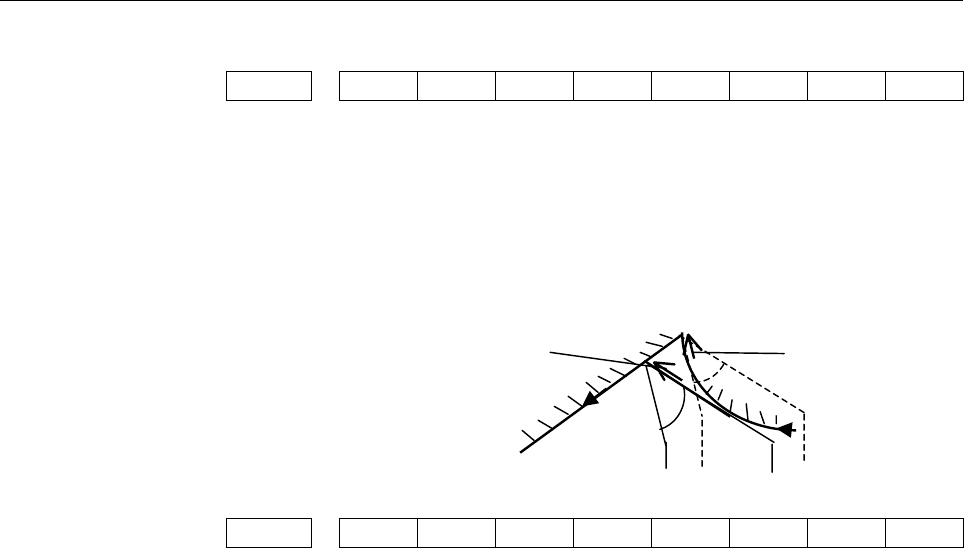

SNC = 0 : In semi-finishing of bar machining, tool back figure

compensation is not carried out.

= 1 : The above tool back figure compensation is carried out.

However, in this case, there may be a case that it takes a little

long time to begin the next cutting motion after moving

toward cutting start position. This time depends on the

entered figure.

#7 #6 #5 #4 #3 #2 #1 #0

9767 SFG MTA NCR SGT SFC

SFC = 0 : For arcs created in bar machining, tool radius compensation is

applied using only the tool-tip radius. The finishing amount is

used as a shift amount for compensation.

= 1 : The compensation stated above uses both tool-tip radius and

finishing amount.

SGT = 0 : Cutting edge compensation is disabled.

= 1 : Cutting edge compensation is enabled.

NCR = 0 : G41 and G42 is used in the bar finishing cycle.

= 1 : G41 or G42 is not used.

MTA = 0 : Multiple threading is carried out by shifting the start point of

each thread.

= 1 : Multiple threading is carried out by specifying an angle (Q).

SFG = 0 : Bar machining including very small steps is disabled.

= 1 : Bar machining including very small steps is enabled.

<SNC>=1

<SNC>=0
