15i/150i - Model B Connection manual (Hardware) Page 295

Connection manual (Hardware)

Page of 525

/ 525

B–63783EN/01

7. CONNECTION TO CNC PERIPHERALS

283

CNC

PCR-EV20MDT

JA7B

JA41

JA7B

<SINB>

<*SINB>

(+5V)

<SOUTB>

(+5V)

SINA

*SINA

SOUTA

*SOUTA

[PCA]

[*PCA]

[PCB]

[*PCB]

(+5V)

<*SOUTB>

SOUTA

*SOUTA

SINA

*SINA

PCR-EV20MDT

JA41

SIN

*SIN

SOUT

*SOUT

(+5V)

SIN

*SIN

SOUT

*SOUT

(+5V)

α spindle amplifier module

NOTE

1 The +5V signals inside parentheses ( ) are power source signals to the optical I/O Link adapter to be used when

an optical I/O Link adapter is used for the connection between NC and the spindle amplifier. Do not connect this

signal when the optical cable is not used. It cannot be used jointly with the No.2 serial spindle.

The signals inside < > are used for the No.2 serial spindle interface. The 3rd and 4th spindles can be used by

using a serial spindle connection adapter.

2 For an αi spindle, a connection with the conventional optical I/O link adapter is not allowed. The optical adapter

(A13B–0154–B003) must be used.

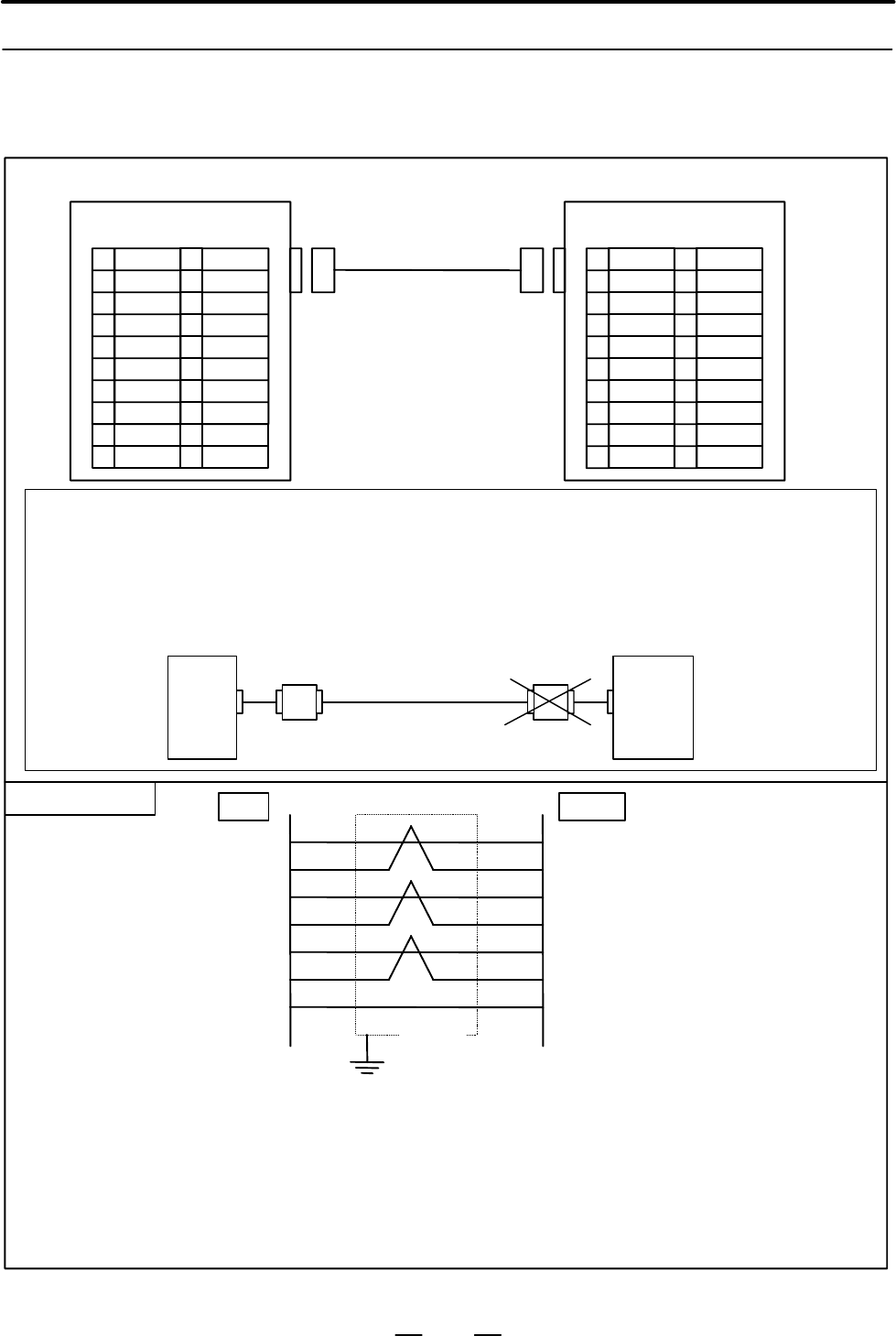

Cable connection

Shield

Ground plate

Recommended wire specification: A66L–0001–0284#10P (#28AWG 10 pairs)

When this cable is laid nearby power lines and other cables, the shielded lead must be connected to the earth plate.

However, note that this connection is not required when the CNC and spindle amplifier module are mounted nearby.

In the following cases, use optical fiber cable connection through an optical I/O Link adapter:

D When the cable length exceeds 20m

D When the cabinet where the spindle amplifier is installed and the operator’s panel cabinet where the control unit

is installed cannot be connected through a grounding wire of 5.5 mm

or more

D When the cable may be affected by noise

For example, this applies when there is a source of strong magnetic noise, such as a welder, near the cable.

CNC

Optical adapter

Optical cable

Optical I/O

link adapter

αi spindle

amplifier

module

7.5.1

α Spindle Interface
