15i/150i - Model B Connection manual (Hardware) Page 37

Connection manual (Hardware)
B–63783EN/01
3. INSTALLATION
25
12mm
20mm
8mm
Ground
plate

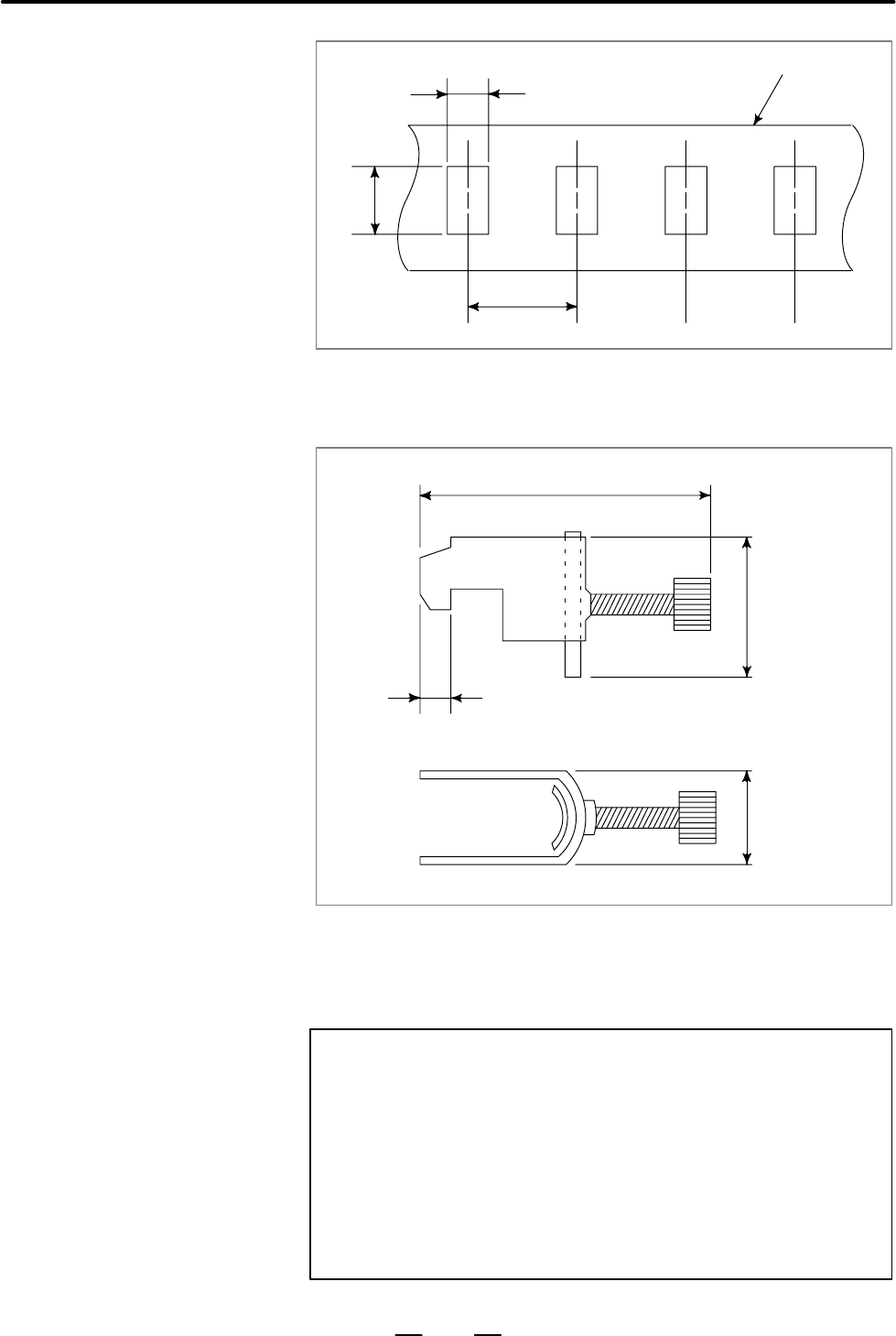

Fig. 3.6.5 (d) Ground plate holes
(Reference) Outer drawings of metal fittings for clamp.
17mm
28mm
6mm
Max. 55mm
Fig. 3.6.5 (e) Outer drawings of metal fittings for clamp
Ordering specification for metal fittings for clamp
A02B–0118–K001 (5 pieces)
NOTE
Select cables of appropriate length.
Cables longer than necessary are not recommended. If
cables longer than necessary are used, their resistance to
noise may be reduced or noise may be induced on other
cables. If surplus cable is wound up, inductance increases
and an extremely high voltage may be induced during
ON/OFF switching. This may result in malfunction or
erroneous operation caused by noise.
