FANUC Series 16i/18i-MB/18i-MB5 Small-Hole Peck Rigid Tapping, Specifications Additional Manual Page 3
Additional Manual
2002/08/19 T.Inagaki
Format
The mode for the small-hole peck rigid tapping cycle is selected when the
M-code in parameter 13410 is specified. The cycle can start by specifying
G84(normal tapping) or G74(reverse tapping) in this mode. This mode is
canceled when G80 is specified or when a reset occurs.
G84 (or G74) X_ Y_ Z_ R_ P_ Q_ F_ K_ ;
X_ Y_ : Hole position data
Z_ : Distance from point R to the bottom of the hole
R_ : Distance from initial level to point R
P_ : Dwell time at the bottom of the hole and at point R when return
is
made.
Q_ : Depth of cut for each cutting feed
F_ : The cutting feedrate
K_ : Number of repeats

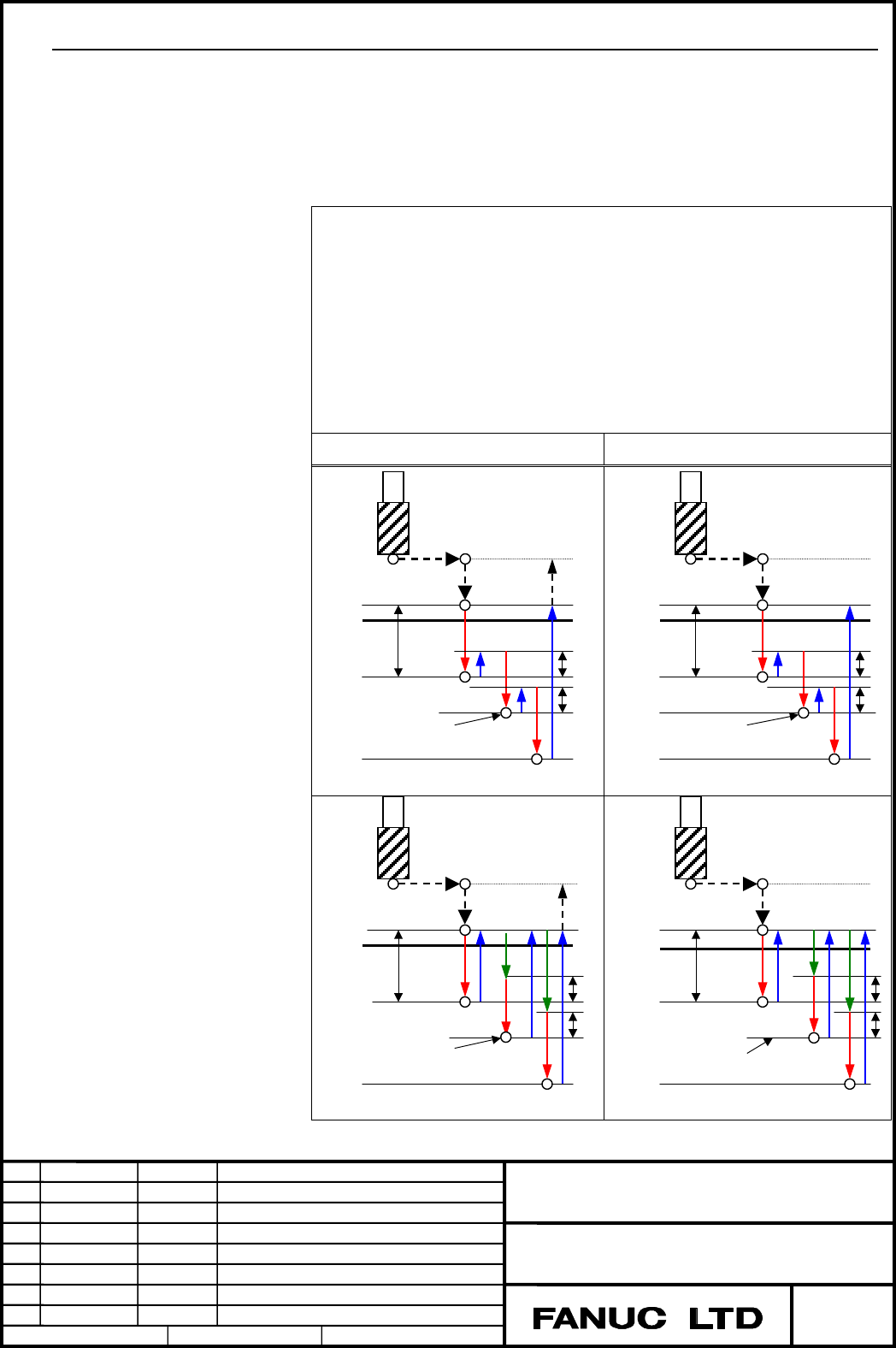

G84,G74(G98) G84,G74(G99)
Small-hole high-speed peck rigid
tapping cycle
(Parameter PCP(No.5200#5=0)
(1) The tool operates at a normal
cutting feedrate. The normal
time constant is used.
(2) Retraction can be overridden.
The retraction time constant
is used.
Initial level
Point R Point R Lv.
Q (1)
(2) d
d
Overload torque
Point Z
Initial level
Point R Point R Lv
Q (1)
(2) d
d
Overload torque
Point Z
Small-hole peck rigid tapping
cycle (Parameter PCP
(No.5200#5=1))
(1) The tool operates at a normal
cutting feedrate. The normal
time constant is used.
(2) Retraction can be overridden.
The retraction time constant
is used.
(3) Advance can be overridden.
The normal time constant is
used.
Initial level
Point R Point R Lv.
Q (1) (3)
(2) d
d
Overload torque
Point Z
Initial level
Point R Point R Lv
Q (1) (3)
(2) d
d
Overload torque
Point Z
FANUC Series 16i/18i–MB/18i–MB5
Small-hole peck rigid tapping
A-78641EN
Page
Descri
Title
Drawing No.
p
tionDate Edit
3/14
