Open CNC Screen Display Function Operators manual Page 32

Operators manual
2.OPERATION B-63164EN/04
- 16 -
l Starting the function
When more than one CNC is connected or can be connected, the
CNC screen display function can be executed more than once at
the same time. In this case, each time the CNC screen display

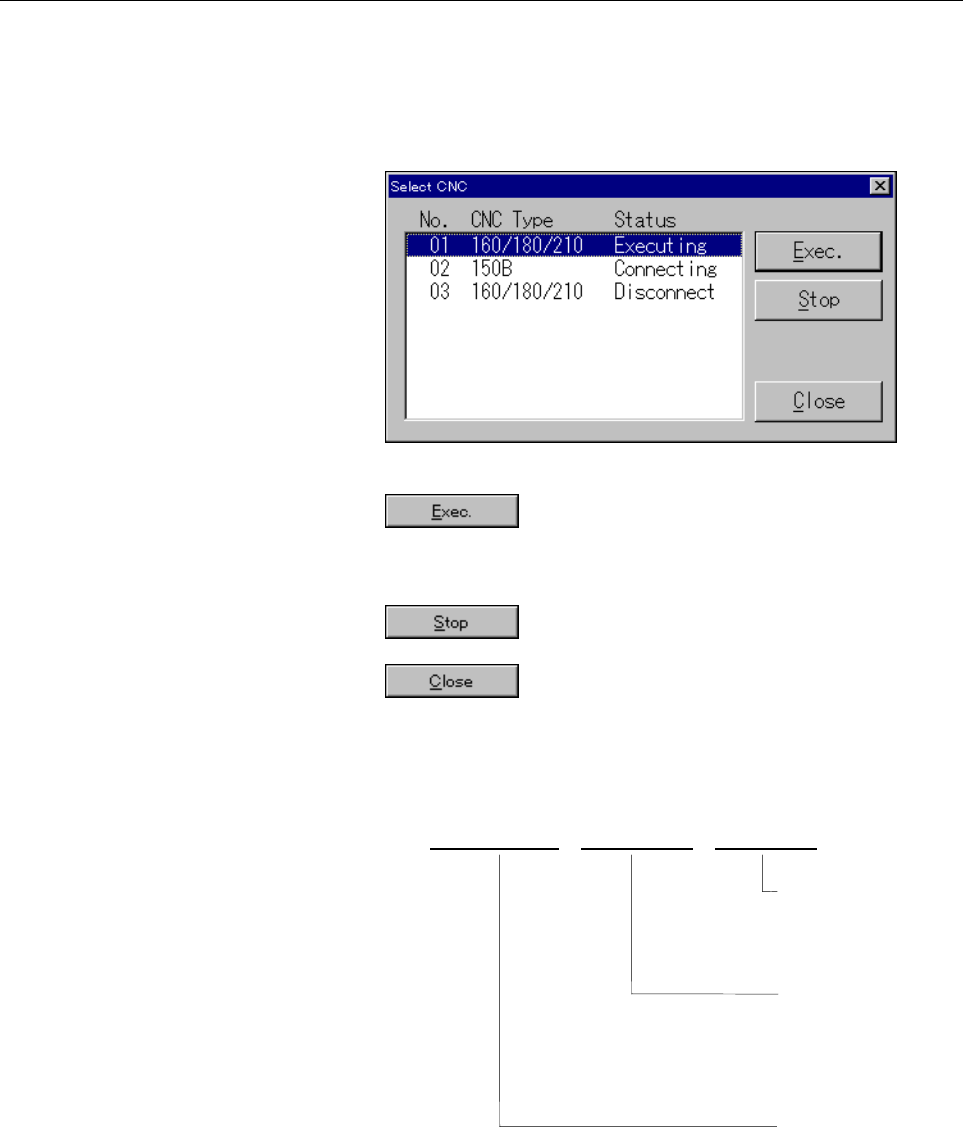

function is started, the following CNC select screen appears:
The buttons have the following meanings:
: Executes the CNC screen display function.
When the CNC screen display function is
already running, the running CNC screen
display function is displayed on top.
: Stops the current CNC screen display
function.
: Terminates the CNC screen display function.
l Explanation of the list
The list contains the following information:
- General format of the list
CNC No. = 01 160/180/210
Connecting
Connection status
Disconnect
Connecting
Executing
CNC model
160/180/210
(Series 16i/18i/21i)
150B (Series 15B)
150 (Series 15i)
CNC number (00 to
07)
