Open CNC Screen Display Function Operators manual Page 50

Operators manual
2.OPERATION B-63164EN/04
- 34 -
2.6 DATA INPUT/OUTPUT (EXCEPT FOR THE FS150B)
This section explains data input/output operations (input to and output
from the memory card and hard disk).
2.6.1 When The FS160i/180i/210i With The Personal Computer
Function or the FS160i/180i/210i/150i with a CNC Display Unit
with Personal Computer Function Is Used
l Assignment to the memory card drive
In the Series 160i/180i/210i with the personal computer function
or the FS160i/180i/210i/150i with a CNC Display Unit with
Personal Computer Function, the memory card slot locates in
front of LCD is connected to the personal computer; it is not
connected to the CNC. Therefore, the memory card is handled as
a kind of drive (removable disk) attached to the personal
computer.
To use a memory card for input/output, set up the following
parameters.
When the FS160i/180i/210i is used:
Set CNC parameter No. 20 to 4.
When the FS150i is used:
Set CNC parameter Nos. 20 to 23 to 0 or 8.
The drive to which the memory card is actually assigned varies
depending on the drive configuration in the personal computer.
Set the drive to which the memory card is assigned, by using the
procedure explained below.
In the following explanation, the memory card is assumed to be
assigned to drive D.

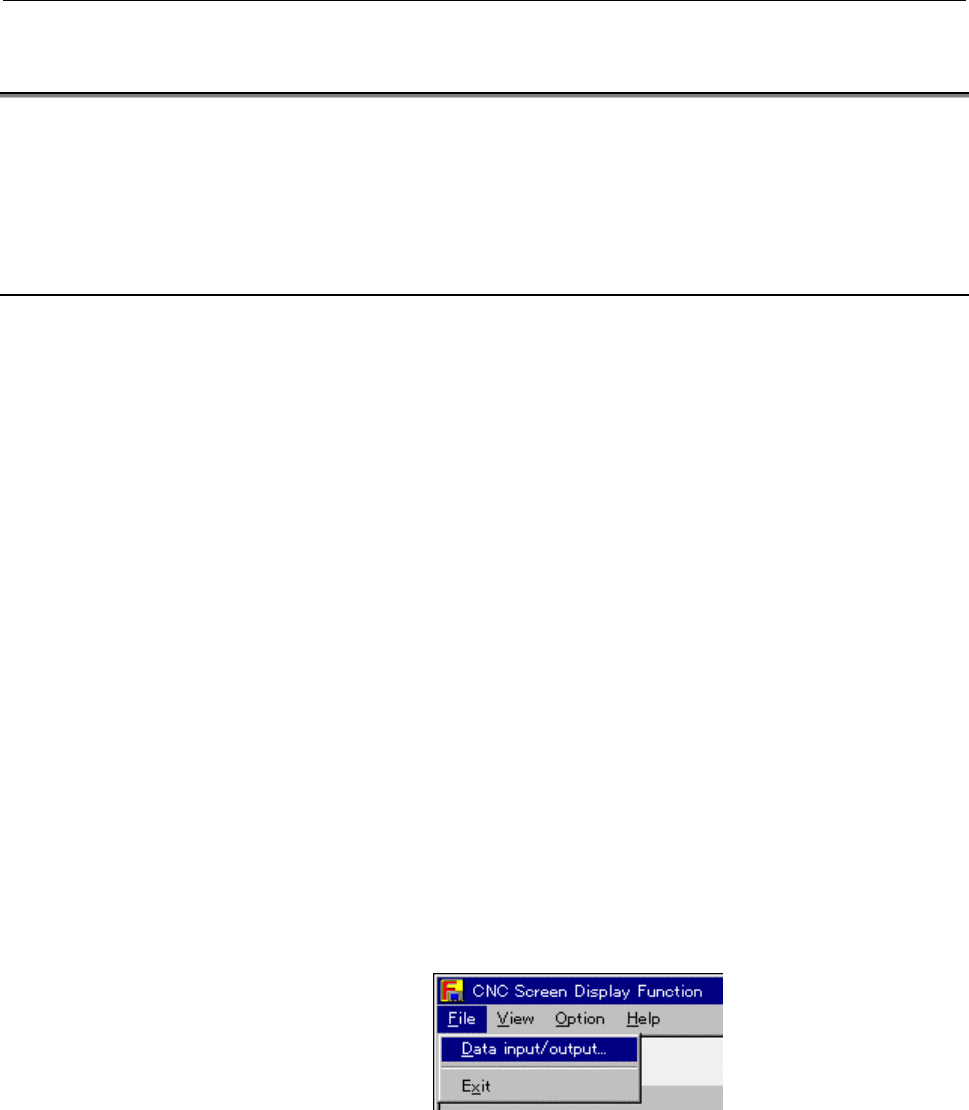

1. Choose [Data input/output...] from the submenu of [File] in
the menu bar.
