PROGRAMMING20. AXIS CONTROL FUNCTIONS

B–63514EN/01

368

It is possible to change the operating mode for two or more specified axes

to either synchronous operation or normal operation by an input signal

from the machine.

Synchronous control can be performed for up to one pair of axes,

according to the parameter setting (parameter No. 8311).

The following operating modes are applicable to machines having two

tables driven independently by separate control axes. The following

example is of a machine with two tables driven independently by the Y

axis and V axis. If the axis names and axis sets that are actually being used

differ from those in the example, substitute the actual names for those

below.

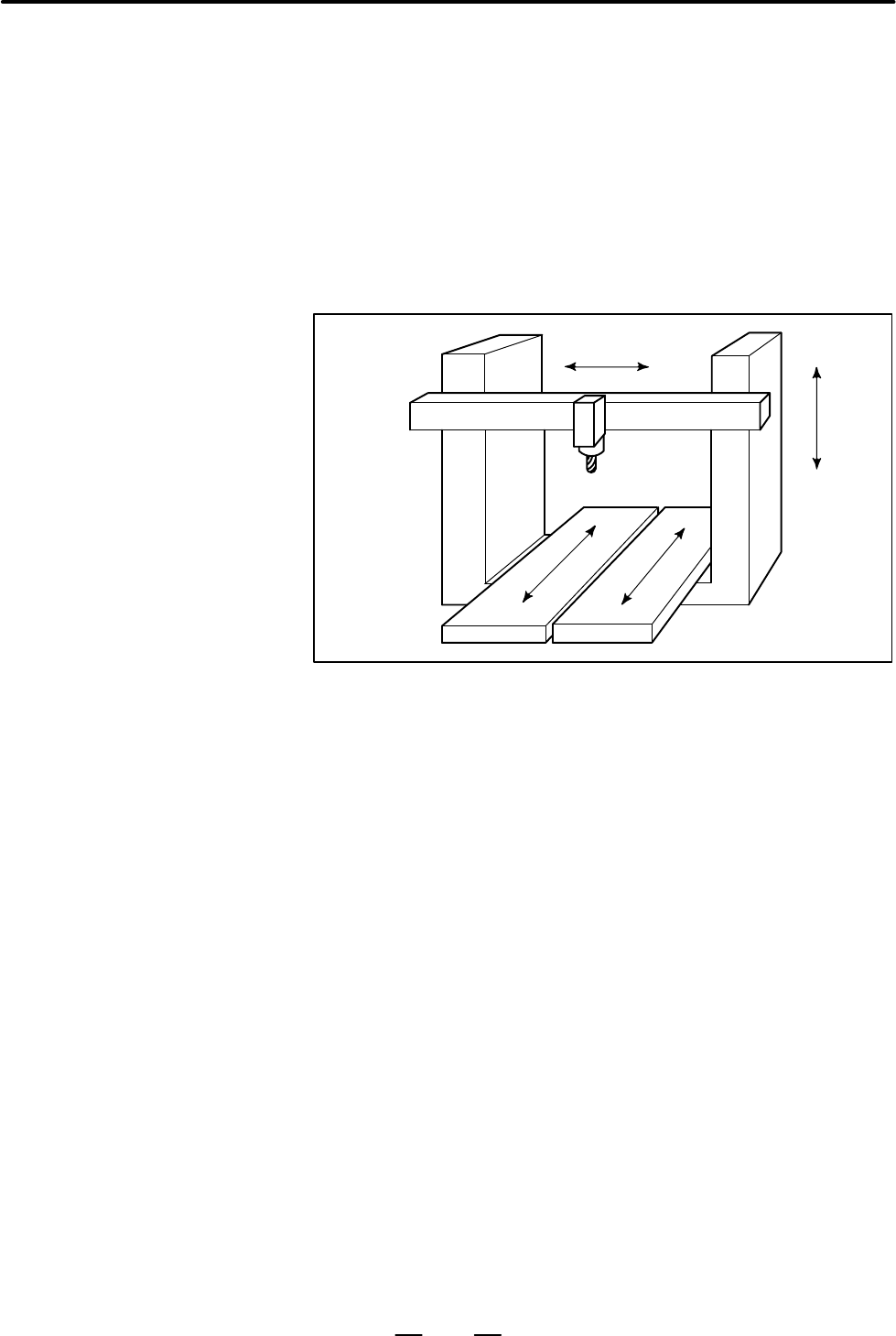

Fig. 20.1 Example of axis configuration of the machine operated

by simple synchronous control

This mode is used for, for example, machining large workpieces that

extend over two tables.

While operating one axis with a move command, it is possible to

synchronously move the other axis. In the synchronous mode, the axis

to which the move command applies is called the master axis, and the axis

that moves synchronously with the master axis is called the slave axis.

In this example, it is assumed that Y axis is the master axis and V axis is

the slave axis. Here, the Y axis and the V axis move synchronously in

accordance with program command Yyyyy issued to the Y axis (master

axis).

Synchronous operation here means that the move command for the master

axis is issued simultaneously to both the servo motor for the master axis

and that for the slave axis. In synchronous operation, the servo motor for

the slave axis is not compensated for the deviation which is always

detected between the two servo motors.

Deviation alarms are also not detected. Synchronous operation is

possible during automatic operation, jog feed, manual handle feed using

the manual pulse generator, and incremental feed, but is not possible

during manual reference position return.

20.1

SIMPLE

SYNCHRONOUS

CONTROL

Explanations

D Synchronous operation
