MAINTENANCE

B–63514EN/01

1. METHOD OF REPLACING BATTERY

665

The battery is connected in either of 2 ways as follows.

Method 1: Attach the lithium battery to the SVM.

Use the battery: A06B–6093–K001.

Method 2: Use the battery case (A06B–6050–K060).

Use the battery: A06B–6050–K061 or D–size alkaline

battery.

Method Item

Ordering

specification

Method 1 Battery (Lithium battery) A06B–6093–K001

Method 2 Battery (4 pieces of D–size alkaline battery) A06B–6050–K061

Attach the lithium (A06B–6093–K001) battery to the amplifier.

[Attachment procedure]

(1)Check the item 1 to 3 of ”Replacement procedure”.

(2)In case of SVU–12 or SVU–20, remove the battery cover under the

servo unit grasping its left and right sides. In case of SVU–40 or

SVU–80, remove the cover attached on right side of the servo unit

grasping its upper and lower sides.

(3)Remove the battery from the servo unit.

(4)Replace the battery and connect the battery cable with the connector

CX5X or CX5Y of the servo unit.

(5)Mount the battery cover.

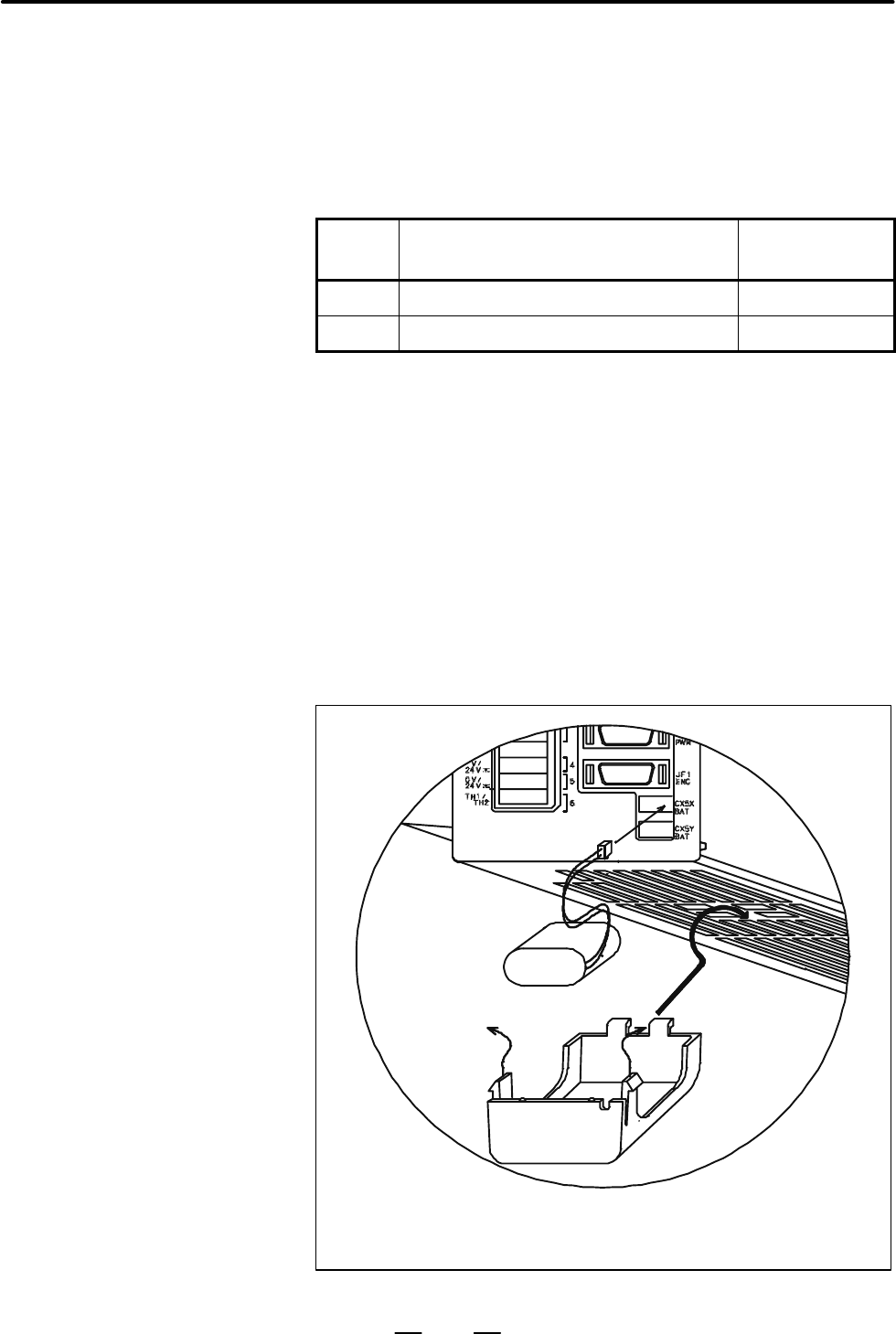

SVU-12, SVU-20

SERVO AMPLIFIER Beta

series

D Attach the lithium battery

to the amplifier.

(Method 1)
