1. PARAMETERS OF THE PRESS FUNCTION
B–63130EN/01

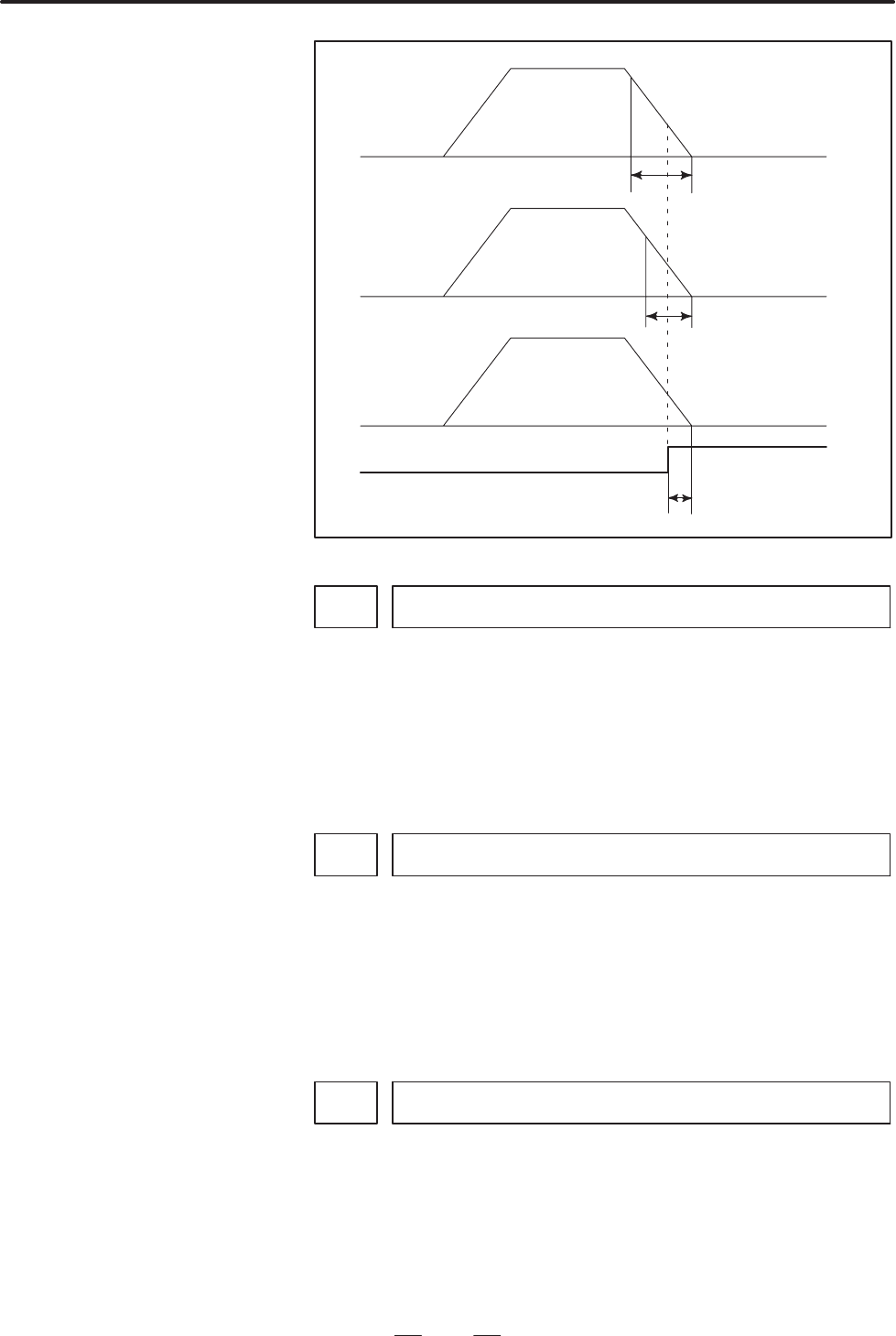

8
C–axis
positioning
Time set for the C–axis
X–axis
positioning
Y–axis
positioning
Time set for the Y–axis
Time set for the X–axis
PF
Address
16030
Time interval by which setting PF to 0 follows setting *PE to 0 in single–
cycle pressing
Data type: Byte
Unit of data: msec
Valid data range: 0 to 248
Parameter 16030 sets the time interval by which setting the PF signal to
start pressing to 0 follows setting the contact of the *PE signal to stop
pressing to 0 in single–cycle pressing.
Address
16031
Time interval between completion of positioning and the start of the next
block when PFL is set to 1
Data type: Byte
Unit of data: msec
Valid data range: 0 to 248
Parameter 16031 sets the time interval between completion of positioning
and the start of the next block when are PFL signal to lock the start of
pressing is set to 1.
Address
16032
Time interval by which setting of PF to 1 follows positioning in the forming
mode
Data type: Byte
Unit of data: msec
Valid data range: 0 to 248
Parameter 16032 sets the time interval by which setting the PF signal to
start pressing to 1 follows positioning in the forming mode (except for
nibbling).
