FANUC MODBUS/TCP Additional Manual Page 19

Additional Manual
A-90188E-01 SETTING 1.MODBUS/TCP SERVER FUNCTION
- 17 -

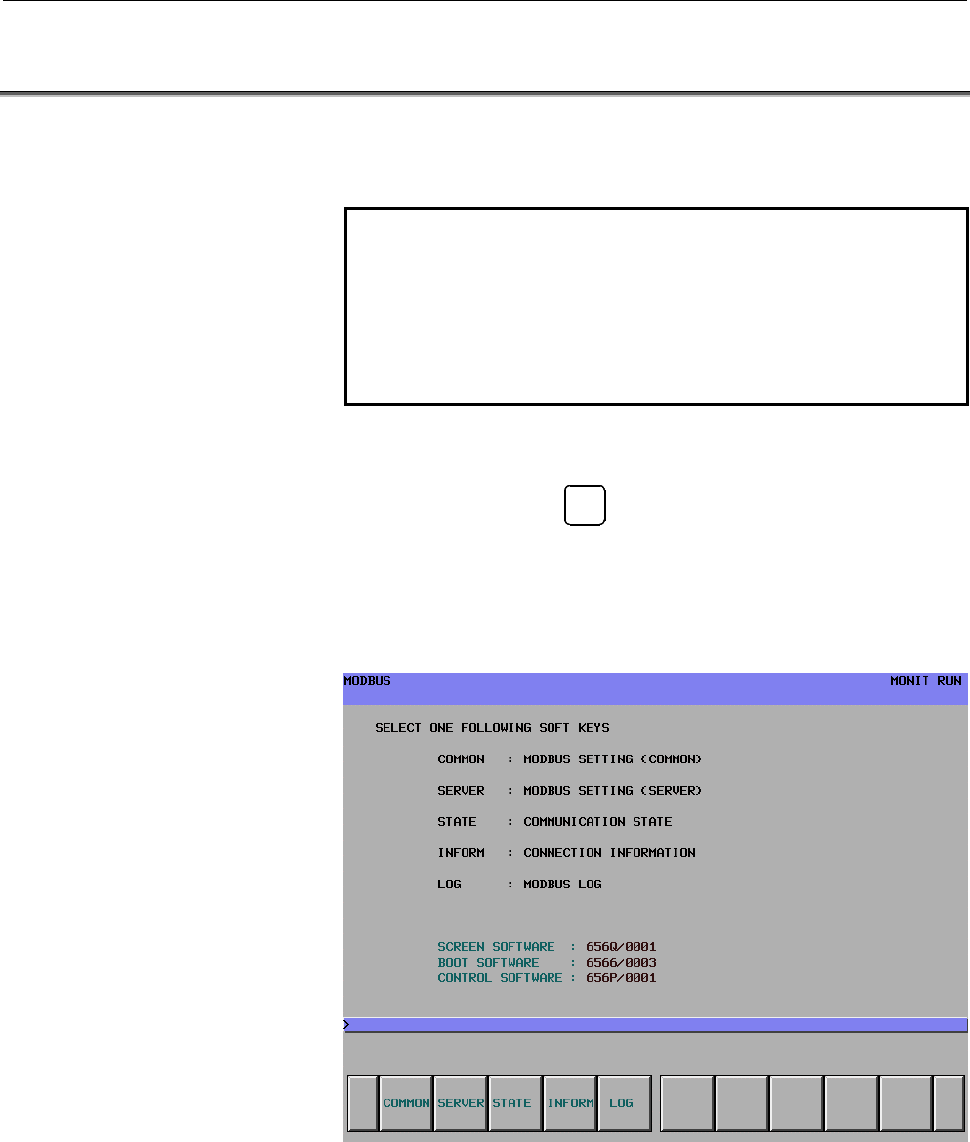

1.1 SETTING SCREEN OF MODBUS/TCP SERVER FUNCTION
MODBUS/TCP Server function has two setting screens; COMMON
screen and SERVER screen.
NOTE
When setting parameters, confirm that it is the MDI
mode.
After setting the parameters, be sure to power off
the CNC. The newly set parameters will be
reflected to the MODBUS/TCP Server function the
next time the CNC is powered on.
Procedure
1 Press function key .
2 Soft key [PMC] appears. (When soft key [PMC] does not appear,
press the continue key located at the right end of softkeys several
times.)
3 If you press soft key [PMC], PMC MAIN MENU screen appears.
4 Pres soft key [PMCDGN] and [I/OCHK] and then [MODBUS],
the following SCREEN1-1 appears.
SCREEN 1-1
