FANUC SERVO AMPLIFIER ßi series I/O Link option Additional Manual Page 38

Additional Manual
A
-77223E/02
図
番
名
称
ペ
｜
ジ
変更内容 設計 年月日
版
FANUC SERVO AMPLIFIER βi series
I/O Link option
DESCRIPTIONS
38 /

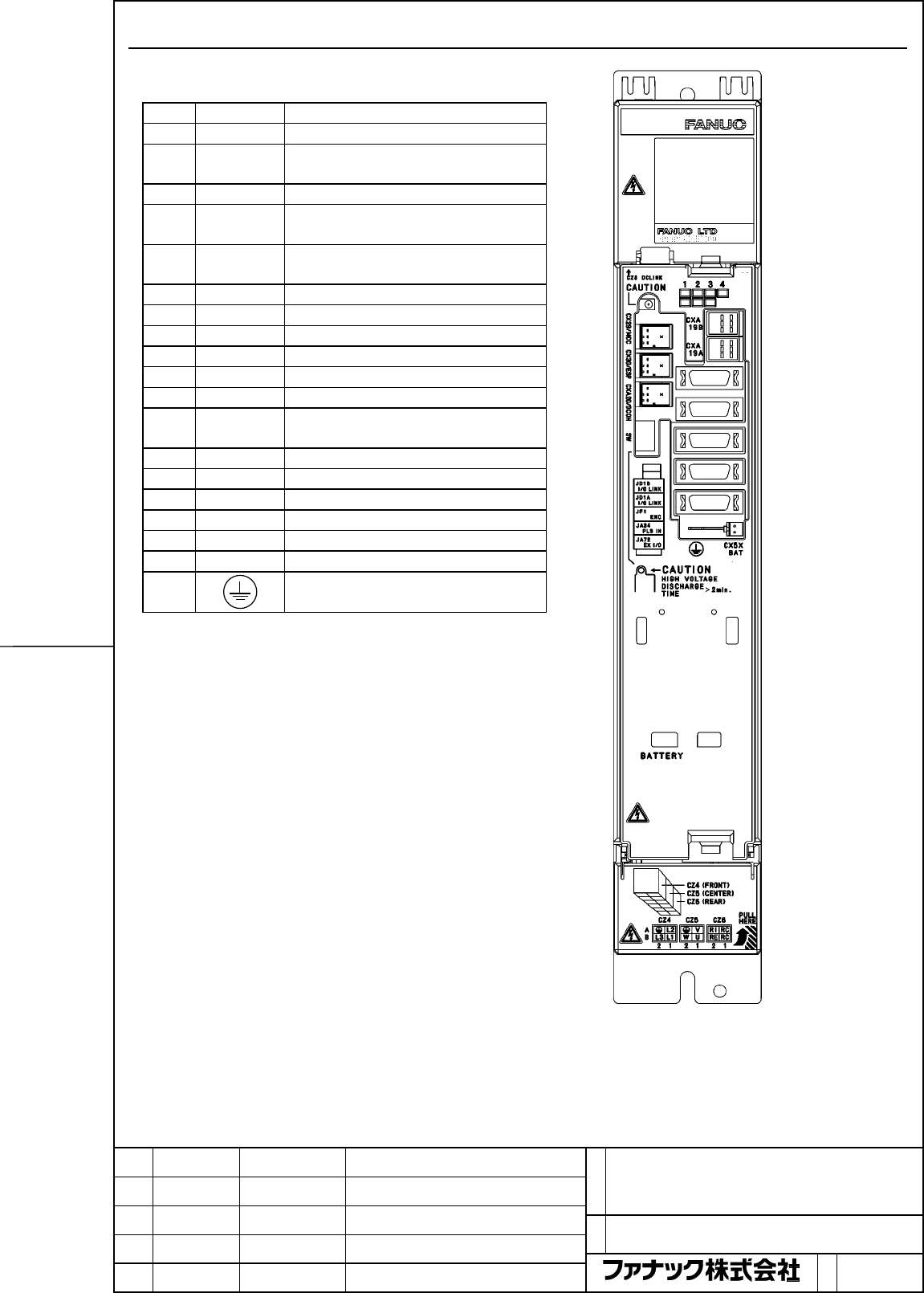

5.2.2 SVM1-40i and SVM1-80i
No. Name Remarks
1 DC link charge LED
2 CX29
Connector for main power
MCC control signal
3 CX30 ESP signal connection connector
4 CXA20
Regenerative resistor connector
(for alarms)
5 SW
Setting switch
（DC alarm level）
6 CZ4 Main power input connector
7 CZ5 Motor power connector
8 CZ6 Discharge resistor connector
9 LED Condition LED
10 CXA19B 24VDC power input
11 CXA19A 24VDC power output
12 JD1B
I/O Link connector (From previous
stage)
13 JD1A I/O Link connector (To next stage)
14 JF1 Pulsecoder connector
15 JA34 External pulse input connector
16 JA72 Built-in DI connector
17 CX5X Absolute pulsecoder battery
18 FG Terminal Grounding terminal of control unit
19
Tapped hole for grounding the flange
(1)
(2)
(3)
(4)
(5)
(6)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(
18
)
(
17
)
(19)
(7)
(8)
