FANUC SERVO AMPLIFIER βi series
I/O Link option
DESCRIPTIONS
40 /
NOTE
1 In case that the cable is prepared by MTB, total resistance of
5V and 0V must be less than 2Ω.
2 Pulsecoder side connector can accept maximum 0.5mm
2
(wire
construction 20/0.18 or 104/0.08, insulation outer diameter φ1.5
or less) wire and sheath diameter is φ5.7 to φ8.0. In case of
using thicker wire or cable, take measures described below.
The total resistance (round
trip) of 5 V and 0 V must be
less than 2
Ω
.

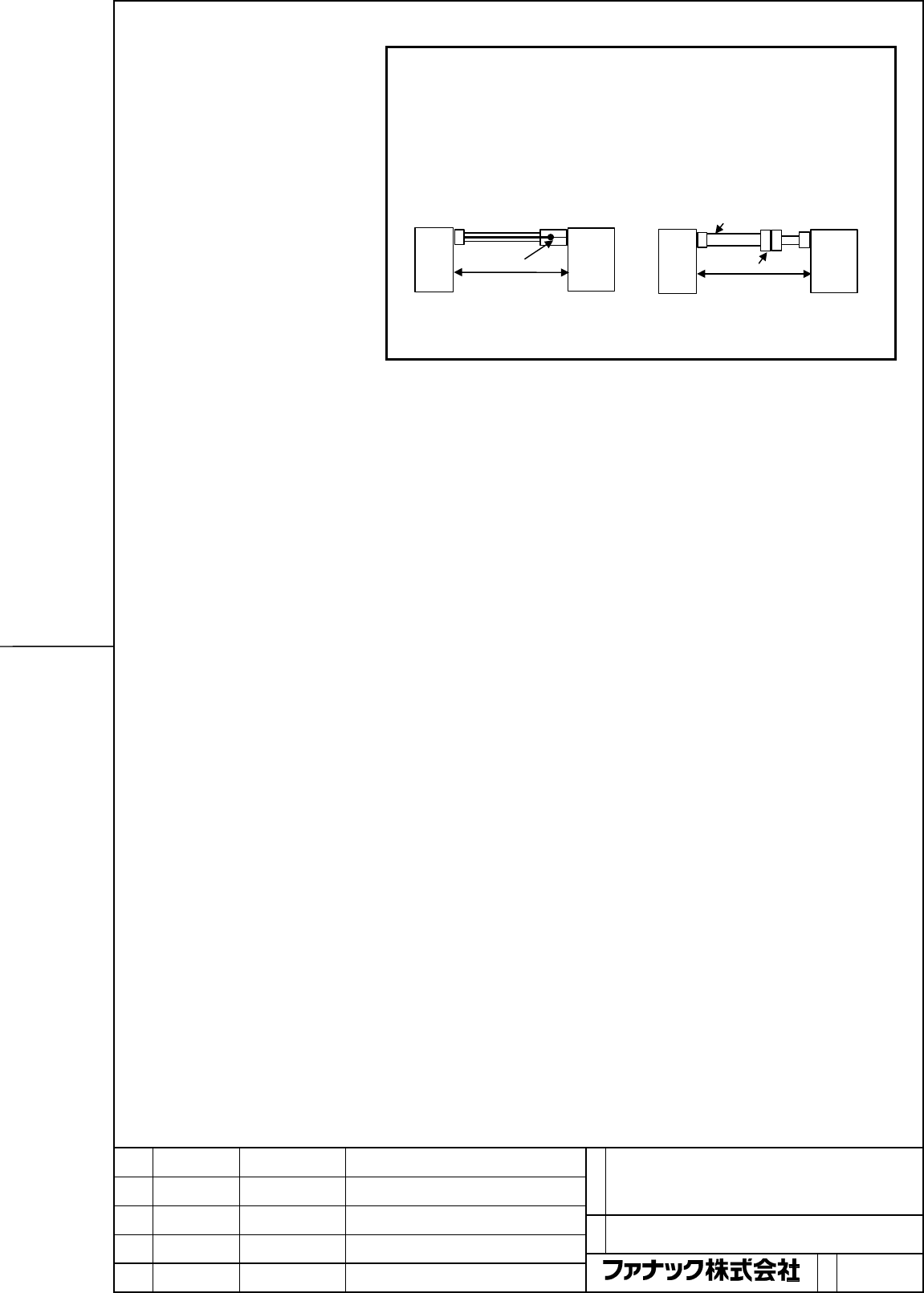

[Case 1] Cable conductor exceeds 0.5mm
2
. [Case 2] Sheath diameter of exceeds
φ
8.
Soldering or crimping
Servo motor
SVM
Connector
Cable thicker than
φ
8
SVM
Servo motor
The total resistance (
r
ound
trip) of 5 V and 0 V must be
less than 2
Ω
.
3
In case of incremental Pulsecoder, 6V is not necessary to
be connected.
• Crimp tool specification
A06B-6114-K201/JN1E : For 0.18 mm
2
or 0.3 mm
2
A06B-6114-K201/JN1D : For 0.18 mm
2
or 0.5 mm
2
• Connector kit specification
A06B-6114-K204/S : Straight plug (including a contact)
A06B-6114-K204/E : Elbow plug (including a contact)
• Recommended cable
A66L-0001-0479 : Flexible cable 28m or less long
A66L-0001-0488 : Flexible cable 50m or less long
Previous page
Next page
