After the manual handle mode of I/O Link β
（MD1(Y0#0)=0）,MD2(Y0#1)=0,MD4(Y0#2)=1）is selected, the host informs the
magnification of the manual handle generator (MP1(Y7#4),MP2(Y7#5)), and changes the
manual pulse counter.
After reading the varied amount of the manual pulse counter, I/O Link β operates the motor.
Actual pulses are that calculated pulses multiplied by the parameter (No.10809-10811).
Caution
Please be sure to transfer 16 bytes signals from the host (CNC) to I/O Link β.

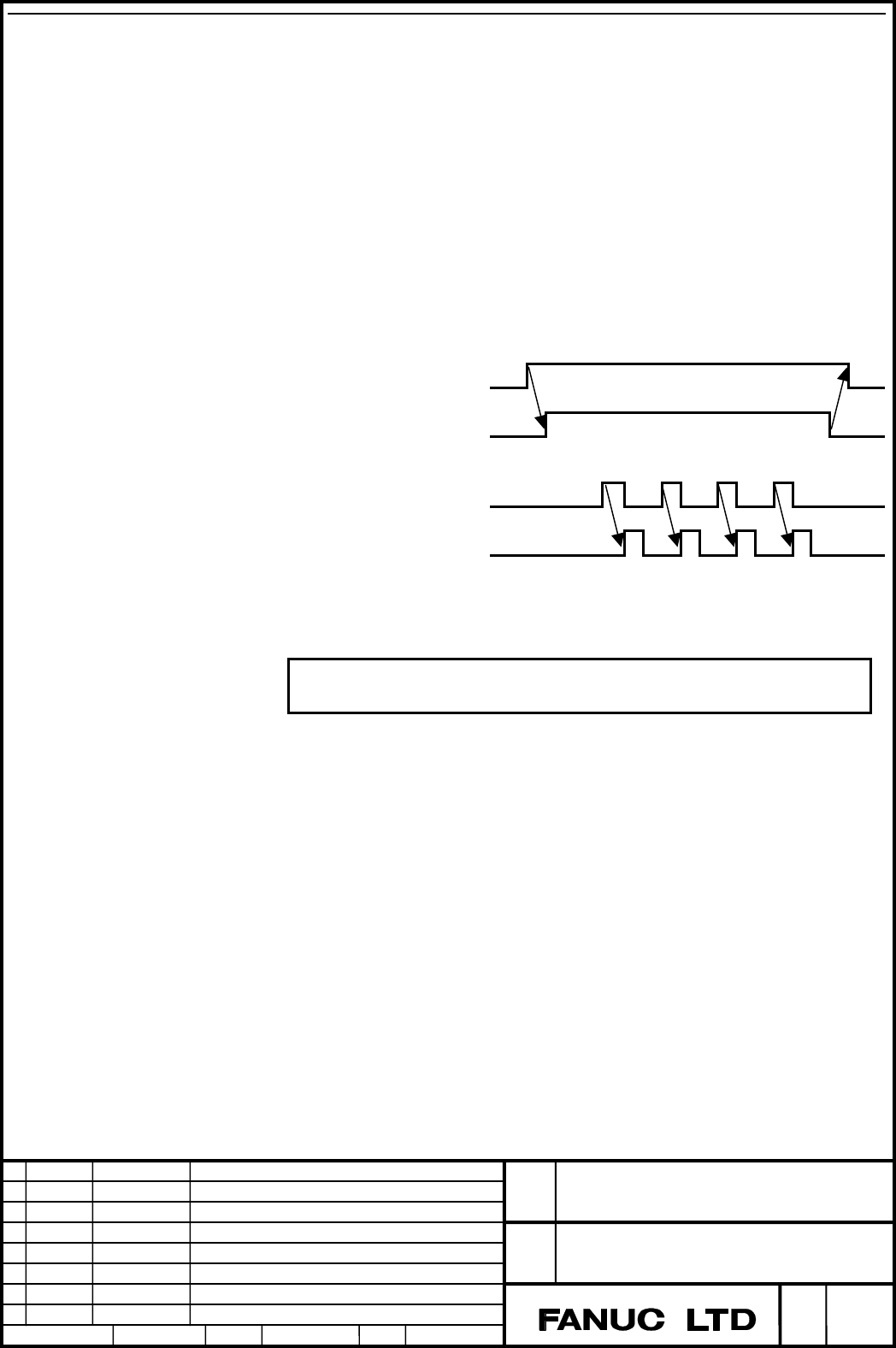

【Timing chart】
H：The management of the host
β
：The management
of the I/O Link β
H：Manual handle mode
MD1/2=0
MD4=1
H：Magnification
of manual handle
(MP1/2)
Manual pulse counter
β
：Motor driving
