5. CONNECTIONS
B–65152E/03
FANUC AC SPINDLE MOTOR α (HV) series
142
5
CONNECTIONS

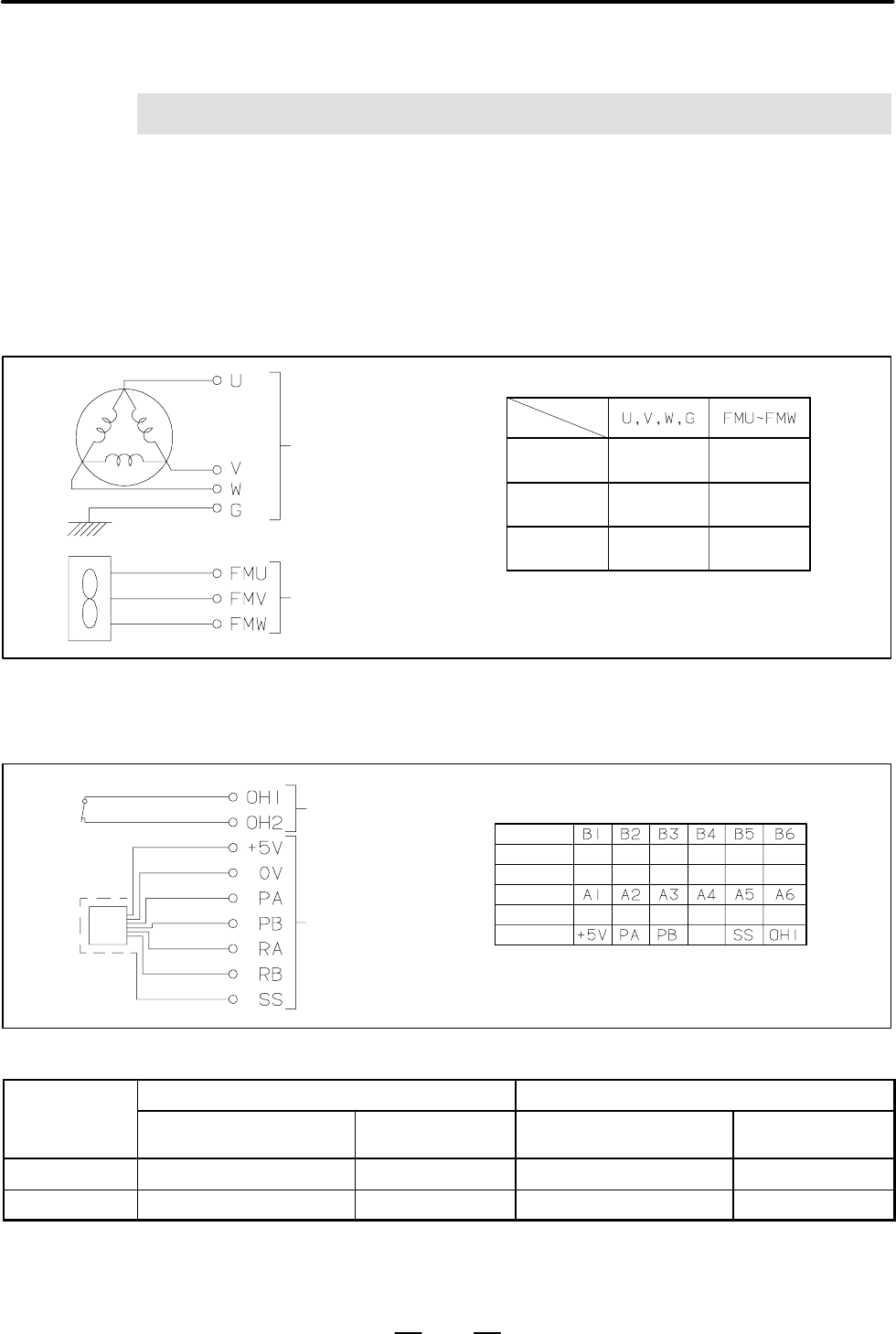

Cables of power line and fan motor are connected to the terminal block.
The M sensor (or MZ sensor) and overheat signals are connected to the
connector manufactured by AMP.
Connector housing and connector manufactured by AMP are attached to
the motor.
Primary
winding
Fan motor
Type of screws used in the terminal block
a6HV–
a15HV
Terminal
name
Motor model
a18HV,
a22HV
a30HV–
a60HV
M5 M4
M8
M10
M4
M3.5
NOTE1 Screws of high speed models are same as above.
2 Refer to FANUC SERVO AMPLIFIER α series
DESCRIPTIONS (B–65162E) for specifications of
connection cables.
Number
Color
Signal
Green
No
color
White Yellow
Red Black Blue
Number
Color
Signal
Overheat
signal
M sensor
Pin assignment in the connector
Connector: Manufactured by D–3000 series
Motor side Cable side
FANUC purchase
specification
AMP specification
FANUC purchase
specification
AMP specification
Housing A63L–0001–0535/121KDF 178964–6 A63L–0001–0460/121KD 178289–6
Contact A63L–0001–0456/ASMT 175288-2 A63L–0001–0456/ASM 1–175217–2
Crimping tool : 919601–1
Extractor : 914677–1
When M sensor is
provided
