AC SPINDLE MOTOR Alpha series Descriptions Page 32

Descriptions
4. NOTES ON INSTALLATION
B–65152E/03
BCATLTLON EOT TFC α
32
NOTE
3 Cable wiring
Follow the procedure below to install the cable.

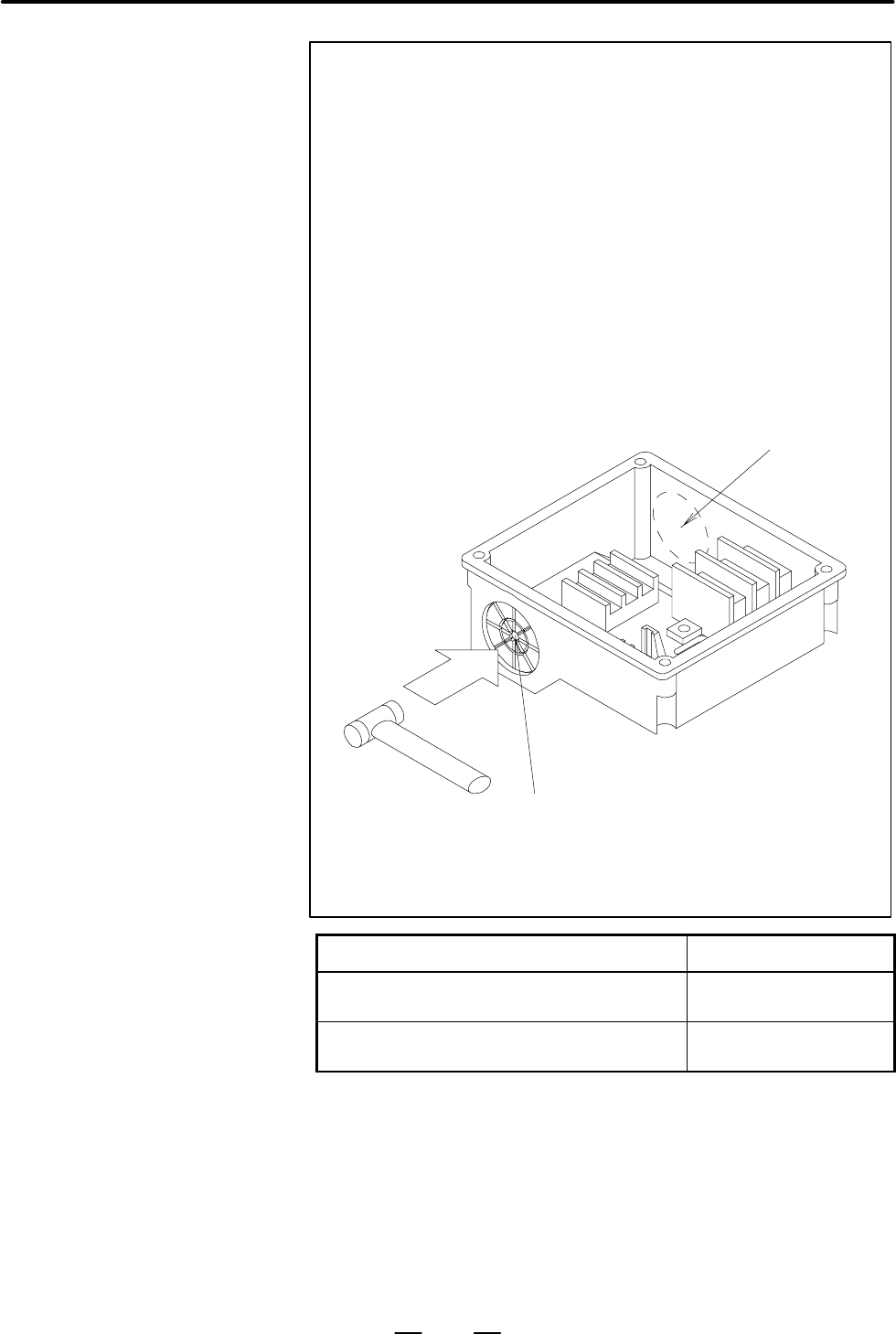

(1) Use a hammer to strike the portion for the cable hole on
the terminal box and open the hole.
This time, pay attention not to break the other place
except hole.
(In some models, it is not necessary to make a hole.)
(2) Thread the cable through a conduit . Connect the
conduit with the connector.
(3) Tighten the connector at the cable hole of the terminal
box using a nut.
(4) Connect each terminal appropriately in the terminal box
with screws.
When a hole once made is not used, purchase the
following rubber bushing and mount it at the hole.
Do not open a hole where it is not required.
Break the thin plastic plate to make a hole.
Model
Ordering number
a 1 to a 15, a P8 to a P22, a 6HV to a 15HV,
a C1 to a C15
A06B–0754–K001
a 18, a 22, a P30, a P40, a P50, a 18HV,
a 22HV, a C18, a C22
A06B–0731–K001
High speed models are same as above.
