B-64044EN/01 CONNECTION 1.CONNECTING THE DeviceNet
- 45 -
1.4 CONNECTORS
Connector

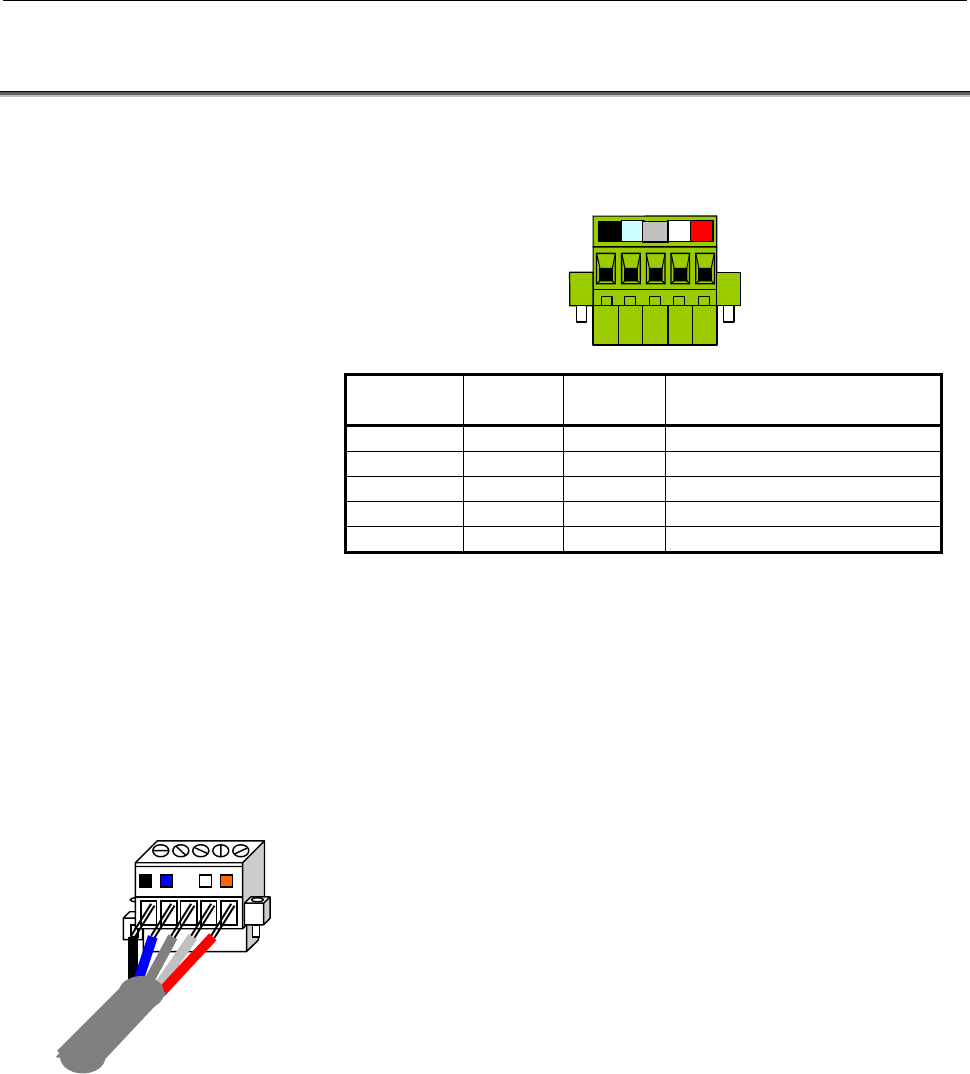

DeviceNet interface connector
1 2 3 4 5
Terminal
number
Signal
name
Color
code
Signal type
１
V- Black Signal cable - side
２
CAN L Blue Communication data Low side
３
SHIELD Bare Shield
４
CAN H White Communication data High side
５
V + Red Signal cable + side
Cable side connector:
Phoenix Contact
MVSTBW2,5/5-STF-5,08AU M (This is supplied with the
product.)
Applicable wire AWG24-12
Connection of a communication cable
Connect a communication cable to the DeviceNet interface connector,
as described below.
(1) Strip off the sheath of the cable about 30 mm and remove the
unnecessary shield.
(2) Remove the aluminum tape covering the signal and power lines
and strip off the sheaths of the signal and power lines according
to the length of a crimp terminal.
(3) Twist each of the stripped signal and power lines and attach a
crimp terminal to it.
The following crimp terminal is recommended.
- Phoenix Contact AI Series (special tool ZA3)
(4) Loosen the cable fixing screw of the connector so a wire can
easily be inserted.
(5) Insert the shield line, signal lines, and power lines into the holes
of the connector terminal block so that the colors of the sheaths
of the shield line, signal lines, and power lines match those
indicated on the connector.
(6) Fix the lines by tighten the cable fixing screws of the connector.
Two thin-wire cables can be connected to the connector through
multi-dropped connection. In this case, two cables are inserted into
one hole of a terminal block. However, multi-dropped connection
cannot be used for thick-wire cables. Please use a T-branch tap.
