1.CONNECTING THE DeviceNet CONNECTION B-64044EN/01
- 48 -
1.6 CABLE CLAMP

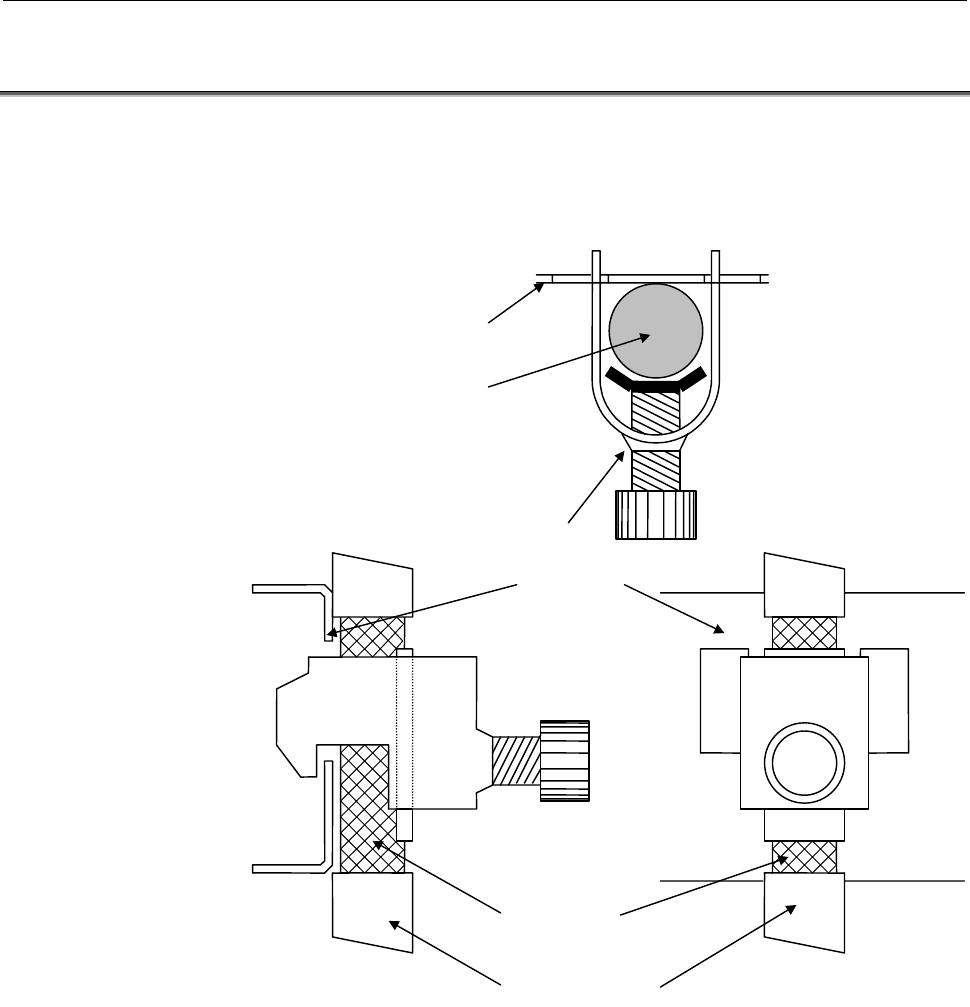

A cable clamp has a shielding effect in addition to supporting a cable.
As shown below, remove part of the cable sheath to expose the
shielding conductor, and clamp the exposed shielding portion against
the grounding plate with the clamping fixture.
Groundin
g
p
late
Cable
Cable clamp
Grounding
plate
Cable sheath
Shielding
