FANUC Series 30i/31i/32i -MODEL A
Overwrite to the same name file
on memory card
1.3 Operation
Procedure
The procedure to output data is as follows on the screen of each function.
1. Press soft key [PUNCH].
2. Press soft key [EXEC].
When the file of same name doesn't exist in the memory card, it is output
at this time.
3. When the file of same name exists in the memory card, soft key
[REWRITE] and [CAN] are displayed.
To overwrite the file, press soft key [REWRITE].
To cancel the output, press soft key [CAN].
Ex.) Outputting on parameter screen（In case of 7.2/8.4/10.4” display unit）
1. Press function key <SYSTEM>.
2. Press chapter selection soft key [PARAM].
3. Press the EDIT switch on the machine operator’s panel or enter
emergency stop state.
4. Press soft key [(OPRT)].
5. Press soft key [+] in case of 7.2 / 8.4” display unit.
6. Press soft key [PUNCH].
Display of the soft key is changed from Fig 1.3(a) to Fig1.3(b).
7. Press soft key [EXEC].
Outputting is executed by the default file name CNC-PARA.TXT
because the file name is not specified.
Display of the soft key is changed from Fig 1.3(b) to Fig1.3(c) and the
confirmation message is displayed when the file of same name exists in
the memory card.
When the file of same name doesn't exist in the memory card, it is
output at this time.
8. To overwrite the file, press soft key [REWRITE].
To cancel the output, press soft key [CAN].
If you want to change the file name and then output, please specify the
file name after operating 6 and then operate 7.

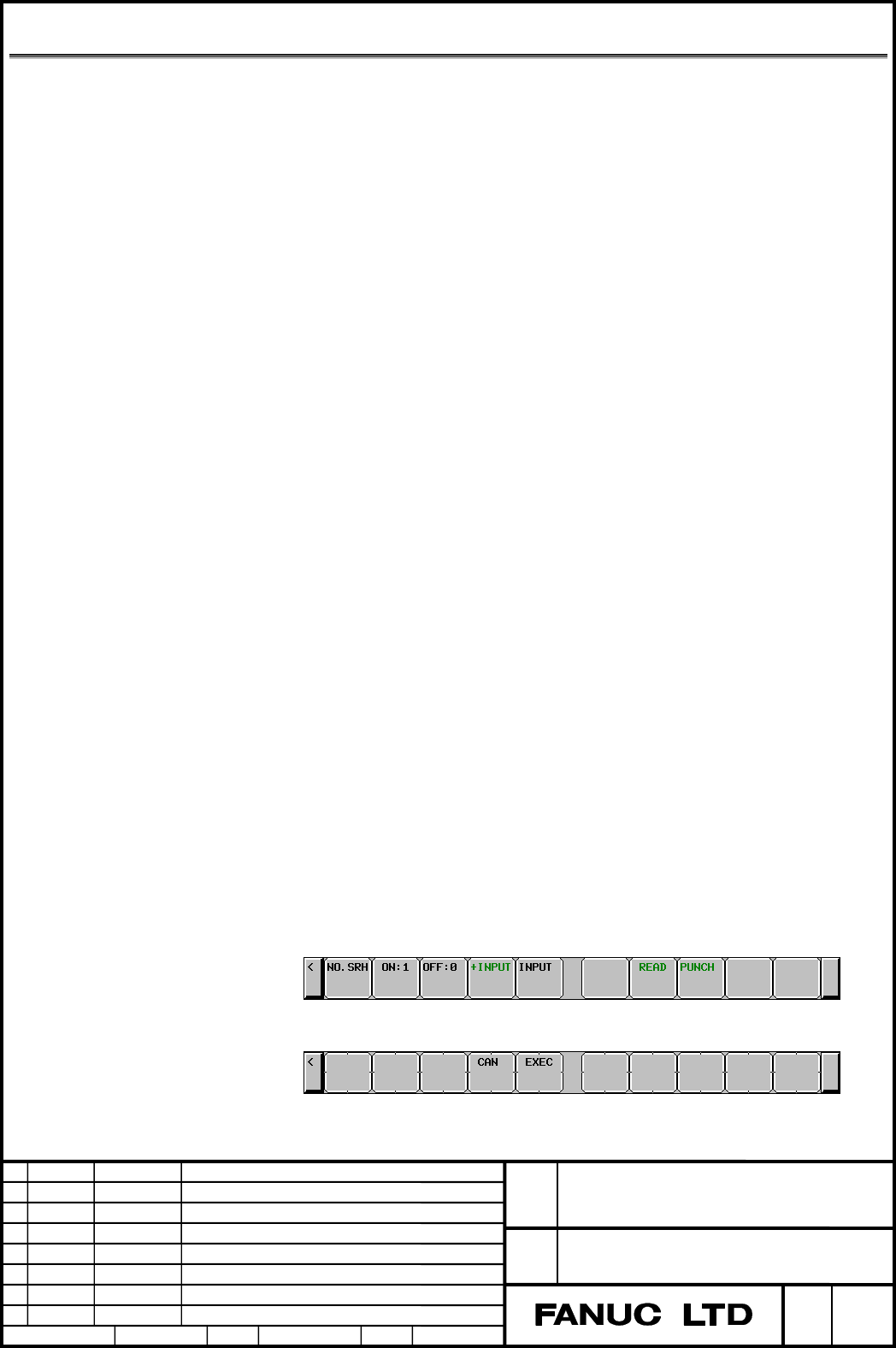

Fig1.3 (a) Display of soft key before pressing [PUNCH]
Fig1.3 (b) Display of soft key after pressing [PUNCH]
Previous page
Next page
