FANUC Series 30i/31i/32i -MODEL A Overwrite to the Same Name File on Memory Card Additional Manual Page 7
Additional Manual
A-90101E
Title
Draw
No.
Ed. Date Design Description
Date Aug..04.’05 Design. Apprv.
6/ 7
page
FANUC Series 30i/31i/32i -MODEL A
Overwrite to the same name file
on memory card

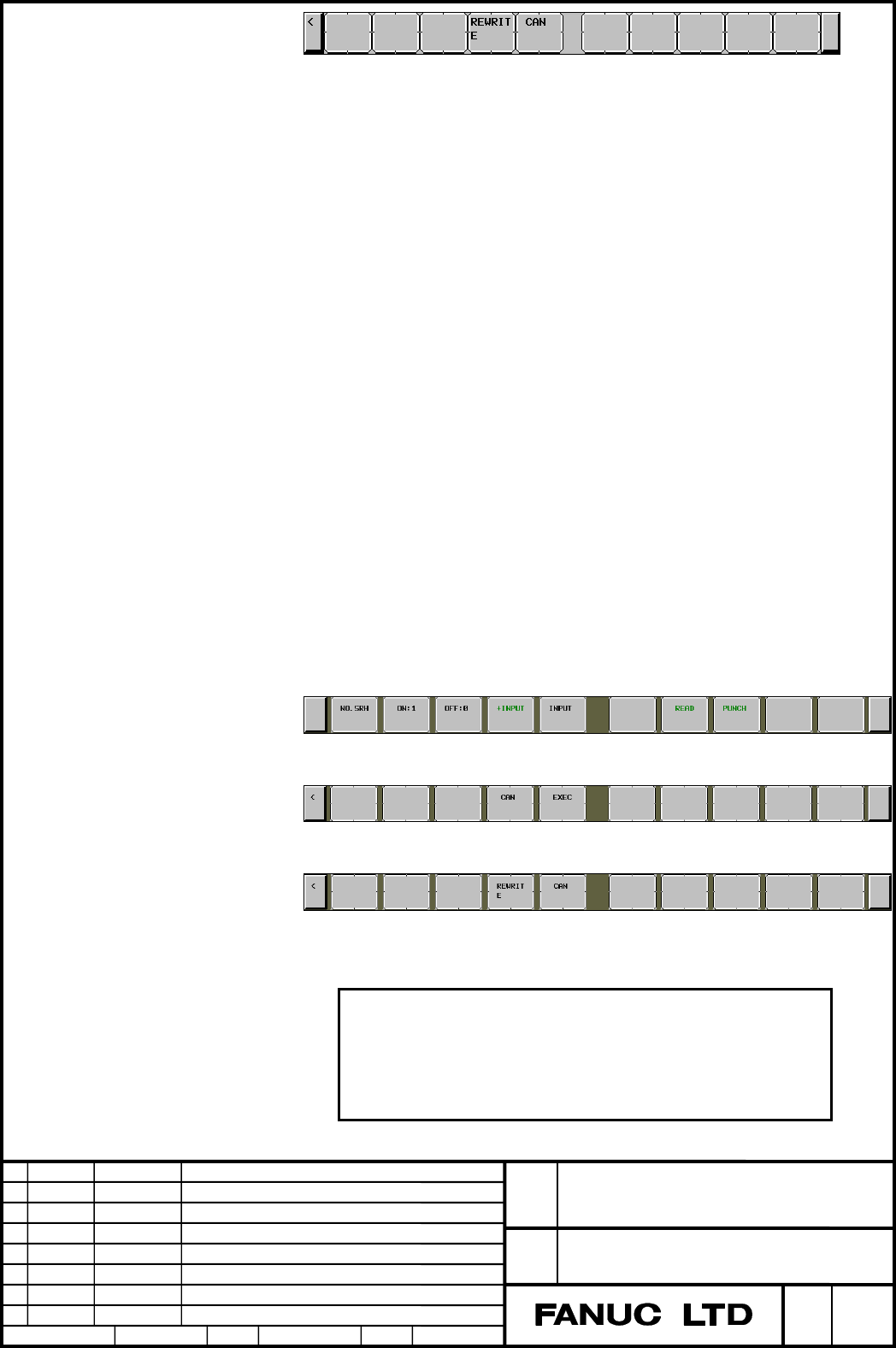

Fig1.3 (c) Display of soft key after pressing [EXEC]
Ex.) Outputting on parameter screen（In case of 15” display unit）
1. Press function key <SYSTEM>.
2. Press vertical soft key [PARAM].
3. Press the EDIT switch on the machine operator’s panel or enter
emergency stop state.
4. Press horizontal soft key [PUNCH].
Display of the horizontal soft key is changed from Fig 1.3(d) to
Fig1.3(e).
5. Press horizontal soft key [EXEC].
Outputting is executed by the default file name CNC-PARA.TXT
because the file name is not specified.
Display of the horizontal soft key is changed from Fig 1.3(e) to
Fig1.3(f) and the confirmation message is displayed when the file of
same name exists in the memory card.
When the file of same name doesn't exist in the memory card, it is
output at this time.
6. To overwrite the file, press soft key [REWRITE].
To cancel the output, press soft key [CAN].
If you want to change the file name and then output, please specify the
file name after operating 4 and then operate 5.
Fig1.3 (d) Display of soft key before pressing [PUNCH]
Fig1.3 (e) Display of soft key after pressing [PUNCH]
Fig1.3 (f) Display of soft key after pressing [EXEC]
Note
Warning message "OVERWRITE FAILED" is displayed and the
output is canceled at the following case.
- The file which is overwritten has READ ONLY attribute
- When the memory card had been removed while confirming
