2 CPU 3-path Control Function Specifications Supplement to Manual Page 2

Supplement to Manual
FANUC Series 16i-TA
2 CPU 3-path control function
Specifications
A-63406E
08 00.09.01 T.Nakazato Modified (viii)
07 00.06.23 T.Nakazato Modified (vii) H. kochiya
01 97.04.09 T.Nakazato Newly registered T. Masuda
ED. DATE DESIG. DESCRIPTION
TITLE
DRAW.NO.
SHEET
1. General
3-path control function is the function to execute three independent machining at the same time.
This function is intended for the lathe which cuts the work at the same time on three tool posts.
The machining programs for each path are stored into program memories for each path.
Before automatic operation, select the machining program on each path at the first.
After selecting the machining program, the program can be executed independently on each path at the
same time. Moreover, the machining program for each path can be started at different time
independently.
When the all paths need to wait for one another during machining, the waiting function is available.
Only one CRT/MDI unit is provided for all paths. Therefore, the path selection signals must be selected
before operation. The display of the screen also depends on the path selection signals.

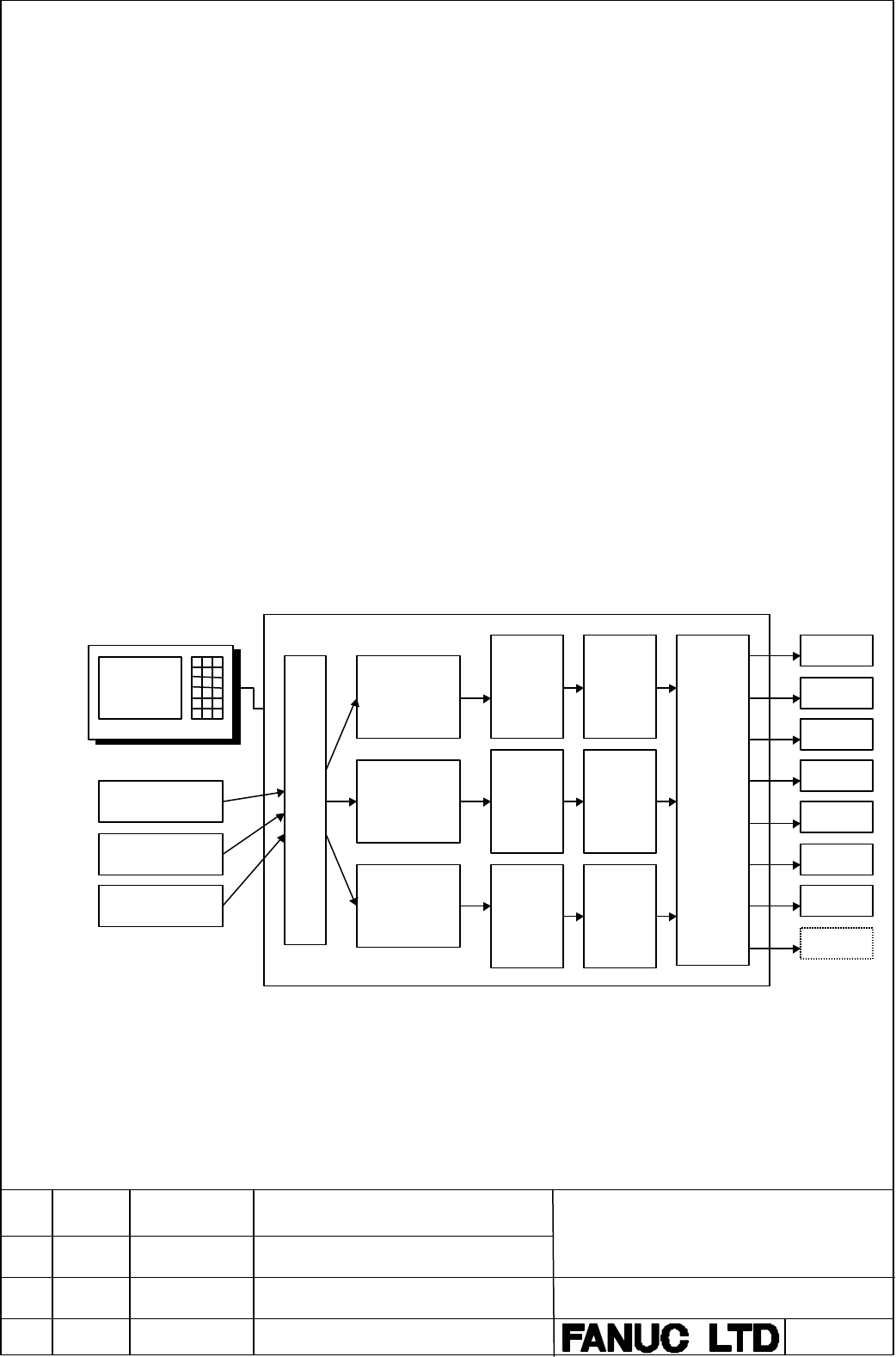

Program
memories
for path-1
Program
memories
for path-2
Program
memories
for path-3
Reader/punch interface
Prepara-
tion for
path-1
Prepara-
tion for
path-2
Prepara-
tion for
path-3
Inter-
polation
for
path-1
Inter-
polation
for
path-2
Inter-
polation
for
path-3
Axes
control
CNCCRT/MDI
Program for path-1
Program for path-2
Program for path-3
X
1
axis
Z
1
axis
Y
1
axis
X
2
axis
Z
2
axis
X
3
axis
Z
3
axis
