Series 0i - TA Operators manual Page 70

Operators manual

Page of 714

/ 714

PROGRAMMING4. INTERPOLATION FUNCTIONS

B–63504EN/01

The distance between an arc and the center of a circle that contains the arc

can be specified using the radius, R, of the circle instead of I, J, and K.

In this case, one arc is less than 180

°, and the other is more than 180° are

considered. An arc with a sector angle of 180

° or wider cannot be

specified. If Xp, Yp, and Zp are all omitted, if the end point is located at

the same position as the start point and when R is used, an arc of 0

° is

programmed

G02R ; (The cutter does not move.)

r=50mm

End point

Start point

r=50mm

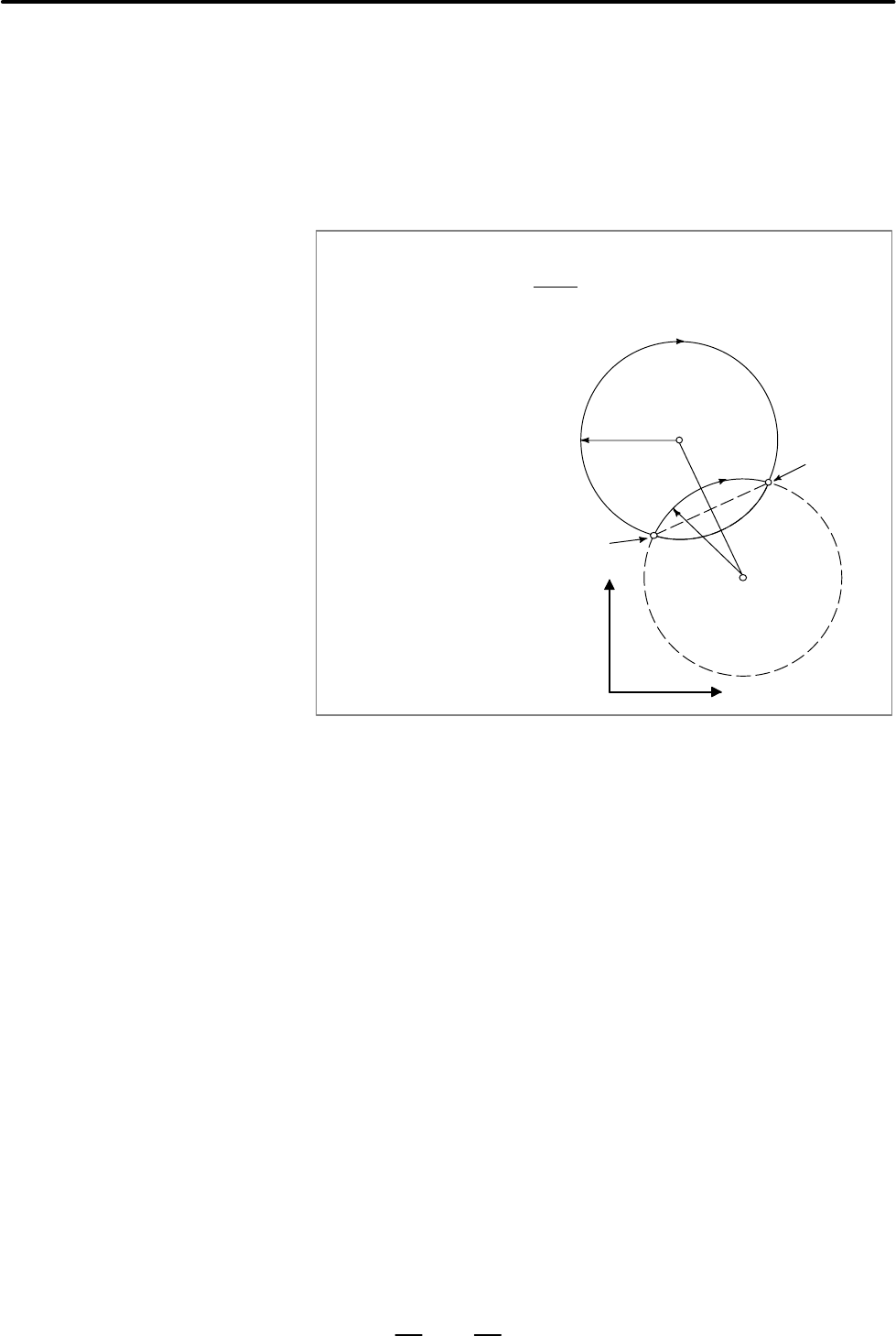

For arc (1) (less than 180°)

G02 W60.0 U10.0 R50.0

F300.0 ;

For arc (2) (greater than 180°)

An arc with a sector angle of 180°

or wider cannot be specified

within a single block.

(2)

(1)

D Arc radius
