POWER MATE i - D/H Maintenance manual Page 587

Maintenance manual

Page of 734

/ 734

B–63175EN/03

F. SETTING/DISPLAY/MAINTENANCE

USING THE MAIN UNIT OF

THE Power Mate i

APPENDIX

561

In normal operation, the following can be set by using the 7–segment LED

and pushbutton switch:

Explanation

D When the pushbutton switch is held down for about five seconds with the rotary switch set to 0, 0 blinks at high speed

on the 7–segment LED. Then, when the pushbutton switch is pressed again, primary selection mode explained below

is entered.

D In primary selection mode, numbers corresponding to operations appear one by one.

D When a desired number appears on the 7–segment LED, press the pushbutton switch. Then, the LED indication blinks

at high speed. Pressing the pushbutton switch again enters secondary selection mode.

D When the lowest level of each setting has been determined, the finally determined operation value stays indicated on

the LED. (When the pushbutton switch is pressed again, or an alarm is issued in this condition, the ordinary LED

indication state is restored.)

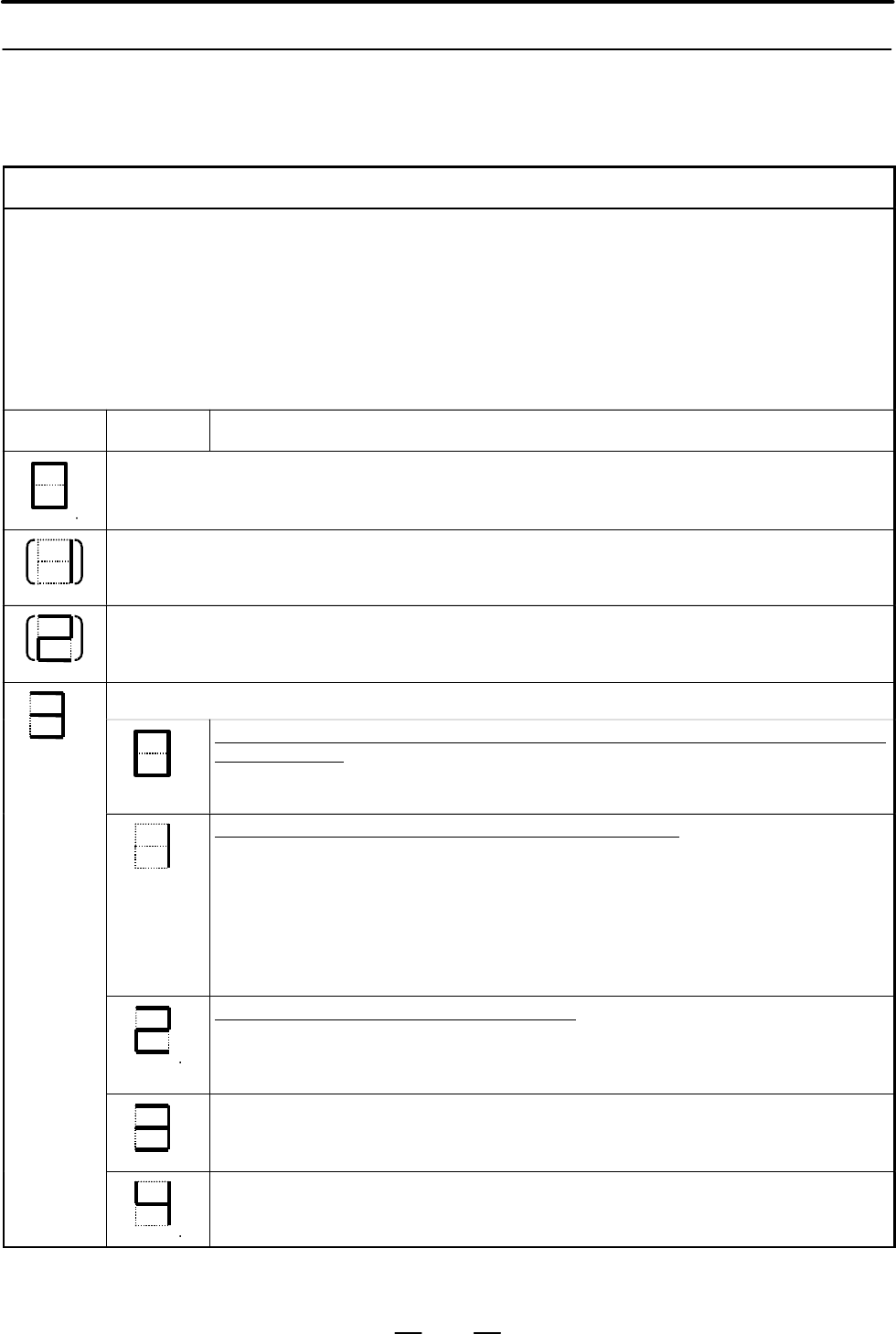

Primary Secondary Explanation

End of this operation

Reserved

Uses the following package software:

Cancels the RS–232–C channel setting made by the secondary selection explained below

(operation 1 to 4).

D To cancel the DPL/MDI operation package (for boot operation) setting made at power–up,

also select this number.

Uses the DPL/MDI operation package for RS–232–C channel 2.

D This setting is maintained even after power is turned off. When the setting needs to be

cleared, set 0 which is explained above.

D Once this setting is made, boot operation by the DPL/MDI operation package will be enabled

at the next and subsequent power–up operation. (For the operation method, refer to the

operator’s manual on the DPL/MDI operation package.)

D When 2 is already set in the secondary selection, an error (j) occurs. In such a case, clear

the setting, then set a value again.

Uses FAPT LADDER–II for RS–232–C channel 2.

D This setting is maintained even after power is turned off. When the setting needs to be

cleared, set 0 which is explained above. When 1 is already set in the secondary selection,

an error (j) occurs. In such a case, clear the setting, then set a value again.

Reserved

F.4.2

Setting in Normal

Operation
