Series 16i/18i/160i/180i/160is/180is - MA Operators manual Page 1082

Operators manual

Page of 1111

/ 1111

With the above parameter settings, the acceleration pattern will be shown as the following

figure. The acceleration is calculated according to the following figure in case speed is up to

2474 (mm/min), the acceleration is 7716 (mm/sec

) in case speed is from 2474 (mm/min) up

to 32000 (mm/min), and acceleration is calculated according to the following figure in case

speed is from 32000 (mm/min) up to 48000 (mm/min).

P1 P2

1000

2000

3000

4000

5000

6000

7000

8000

9000

0 8000 16000 24000 32000 40000 48000

Speed mm/min

Acceleration

mm/sec

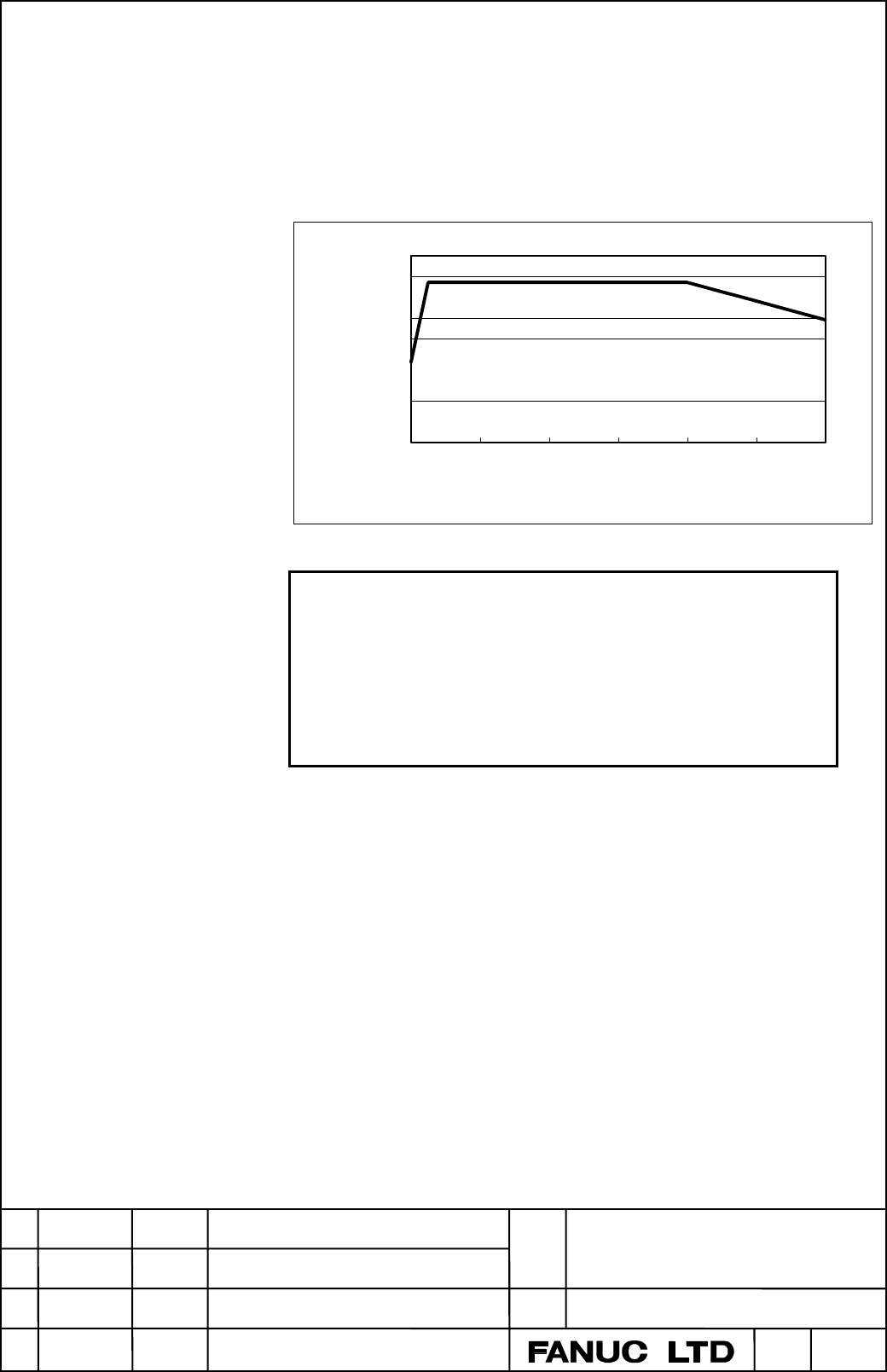

Fig. (f) Acceleration pattern with consideration of friction

NOTE

The values in the model αM30/4000i speed-torque

characteristic diagram are just typical ones. The

values will change depending on the digital servo

software, parameters, input voltage, and other

factors.

The optimum acceleration will, therefore, change due

to the characteristics of the machine.

9/15

PAGEEDT.

DATE

DESIGN

DESCRIPTION

TITLE

No.

FANUC Series 16i/18i/160i/180i/160is/180is-MA

OPERATOR’S MANUAL

Concerning the addition of

Optimum Torque acceleration/deceleration

B-63014EN/02-9

01 02.07.29 Newly Registered
