Series 16i/18i/160i/180i/160is/180is - MA Operators manual Page 346

Operators manual

Page of 1111

/ 1111

PROGRAMMING

B–63014EN/02

14. COMPENSATION FUNCTION

325

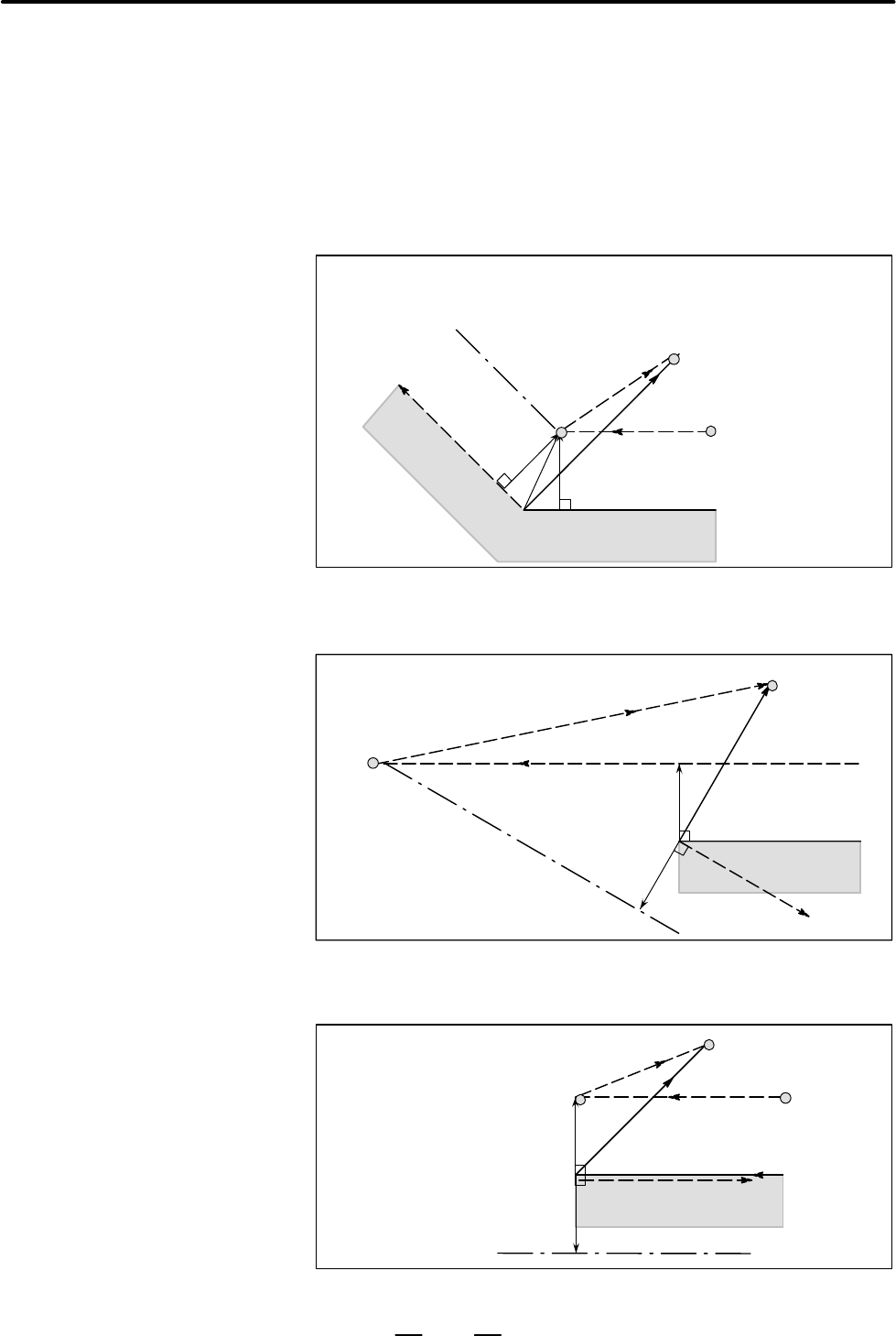

If a G41 or G42 block precedes a block in which G40 and I_, J_, K_ are

specified, the system assumes that the path is programmed as a path from

the end position determined by the former block to a vector determined

by (I,J), (I,K), or (J,K). The direction of compensation in the former block

is inherited.

E(a, b)

N1 (G42 mode) ;

N2 G40 Xa Yb I_ J_ ;

(I, J)

(G42)

Workpiece

Programmed path

Tool center path

In the N1 block, the tool center moves towards X.

In the N2 block, the tool moves towards E.

G40

In this case, note that the CNC obtains an intersection of the tool path

irrespective of whether inner or outer side machining is specified

(G42)

G40

(I, J)

Tool center path

Programmed path

When an intersection is not obtainable, the tool comes to the normal

position to the previous block at the end of the previous block.

(I, J)

G40

Tool center path

Programmed path

(G42)

D Block containing G40

and I_J_K_

The previous block contains

G41 or G42
