Series 16i/18i/160i/180i/160is/180is - MA Operators manual Page 756

Operators manual

Page of 1111

/ 1111

OPERATION8. DATA INPUT/OUTPUT B–63014EN/02

736

Data held in CNC memory can be saved to a memory card in MS–DOS

format. Data held on a memory card can be loaded into CNC memory.

A save or load operation can be performed using soft keys while the CNC

is operating.

Loading can be performed in either of two ways. In the first method, all

saved memory data is loaded. In the second method, only selected data

is loaded.

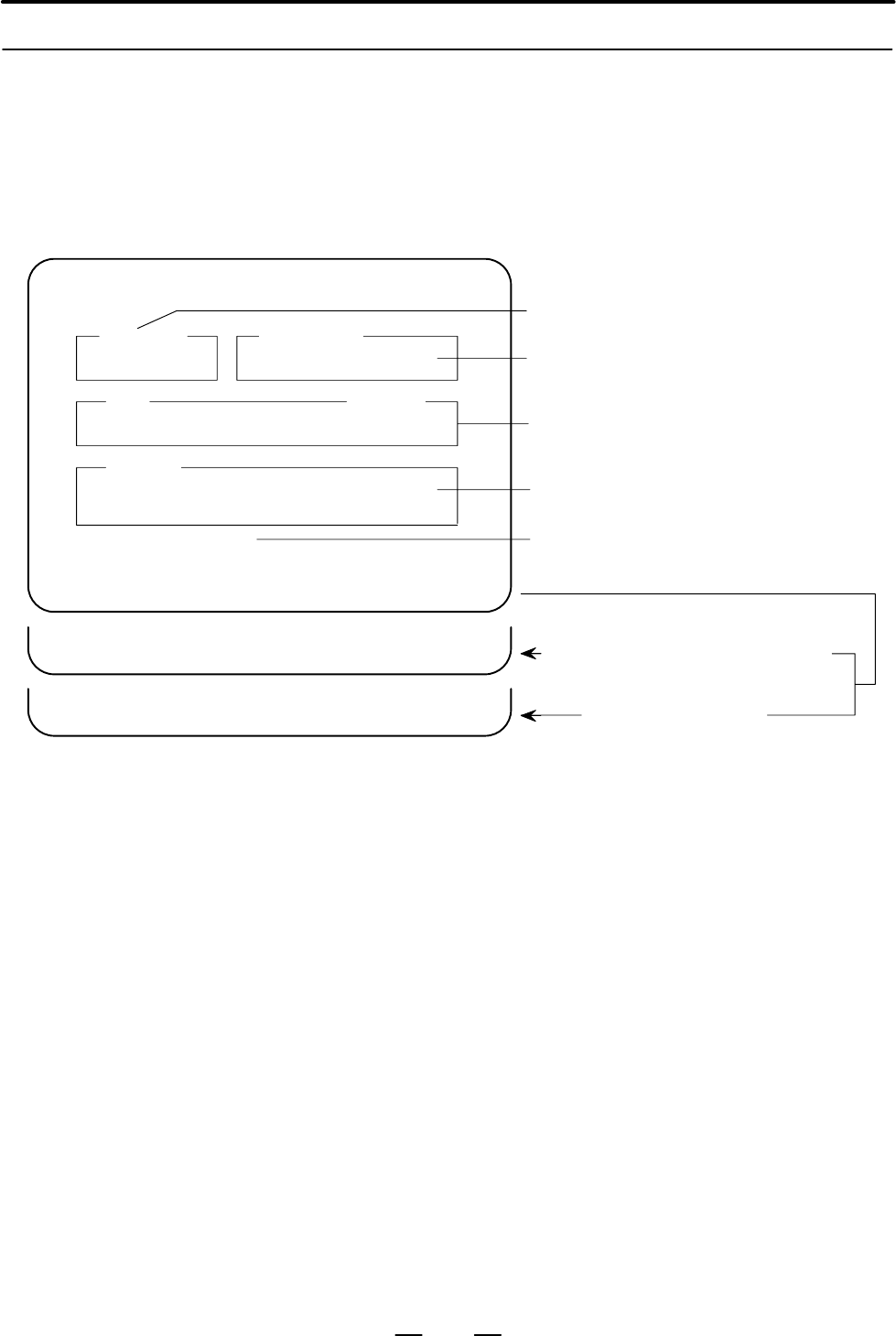

S 0 T0000

EDIT **** - - EMG- - 12: 15: 00

[FORMAT] [ SAVE ] [ LOAD ] [DELETE] [ ]

READ/PUNCH(M–CARD) O1234 N12345

*1 : CNC memory

CNC RAM

512K byte 2. 000M byte S- RAM

*2 : Memory card size and type

File

( 1/ 1)

SRAM0_5A. FDB 524288 byte 97/ 01/ 23

*3 : Names, sizes, dates, and number of

files recorded on the memory card

COMPLETED. *4 : Operation message

TURN OFF POWER.

Select : All data

*5 : Select a desired type of load data only

when [LOAD] is selected.

[ CAN ] [ ] [ ] [ CAN ] [ EXEC ]

When [FORMAT], [SAVE], or [DELETE]

is selected

[SELECT] [ ] [ ] [ CAN ] [ EXEC ]

When [LOAD] is selected

Memory card

Message

⋅ The CNC memory size (*1) is displayed at all times.

⋅ When no memory card is inserted, the message field (*4) displays

a message prompting the user to insert a memory card, but does not

display the memory card states (*2 and *3).

⋅ If an inserted memory card is invalid (if there is no attribute

memory, or if the attribute memory does not contain any device

information), the message field (*4) displays an error message, but

does not display the memory card states (*2 and *3).

8.10.7

Memory Card

Input/Output

Contents Summary of Series 16i/18i/160i/180i/160is/180is - MA Operators manual
