2.In case of 12 softkey type, tool compensasion memory A.
G10L77P3; Customization of the tool management data table
screen
N1 R1; No. 1 is No.
N2 R2; No. 2 is TYPE-NO.
N3 R3; No. 3 is MG.
N4 R4; No. 4 is POT.
N5 R5; No. 5 is T-INFO.
N6 R6; No. 6 is L-COUNT.
N7 R7; No. 7 is MAX-LIFE.
N8 R8; No. 8 is NOTICE-L.
N9 R9; No. 9 is L-STATE.
N10 R10; No. 10 is No.
N11 R11; No. 11 is TYPE-NO.
N12 R12; No. 12 is MG.
N13 R13; No. 13 is POT.
N14 R11; No. 14 is S(Spindle speed).
N15 R21; No. 15 is D.
N16 R22; No. 16 is OFFSET-M.
N17 R80; No. 17 is CUSTOM0.
N18 R81; No. 18 is CUSTOM1.
N19 R-1; Terminated.
G11; Mode cancel

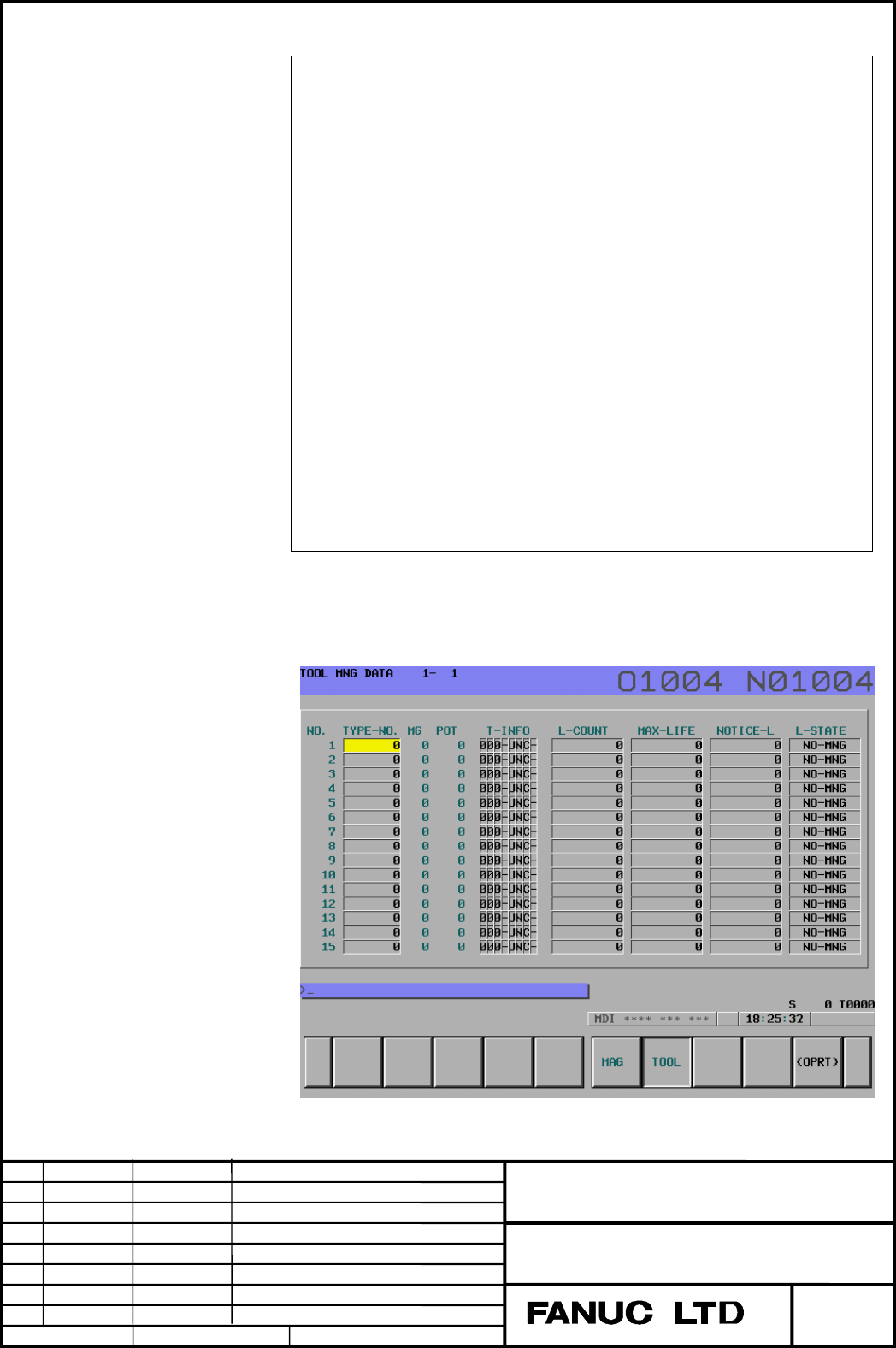

The tool management data table screen is displayed as order of “NO.,
TYPE-NO., MG, POT, L-INFO, L-COUNT, MAX-LIFE, NOTICE-L,
L-STATE” at the 1
st
page, “NO., TYPE-NO., MG, POT, S, D, OFFSET-M,
CUSTOM0, CUSTOM1” at the 2
nd
page.
Example2 page1
Edit
9/26
Data Signature
Description
FANUC Series 16i/18i/21i-MB/TB
Expansion Tool Management Function
A-79171
Drawing No.
Title
Page
Previous page
Next page
