AC SPINDLE MOTOR Built-in Descriptions Page 101

Descriptions

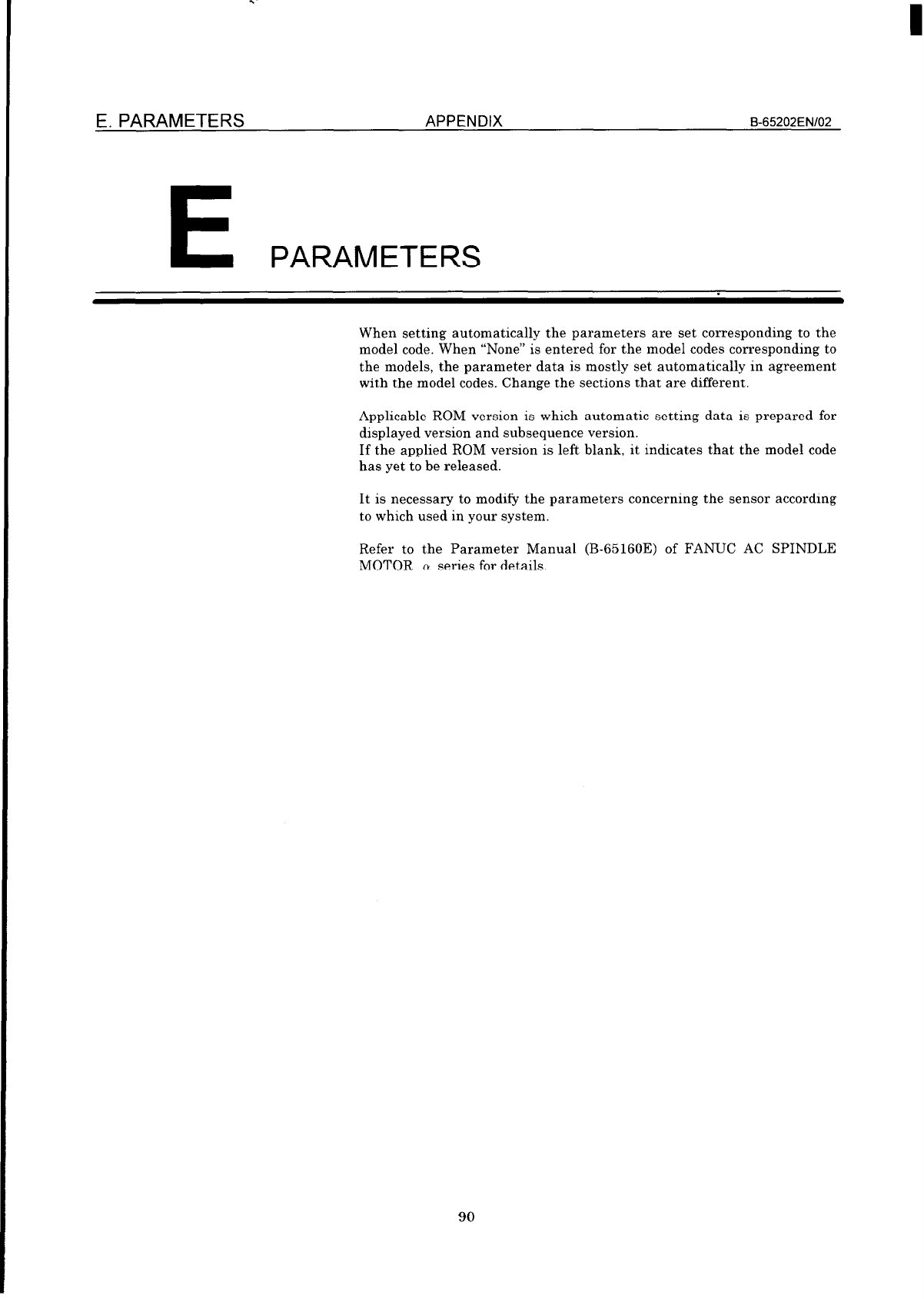

E. PARAMETERS
APPENDIX
B-65202EN102
E
PARAMETERS
When setting automatically the parameters are set corresponding to the
model code. When “None” is entered for the model codes corresponding to
the models, the parameter data is mostly set automatically in agreement
with the model codes. Change the sections that are different.
Applicable ROM version is which automatic setting data is prepared for
displayed version and subsequence version.
If the applied ROM version is left blank, it indicates that the model code
has yet to be released.
It is necessary to modify the parameters concerning the sensor according
to which used in your system.
Refer to the Parameter Manual (B-65160E) of FANUC AC SPINDLE
MOTOR n series for details.
