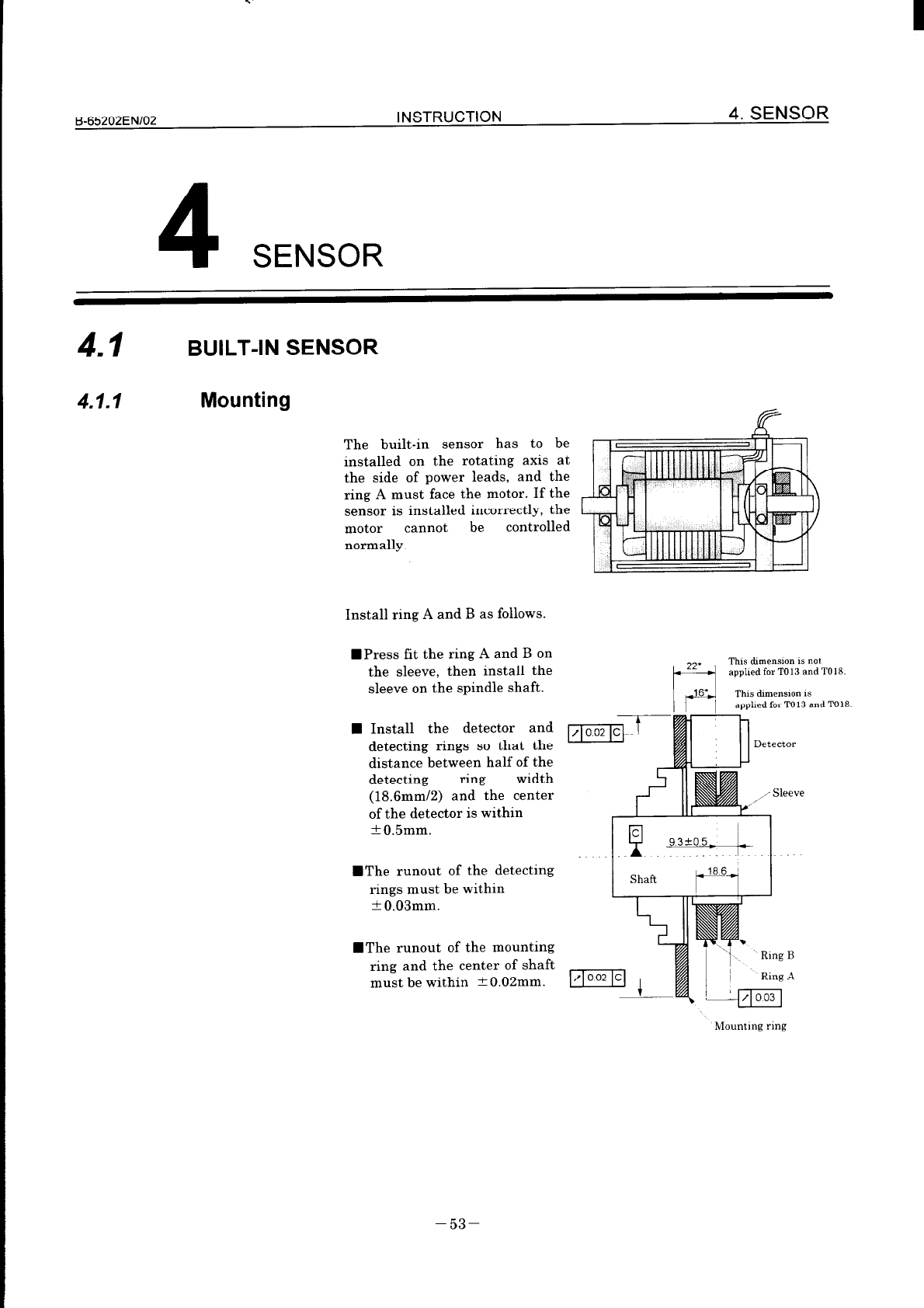

4. SENSOR
4
SENSOR
41
.
BUILT-IN SENSOR
4.1.1
Mounting
The built-in sensor has to be
installed on the rotating axis at
the side of power leads, and the
ring A must face the motor. If the
sensor is installed incorrectly, the
motor
cannot be
controlled
normally.
Install ring A and B as follows.
WPress fit the ring A and B on
the sleeve, then install the
sleeve on the spindle shaft.
Thn dimensmn IS not
apphed for TO13 and TO18
Ths &mensmn IS
apphedforT013 andTO
n Install the detector and
detecting rings so that the
distance between half of the
detecting
ring
width
(166mm/2) and the center
of the detector is within
k0.5mm.
n The runout of the detecting
rings must be within
* 0.03mm.
WThe runout of the mounting
ring and the center of shaft
must be within k 0.02mm.
Shaft
Rmg B
-53-
